926057 - Ariens 36" Power Brush, Subaru (SN: 000101 - 054999) Controls Parts Diagram

36" Power Brush, Subaru

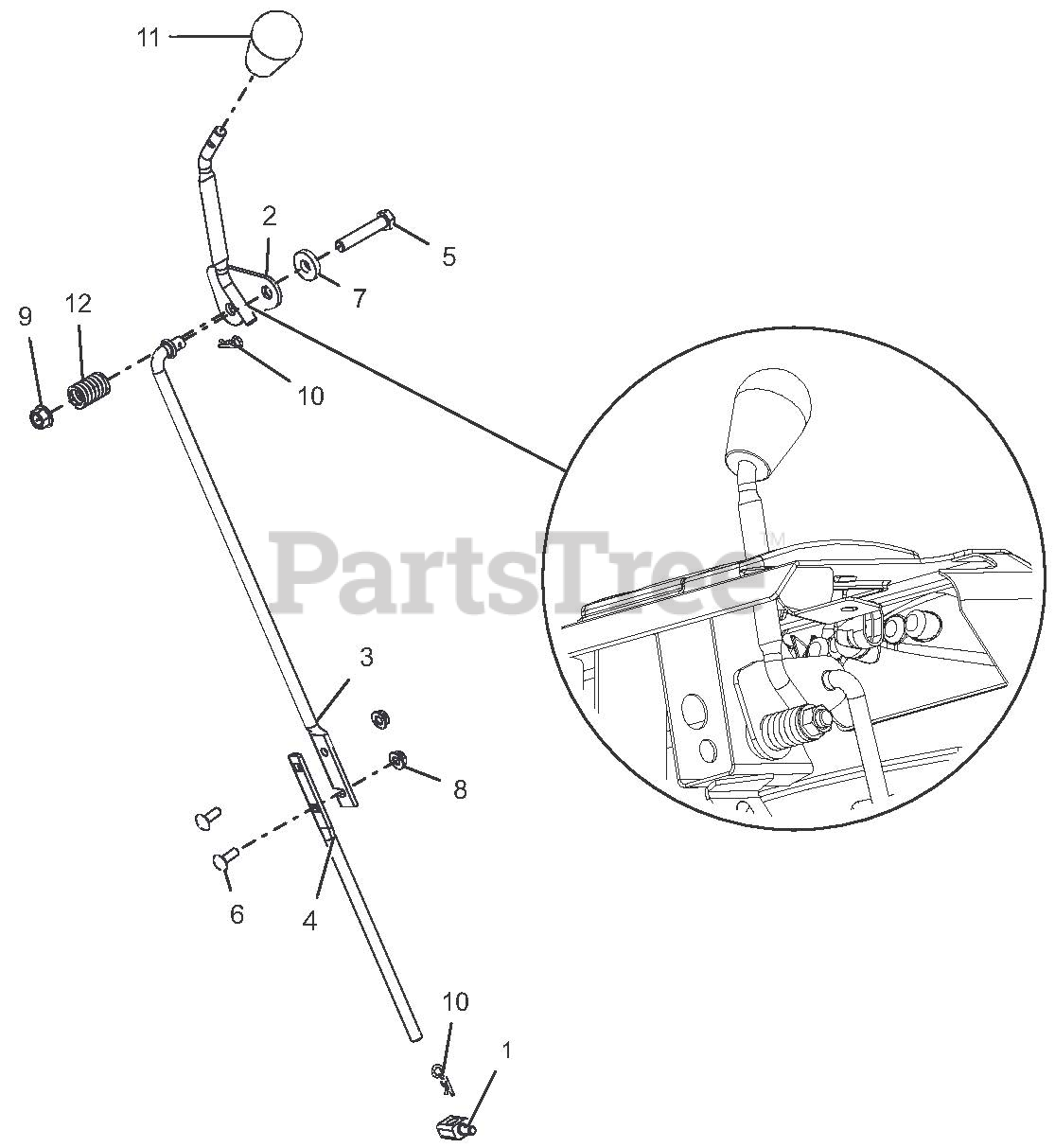

Controls Parts Diagram

  • Title
1

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

Note: (TRUNN)

$7.99

$

In Stock, Qty 14

0

2

Ariens 04320200

WELDMENT, CONTROL LEVER(SHIFT)

Note: (SHIFT)

$26.99

$

Usually ships in 4-12 days

0

3

Ariens 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

4

Ariens 04343867

ROD, SHIFT - LOWER

$24.99

$

Usually ships in 4-12 days

0

5

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

6

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

7

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 07500209

KNOB,SOFT TEARDROP,PUSH-ON GRY

$10.99

$

Usually ships in 4-12 days

0

12

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0
