926056 (PRO 28) - Ariens Hydro Pro 28" Track Snow Blower, Briggs & Stratton (SN: 000101 - 094999) Gear Case - Cast Iron Parts Diagram

Hydro Pro 28" Track Snow Blower, Briggs & Stratton

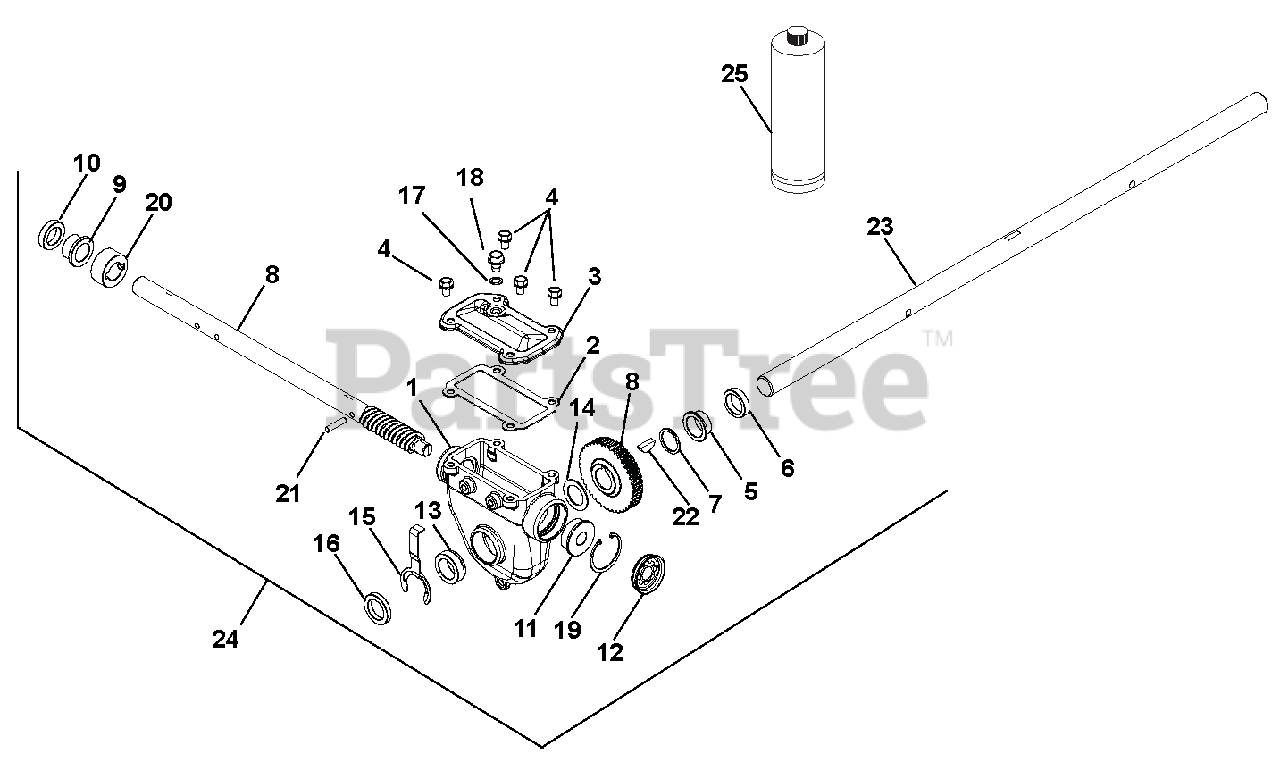

Gear Case - Cast Iron Parts Diagram

  • Title

1

Ariens 04276900

GEARCASE, LARGE MACHINED

$116.99

$

Usually ships in 4-12 days

0

2

Ariens 04282500

GASKET, TOP - LARGE GEARCASE

$3.99

$

In Stock, only 4 left!

0

3

Ariens 04280351

COVER, TOP - LARGE IRON

$20.99

$

Usually ships in 4-12 days

0

4

Ariens 05901509

BOLT, SEMS .31-18X.50 GR5 YWZC
(Superseded to 05902008)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 05501025

BSHG-FLG 1.006X1.128X.555X1.45

$5.99

$

In Stock, only 1 left!

0

6

Ariens 05600511

SEAL-OIL .999X1.375X.312 TBC29

$6.99

$

In Stock, Qty 17

0

7

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 52609600

ASSY, WORM SHAFT & GEAR

$105.99

$

Usually ships in 4-12 days

0

9

Ariens 05501024

BSHG-FLG .879X1.128X.75X1.45

$10.99

$

In Stock, only 1 left!

0

10

Ariens 05600512

SEAL-OIL .873X1.375X.312 TBC29

$6.49

$

In Stock, Qty 15

0

11

Ariens 05501027

BSHG-FLG .628X1.503X.58X1.725

$

$

Not available

12

Ariens 04302900

COVER, GEAR CASE 1.75"

$15.99

$

In Stock, only 4 left!

0

13

Ariens 05501033

BSHG-FLG LARGE, RIGHT

$9.99

$

In Stock, Qty 10

0

14

Ariens 06400332

WSHR-FL-STL 1.010X1.250X.068YZ
(Superseded to 06401134)

$3.99

$

In Stock, Qty 11

0

15

Ariens 04323700

BUSHING RETAINER, LARGE

$

$

Not available

16

Ariens 05600510

SEAL-OIL .999X1.500X.250 TBC29

$7.99

$

In Stock, Qty 20+

0

17

Ariens 06400920

WSHR-BND-SEAL .38X.75X.11 GALV

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07400110

@SCR-ROLOK .38-16X.50 HWH YWZC
(Superseded to 07400201)

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 05702100

RG-RTNG-INT 1.750X.062

$5.99

$

In Stock, only 1 left!

0

20

Ariens 04277100

THRUST COLLAR, .875"ID SLIPFIT

$9.49

$

Usually ships in 4-12 days

0

21

Ariens 05800208

PIN-STR .250X1.12 6150

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 06608800

KEY-WDRF .25X.875 HRD #A

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 03392400

SHAFT, RAKE-28"

Note: (926053, 056, 325, 326)

$109.99

$

Usually ships in 4-12 days

0

Ariens 03392500

SHAFT, RAKE-32"

Note: (926054, 328)

$106.99

$

Usually ships in 4-12 days

0

Ariens 03392600

SHAFT, RAKE-36"

Note: (926055, 329)

$99.99

$

Usually ships in 4-12 days

0

24

Ariens 52609700

GEAR CASE, 28" IRON PRO TOP-LD

Note: (Includes Items 1 - 23) (926053, 056, 325, 326)

$374.99

$

In Stock, only 1 left!

0

Ariens 52609800

GEAR CASE, 32" IRON PRO TOP-LD

Note: (Includes Items 1 - 23) (926054, 328)

$373.99

$

Usually ships in 4-12 days

0

Ariens 52609900

GEAR CASE, 36" IRON PRO TOP-LD

Note: (Includes Items 1 - 23) (926055, 329)

$373.99

$

Usually ships in 4-12 days

0

25

Ariens 00068800

ARIENS L3 LUBE, 8 OZ BOTTLE

$18.99

$

In Stock, Qty 20+

0
