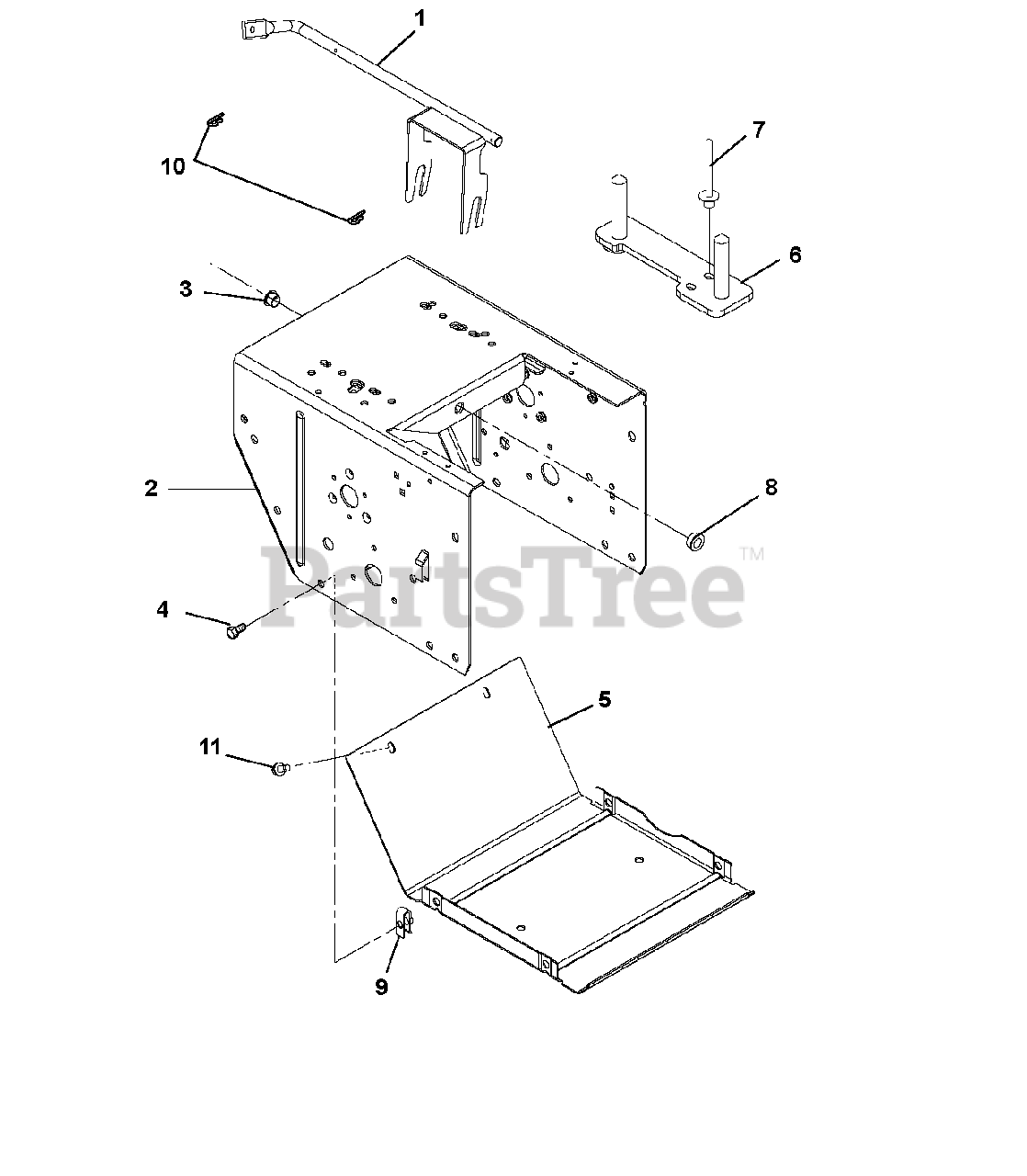

926046 - Gravely 36" Power Brush, Subaru (SN: 040000 & Above) Speed Selector And Frame Parts Diagram

36" Power Brush, Subaru

Speed Selector And Frame Parts Diagram

  • Title
1

Gravely 00371300

Arm, Shift

$60.99

$

Usually ships in 4-12 days

0

2

Gravely 04333753

Main Frame

$

$

Not available

3

Gravely 05500026

Bushing, Polyliner

$2.99

$

In Stock, Qty 20+

0

4

Gravely 05900019

Bolt, Hex Washer Head .25-20 x .75
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00375153

Cover, Bottom

$27.99

$

Usually ships in 4-12 days

0

6

Gravely 00392000

Strap, Engine Bolt

$

$

Not available

7

Gravely 06800028

Rivet, Pop .187
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

8

Gravely 05500028

Bushing, Polyliner

$2.49

$

In Stock, Qty 20+

0

9

Gravely 07009000

Nut, Retainer .25-20 x .56

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
