926046 - Gravely 36" Power Brush, Subaru (SN: 040000 & Above) Cables And Controls Parts Diagram

36" Power Brush, Subaru

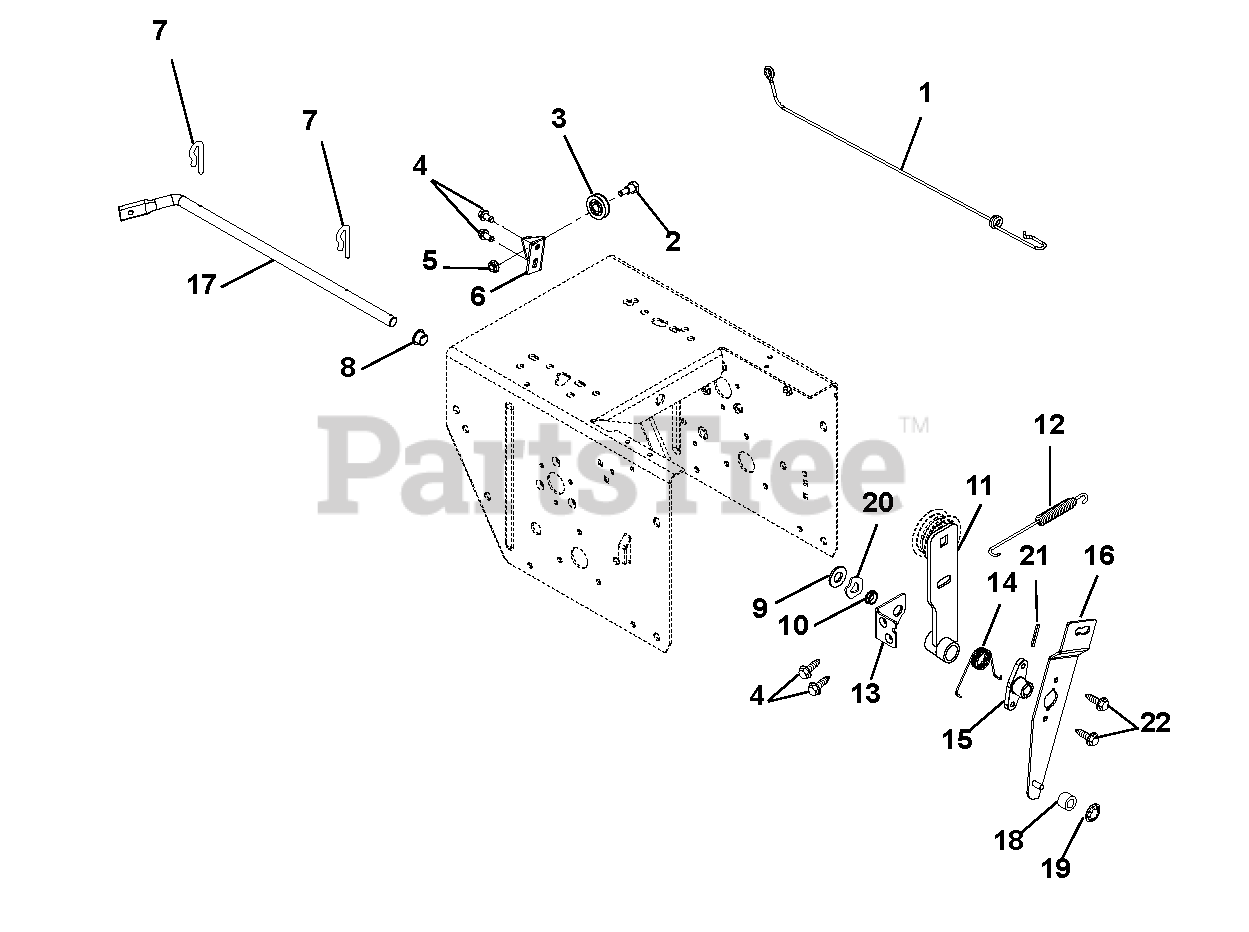

Cables And Controls Parts Diagram

  • Title

1

Gravely 06900503

Cable

$17.99

$

In Stock, only 4 left!

0

2

Gravely 07000021

Bolt, Shoulder
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

3

Gravely 07300012

Pulley, Cable

$4.99

$

In Stock, Qty 5

0

4

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00373051

Bracket, Cable Pulley
(Superseded to 00373000)

$

$

Not available

7

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05500026

Bushing, Polyliner

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05501119

Bushing, Flange

$3.99

$

In Stock, Qty 16

0

11

Gravely 00371651

Arm, Idler – Traction
(Superseded to 00371600)

$11.99

$

In Stock, Qty 12

0

12

Gravely 08300022

Spring

$5.99

$

In Stock, Qty 12

0

13

Gravely 04511651

Bracket, Support
(Superseded to 04511600)

$3.49

$

In Stock, Qty 18

0

14

Gravely 08300015

Spring

$2.49

$

In Stock, Qty 20+

0

15

Gravely 00384200

Hub, Brake Arm

$5.99

$

In Stock, Qty 8

0

16

Gravely 02954400

Arm, Idler – Attachment

$77.99

$

In Stock, only 1 left!

0

17

Gravely 00384351

Arm, Attachment
(Superseded to 00384300)

$19.99

$

In Stock, Qty 14

0

18

Gravely 05500037

Bushing,Sleeve

$

$

Not available

19

Gravely 05717600

Ring, Retaining External .250 x .010

$0.99

$

In Stock, Qty 17

0

20

Gravely 08300534

Wave Washer

$3.99

$

In Stock, Qty 8

0

21

Gravely 05800900

Pin, Roll .125 x 1.00

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07414200

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .75
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0
