926046 - Gravely 36" Power Brush, Subaru (SN: 035000 - 039999) Reduction Drive Parts Diagram

36" Power Brush, Subaru

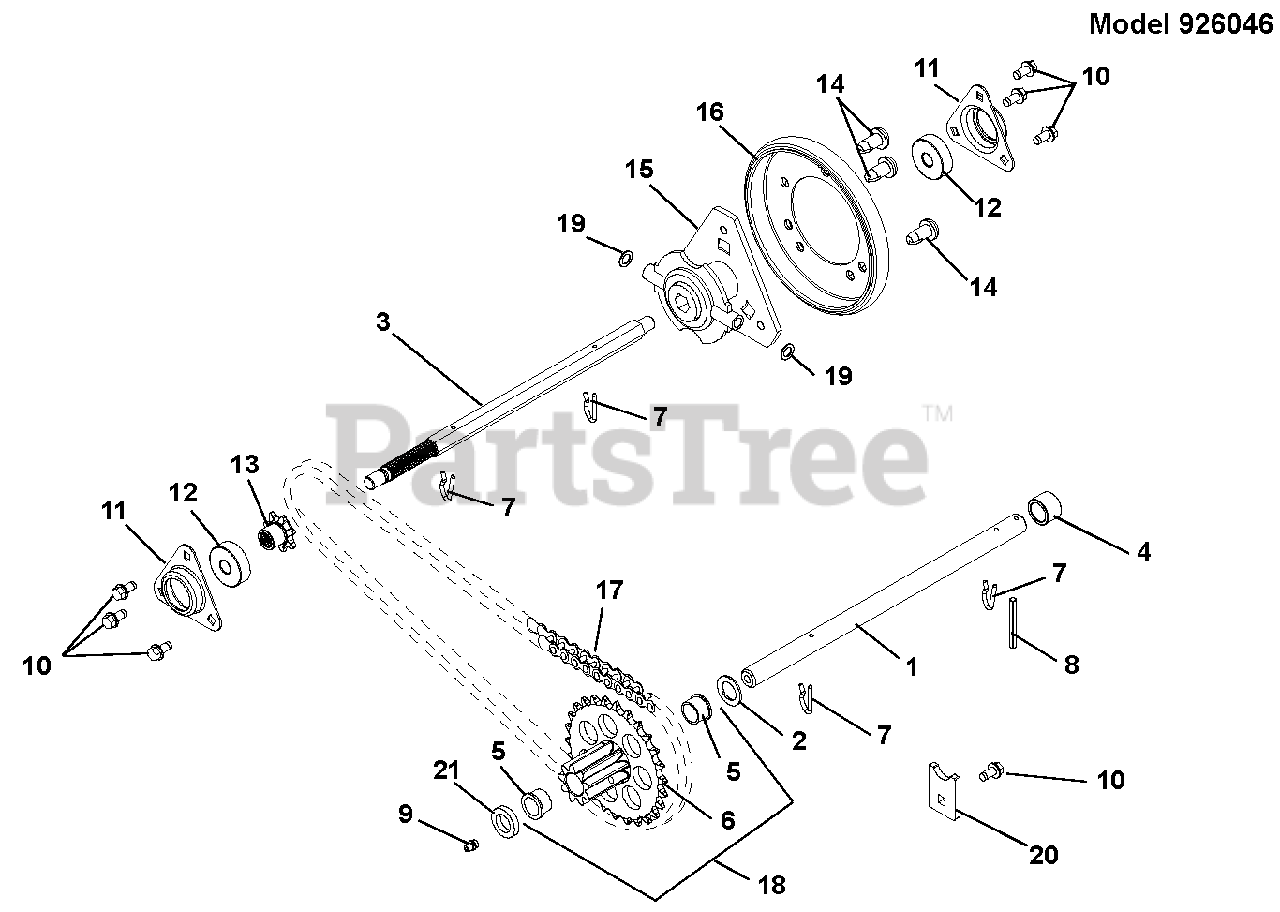

Reduction Drive Parts Diagram

  • Title
1

Gravely 00660500

Shaft, Pinion
(Superseded to 52605900)

$35.99

$

In Stock, Qty 8

0

2

Gravely 06436100

Washer, Flat Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 04098800

Shaft, Hex
(Superseded to 04511700)

$58.99

$

In Stock, Qty 6

0

4

$2.49

$

In Stock, Qty 5

0

5

Gravely 05500111

Bushing, Flange (Included in Item 18)

Note: (Included in Item 18)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00190600

Sprocket/Gear (Included in Item 18)

Note: (Included in Item 18)

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05800205

Pin, Groove Type E .125 x 1.00

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07061300

Zerk, Fitting .25 x .125 Drive-In

$3.99

$

In Stock, Qty 20+

0

10

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00383000

Flange, Bearing

$12.99

$

In Stock, Qty 17

0

12

$9.49

$

In Stock, Qty 20+

0

13

Gravely 04092600

Sprocket, Pinion
(Superseded to 09478400)

$

$

Not available

14

Gravely 07400009

Screw, Tapping Serrated Round Head Torx .31-18 x .50
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00383100

Carrier, Friction Disc

$117.99

$

In Stock, Qty 11

0

16

Gravely 00170800

Friction Disc
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

17

Gravely 02466200

Chain, Roller

$6.99

$

In Stock, Qty 12

0

18

Gravely 52601500

Sprocket/Gear with Bushings (Includes Items 5 and 6)

Note: (Includes Items 5 and 6)

$45.99

$

In Stock, Qty 14

0

19

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00503500

Tab, Anti-Rotation

$4.99

$

In Stock, only 2 left!

0

21

Gravely 05500035

Bushing, Sleeve

$3.99

$

In Stock, Qty 20+

0
