926046 - Gravely 36" Power Brush, Subaru (SN: 035000 - 039999) Handlebars And Controls Parts Diagram

36" Power Brush, Subaru

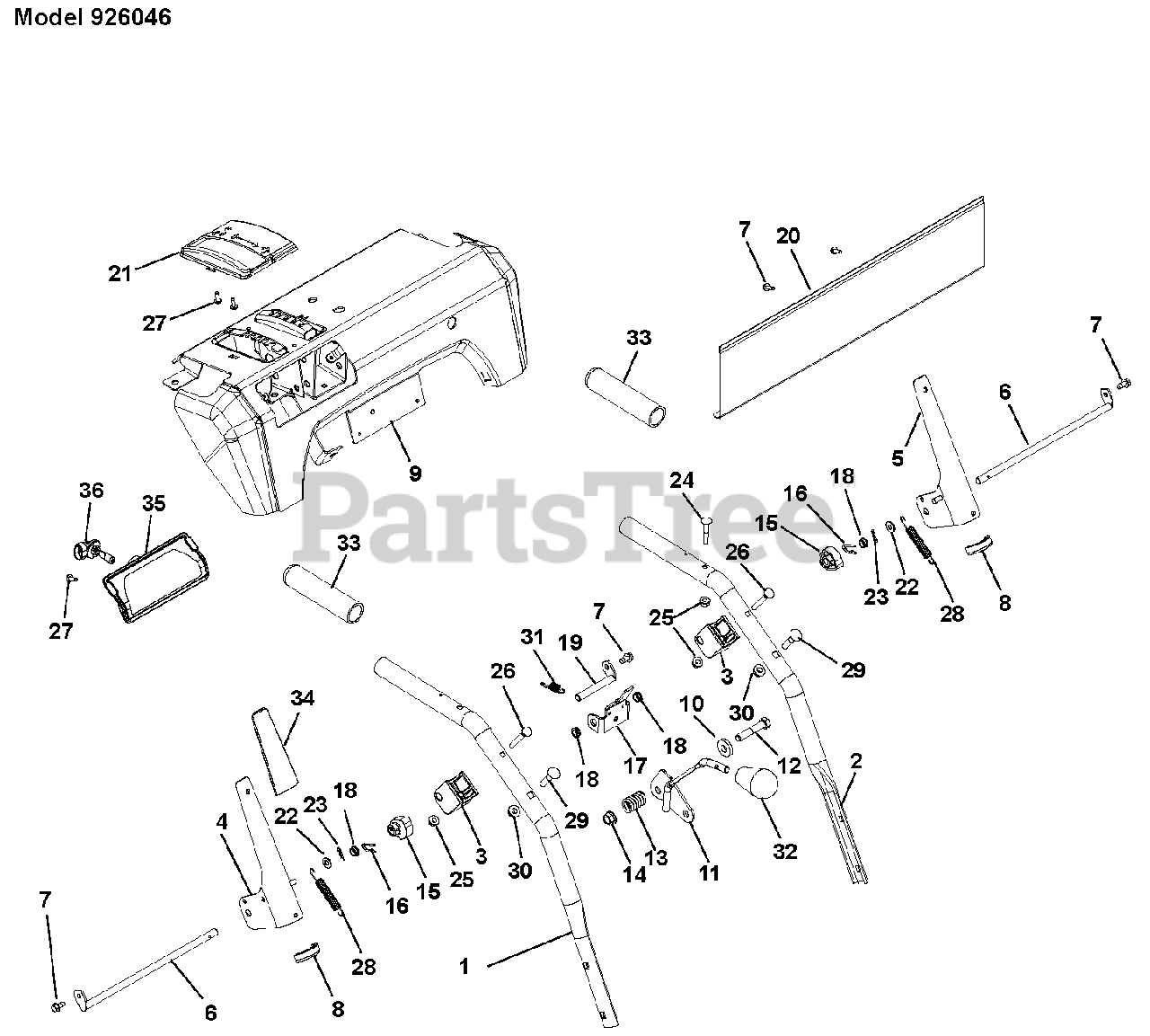

Handlebars And Controls Parts Diagram

  • Title

1

Gravely 04318151

Handlebar, Upper, Right Hand

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 04318251

Handlebar, Upper, Left Hand

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 04310100

Clutch Paddle Block
(Superseded to 05193600)

$

$

Not available

4

Gravely 04310551

Clutch Handle, Right Hand

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 04310451

Clutch Handle, Left Hand

$28.99

$

In Stock, only 1 left!

0

6

Gravely 04320600

Rod, Paddle Mount

$

$

Not available

7

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 07500103

Edging, Clutch Handle

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 52610700

Control Panel with Decal

$

$

Not available

10

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 04320200

Lever, Shift

$26.99

$

Usually ships in 4-12 days

0

12

Gravely 05963300

Bolt, Hex .38-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

13

Gravely 08335700

Spring

$9.49

$

In Stock, only 1 left!

0

14

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 04322100

Cam, Interlock

$3.99

$

In Stock, only 2 left!

0

16

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

17

Gravely 04320400

Interlock Arm

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 05500020

Bushing, Polyliner

$2.99

$

In Stock, Qty 20+

0

19

Gravely 04320500

Rod, Pivot

$19.99

$

In Stock, only 1 left!

0

20

Gravely 04409251

Brand Plate

$

$

Not available

21

Gravely 04333300

Shift Bezel

$9.99

$

Usually ships in 4-12 days

0

22

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06701900

Pin, Hair, Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

24

Gravely 06220100

Bolt, Round Head Extra Long Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 4 left!

0

25

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06209300

Bolt, Round Head Extra Long Square Neck .25-20 x 2.00

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 07400107

Screw, Tapping Hex Head Boss #10 x .50

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 08300527

Spring

$3.49

$

In Stock, only 4 left!

0

29

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

30

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 08337000

Spring

$5.99

$

In Stock, Qty 16

0

32

Gravely 07500209

Knob

$10.99

$

Usually ships in 4-12 days

0

33

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

34

Gravely 07500211

Sleeve, Clutch Handle

$2.49

$

In Stock, Qty 5

0

35

Gravely 04307600

Headlight Assembly (Includes Item 36)
(Superseded to 04812300)

Note: (Includes Item 36)

$42.99

$

In Stock, Qty 7

0

36

Gravely 00432600

Bulb, Light (Included in Item 35)

Note: (Included in Item 35)

$14.99

$

In Stock, Qty 5

0
