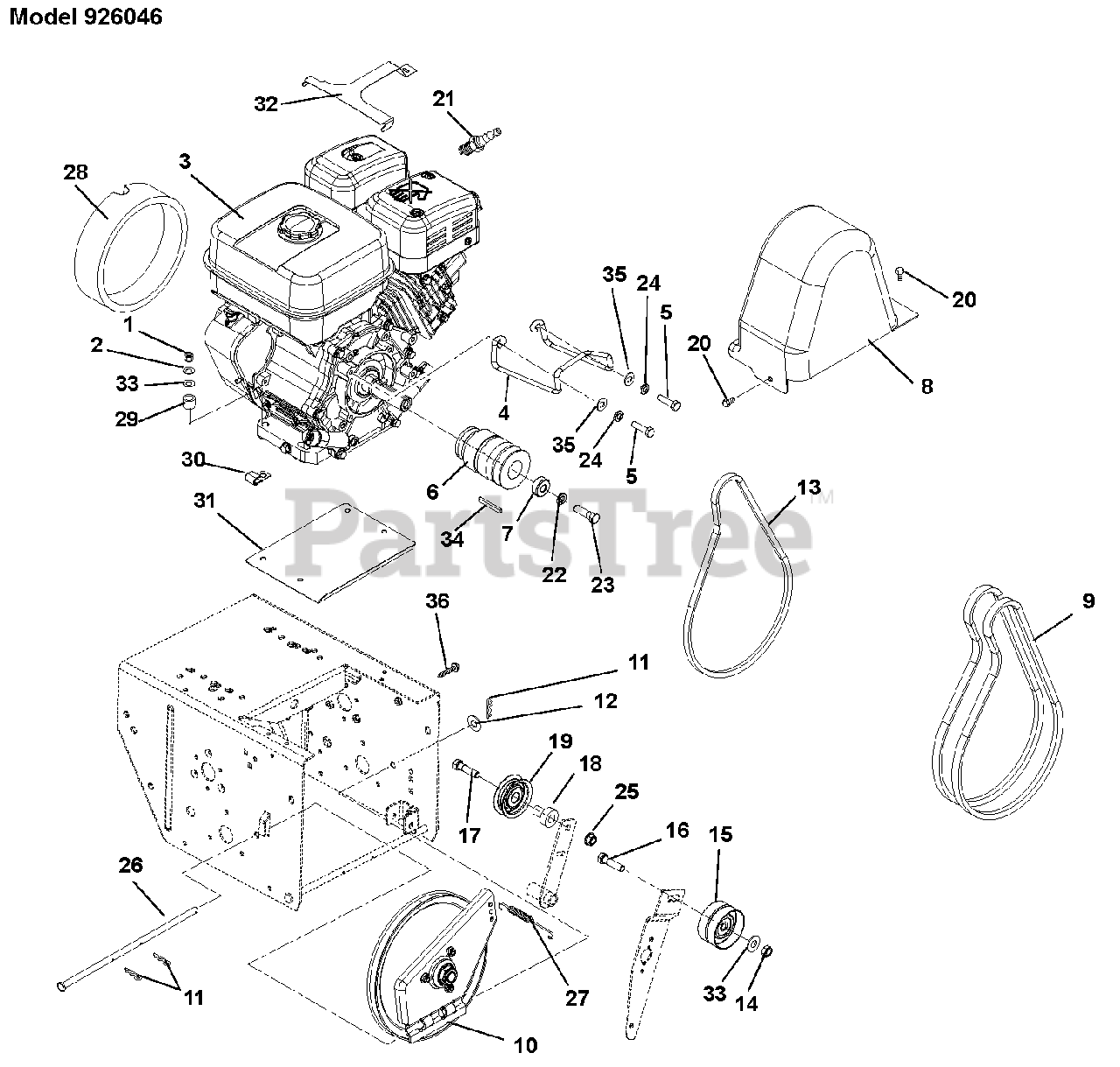

926046 - Gravely 36" Power Brush, Subaru (SN: 035000 - 039999) Engine And Belt Drive Parts Diagram

36" Power Brush, Subaru

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

2

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 18

0

3

Gravely 08200519

Engine, Subaru EX27 All-Season

$

$

Not available

4

Gravely 04334200

Belt Finger

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 05947300

Bolt, Hex .31-24 x .75
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03846500

Sheave, Engine

$168.99

$

Usually ships in 4-12 days

0

7

Gravely 05500938

Bushing, Spacer

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 03965700

Cover, Belt

$156.99

$

Usually ships in 4-12 days

0

9

Gravely 07200601

V-Belt, Matched Set, Brush

$58.99

$

In Stock, only 2 left!

0

10

Gravely 52602700

Plate, Swing Assembly

$129.99

$

In Stock, only 1 left!

0

11

Gravely 06714800

Hair Pin
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07231000

V-Belt, Drive

$27.99

$

In Stock, Qty 9

0

14

Gravely 06537200

Nut, Locking Center Jam .38-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07333500

Idler, Flat

$22.99

$

In Stock, Qty 8

0

16

Gravely 06200111

Bolt, Round Head Square Short Neck .38-16 x 1.75
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 05947500

Bolt, Hex .31-18 x 1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 9

0

18

Gravely 01213100

Spacer

$3.49

$

In Stock, only 1 left!

0

19

Gravely 02457400

Idler
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

20

Gravely 07400104

Screw, Tapping Large Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

21

Gravely 21530400

Plug, Spark

$

$

Not available

22

Gravely 06309300

Washer, Lock .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

23

Gravely 05900039

Bolt, Hex .44-20 x 1.50
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

24

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 18

0

25

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00380900

Rod, Pivot

$40.99

$

Usually ships in 4-12 days

0

27

Gravely 08300019

Spring

$5.99

$

In Stock, Qty 14

0

28

Gravely 03972500

Foam Cover, Recoil

$20.99

$

Usually ships in 4-12 days

0

29

Gravely 05500937

Bushing, Sleeve

$

$

Not available

30

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 5

0

31

Gravely 03980051

Baffle

$45.99

$

Usually ships in 4-12 days

0

32

Gravely 03981151

Guard, Snow

$62.99

$

Usually ships in 4-12 days

0

33

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06610300

Key .25 x .25 x 2.25

$2.99

$

In Stock, Qty 11

0

35

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 07400007

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x 1.50

$1.99

$

Usually ships in 4-12 days

0
