926046 - Gravely 36" Power Brush, Subaru (SN: 001001 - 034999) Cables And Controls Parts Diagram

36" Power Brush, Subaru

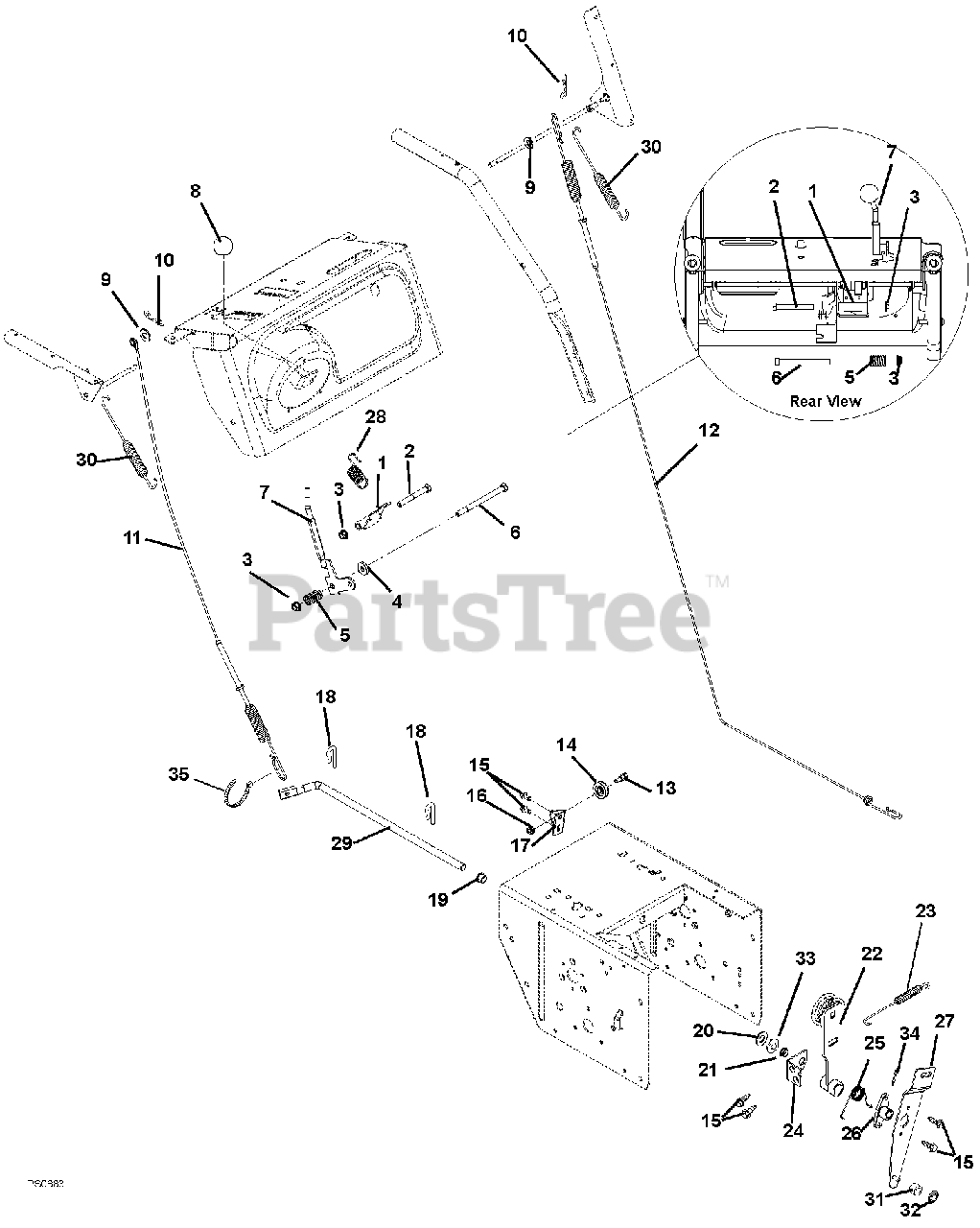

Cables And Controls Parts Diagram

  • Title

1

Gravely 00356900

Arm, Interlock

$

$

Not available

2

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

5

Gravely 08335700

Spring, Compression

$9.49

$

In Stock, only 1 left!

0

6

Gravely 05957700

Bolt, Hex .38-16 x 5.00 Grade 5
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 00396900

Lever, Shift

$51.99

$

In Stock, only 1 left!

0

8

Gravely 07533500

Knob, Ball Black

$9.99

$

In Stock, Qty 8

0

9

Gravely 06437300

Washer, Flat Steel .28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06701900

Pin, Hair Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 15

0

11

Gravely 06900312

Cable, Attachment

$34.99

$

In Stock, Qty 14

0

12

Gravely 06900011

Cable, Traction

$34.99

$

In Stock, Qty 10

0

13

Gravely 07000021

Bolt, Shoulder .375 x .375 x .25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

14

Gravely 07300012

Pulley, Cable

$4.99

$

In Stock, Qty 12

0

15

Gravely 07412000

Screw, Tap .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 00373051

Bracket, Cable Pulley
(Superseded to 00373000)

$

$

Not available

18

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05500026

Bushing, Polyliner .50 Split

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05500028

Bushing, Polyliner .50 Snap-in

$2.49

$

In Stock, Qty 20+

0

22

Gravely 00371651

Arm, Idler Traction
(Superseded to 00371600)

$11.99

$

In Stock, Qty 17

0

23

Gravely 08300022

Spring, Tension

$5.99

$

In Stock, Qty 20+

0

24

Gravely 00372851

Bracket, Support
(Superseded to 52110700)

$

$

Not available

25

Gravely 08300015

Spring, Torsion

$2.49

$

In Stock, Qty 20+

0

26

Gravely 00384200

Hub, Brake Arm

$5.99

$

In Stock, Qty 11

0

27

Gravely 00372551

Arm, Idler Attachment

$

$

Not available

28

Gravely 08337000

Spring, Tension

$5.99

$

In Stock, Qty 20+

0

29

Gravely 00384351

Arm, Attachment
(Superseded to 00384300)

$19.99

$

In Stock, Qty 18

0

30

Gravely 08300017

Spring, Tension

$5.99

$

In Stock, Qty 20+

0

31

Gravely 05500820

Bushing,Sleeve

$2.49

$

In Stock, Qty 20+

0

32

Gravely 05717600

Ring, Retaining External .250 x .010

$0.99

$

In Stock, Qty 20+

0

33

Gravely 00325400

Wave Washer

$0.99

$

In Stock, Qty 20+

0

34

Gravely 05800900

Pin, Roll .125 x 1.00

$0.99

$

In Stock, Qty 20+

0

35

Gravely 07517300

Cable Tie

$

$

Not available
