926045 - Ariens 36" Power Brush, Subaru (SN: 035000 - 039999) Engine And Belt Drive Parts Diagram

36" Power Brush, Subaru

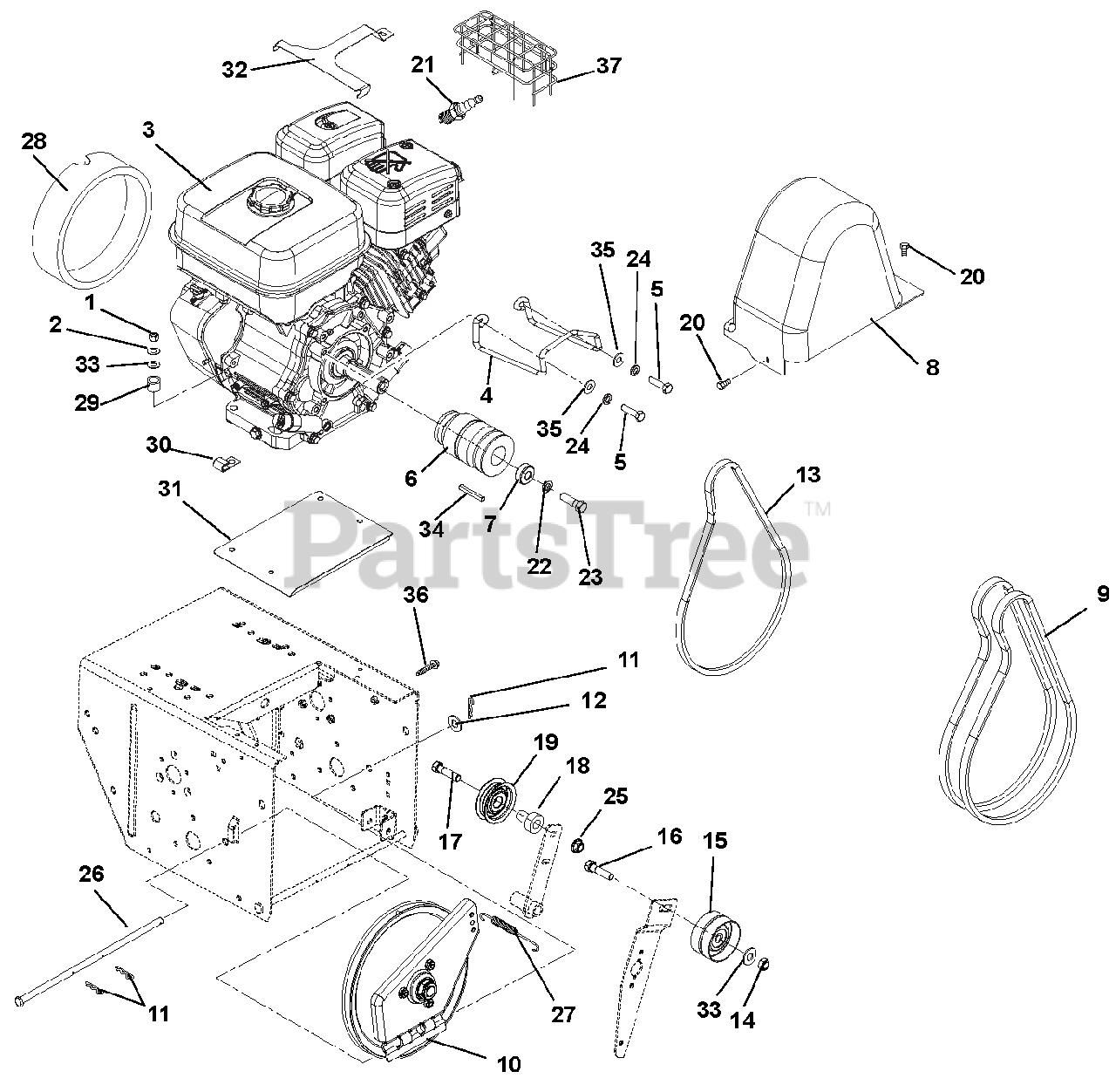

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

2

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 08200519

ENGINE,SUBARU EX27 AS 120V

Note: (926045)

$

$

Not available

Ariens 08200512

ENGINE,SUBARU EX27 AS RECOIL

Note: (926309)

$

$

Not available

4

Ariens 04334200

FINGER, BELT

$27.99

$

Usually ships in 4-12 days

0

5

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 03846500

SHEAVE, SUBARU EX27

$168.99

$

Usually ships in 4-12 days

0

7

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 03965700

COVER, BELT-TALL PRO

$156.99

$

Usually ships in 4-12 days

0

9

Ariens 07200601

V-BELT, HA-RAW EDGE (SET)

$58.99

$

In Stock, only 2 left!

0

10

Ariens 52602700

PLATE, SWING ASSEMBLY-DEEP

$129.99

$

In Stock, Qty 5

0

11

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07231000

V-BELT, 3L-RAW EDGE

$27.99

$

In Stock, Qty 12

0

14

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07333500

IDLER, FLAT-2.75 OD X .375 ID

$22.99

$

In Stock, Qty 9

0

16

Ariens 06200111

@BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

17

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

18

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

19

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

20

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

21

Ariens 21530400

PLUG, SPARK - TEC. SNO-THRO

$

$

Not available

22

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

23

Ariens 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

24

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 00380900

PIN, PIVOT

$40.99

$

Usually ships in 4-12 days

0

27

Ariens 08300019

SG-TENS .048X.50X2.8

$5.99

$

In Stock, Qty 17

0

28

Ariens 03972500

FOAM COVER, RECOIL-SUBARU

$20.99

$

Usually ships in 4-12 days

0

29

Ariens 05500937

BSHG-SLV .325X.400X.795

$

$

Not available

30

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

31

Ariens 03980051

BAFFLE, WATER-PRO SERIES

$45.99

$

Usually ships in 4-12 days

0

32

Ariens 03981151

GUARD, SNOW-SUBARU

$62.99

$

Usually ships in 4-12 days

0

33

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

35

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 07400007

@SCR-TAP .25-20X1.50 HWH TR YZ

$1.99

$

Usually ships in 4-12 days

0

37

Ariens 04332500

MUFFLER GUARD, SUB EX270JO930

Note: (926309)

$97.99

$

Usually ships in 4-12 days

0
