926045 - Ariens 36" Power Brush, Subaru (SN: 001001 - 034999) Handlebars, Levers And Dash Panel Parts Diagram

36" Power Brush, Subaru

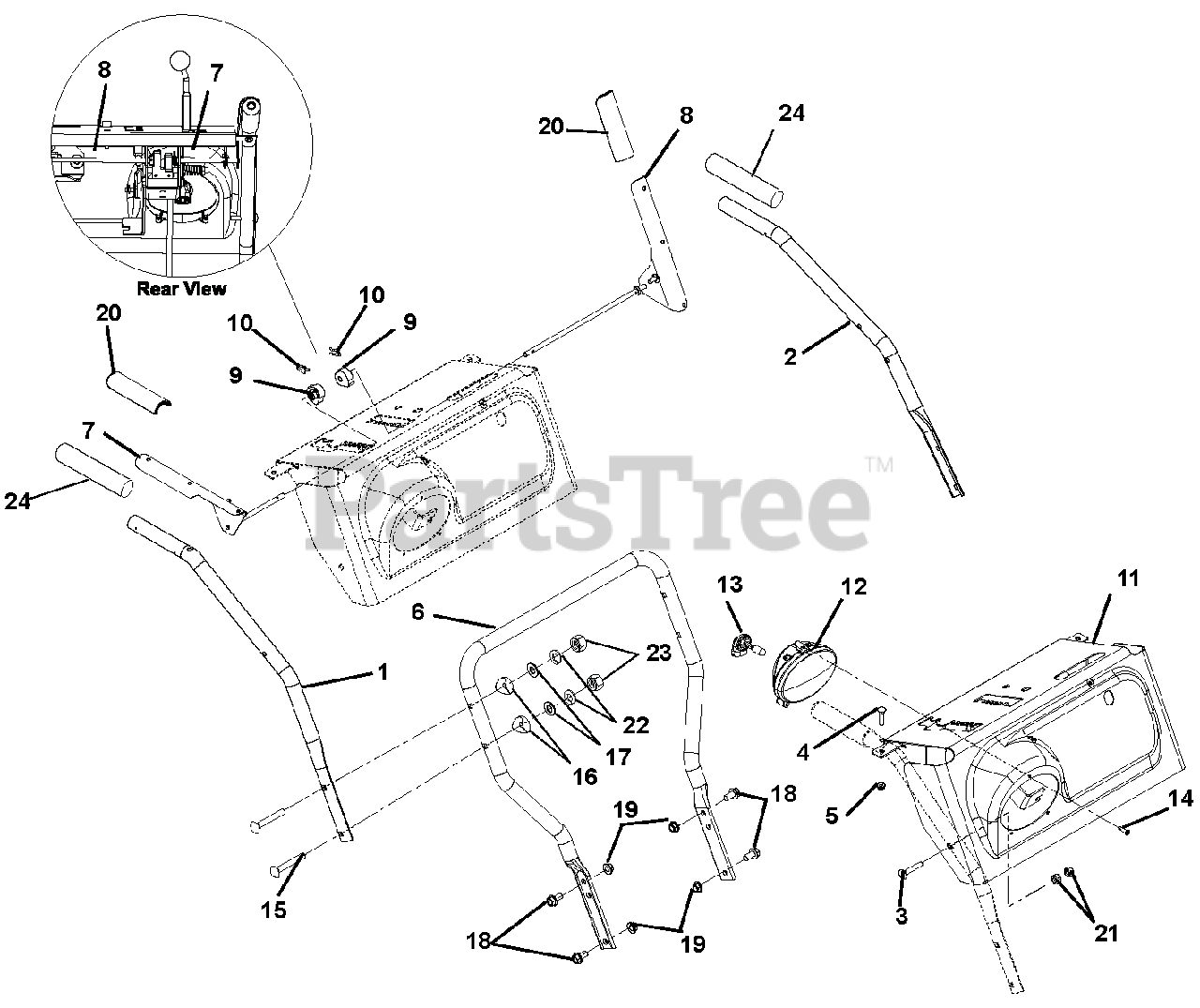

Handlebars, Levers And Dash Panel Parts Diagram

  • Title

1

Ariens 00428351

HANDLEBAR, UPPER-RH

$68.99

$

Usually ships in 4-12 days

0

2

Ariens 00428451

HANDLEBAR, UPPER-LH

$75.99

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 4 left!

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00373251

HANDLEBAR, LOWER

$100.99

$

Usually ships in 4-12 days

0

7

Ariens 00393051

LEVER, RH-ATTACHMENT

$63.99

$

In Stock, only 4 left!

0

8

Ariens 00393151

LEVER, LH-TRACTION

$74.99

$

In Stock, only 3 left!

0

9

Ariens 03888100

CAM, INTERLOCK NYLON, LG DASH

$7.99

$

In Stock, Qty 6

0

10

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

11

Ariens 52609300

PANEL, WITH CONTROL DECAL

$

$

Not available

12

Ariens 03917500

LIGHT, HALOGEN ASSY 12W

Note: (Bulb Included)

$26.99

$

Usually ships in 4-12 days

0

13

Ariens 03917501

BULB, LIGHT, HALOGEN - 12W
(Superseded to 04676800)

$11.99

$

Usually ships in 4-12 days

0

14

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 18

0

17

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, Qty 11

0

21

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0
