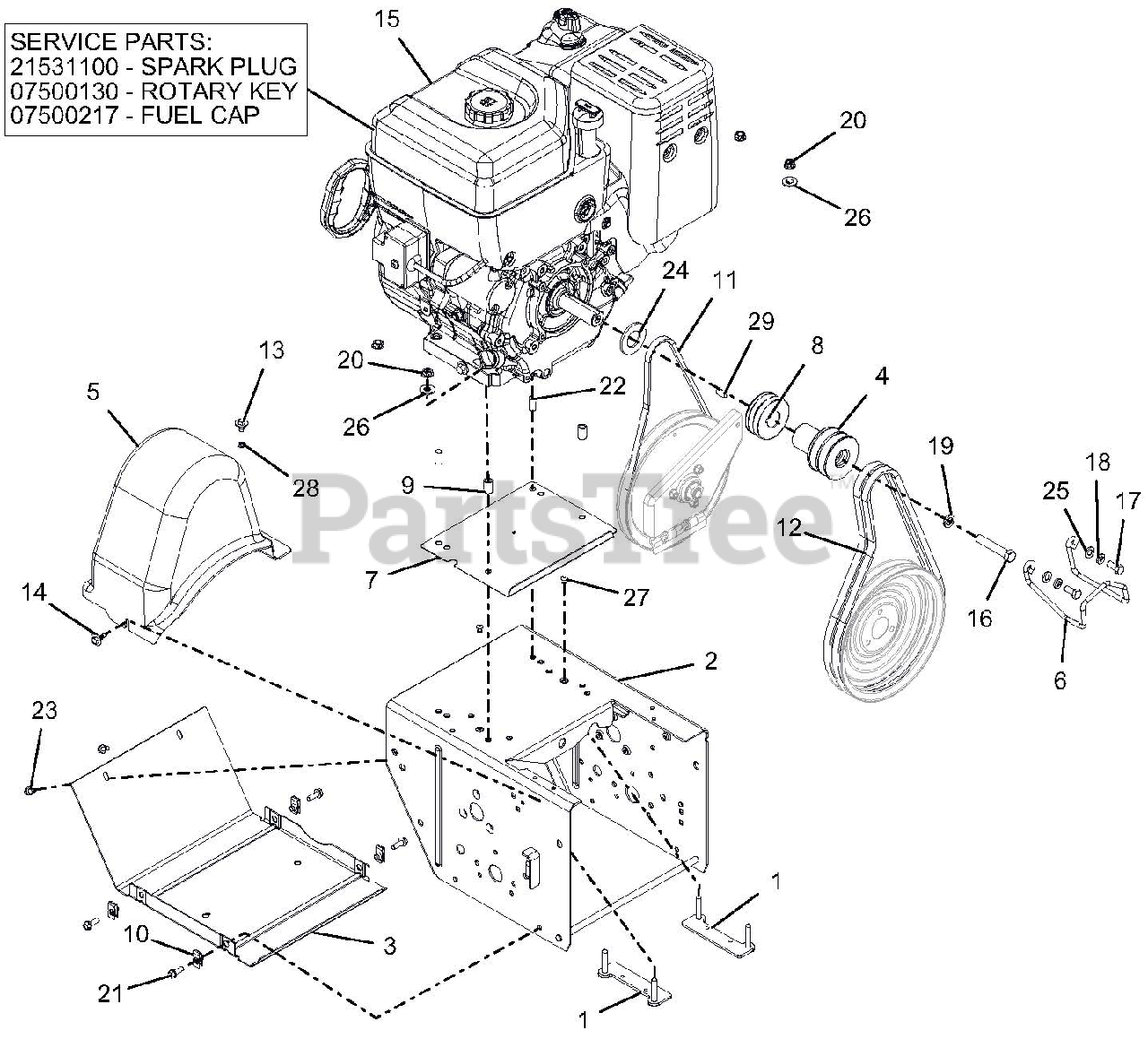

926042 (PRO 28) - Ariens Professional 28" Track Snow Blower, Briggs & Stratton (SN: 100000 & Above) Engine, Frame And Belt Drive - Track Parts Diagram

Professional 28" Track Snow Blower, Briggs & Stratton

Engine, Frame And Belt Drive - Track Parts Diagram

  • Title

1

Ariens 04333900

BOLT STRAP, 2100 BRIGGS

$12.99

$

Usually ships in 4-12 days

0

2

Ariens 04426159

PRO HYDRO FRAME, MAIN
(Superseded to 04999959)

$194.99

$

Usually ships in 4-12 days

0

3

Ariens 00375159

COVER, BOTTOM

$82.99

$

Usually ships in 4-12 days

0

4

Ariens 00657400

SHEAVE, ATTACHMENT 2-GRV
(Superseded to 04957500)

$28.99

$

Usually ships in 4-12 days

0

5

Ariens 04083100

COVER, BELT-LARGE PRO

$26.99

$

Usually ships in 4-12 days

0

6

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$25.99

$

Usually ships in 4-12 days

0

7

Ariens 04346051

BAFFLE,ENGINE-PRO SERIES

Note: (BLACK)

$38.99

$

Usually ships in 4-12 days

0

8

Ariens 04503300

SHEAVE, DRIVE

$205.99

$

Usually ships in 4-12 days

0

9

Ariens 05531500

BSHG-SLV .328X.50X.75

$13.99

$

Usually ships in 4-12 days

0

10

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07200505

V-BELT, 3L-WRAPPED

$34.99

$

In Stock, only 1 left!

0

12

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

Note: (SET)

$54.99

$

In Stock, Qty 20+

0

13

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

14

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 08200705

ENGINE, BRIGGS PF 2100, 120V

$

$

Not available

15

Ariens 21531100

PLUG, SPARK 20HP B&S VANGUARD

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

15

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

Note: SERVICE PART

$10.99

$

In Stock, Qty 20+

0

15

Ariens 07500217

CAP, FUEL - BRIGGS & STRATTON

Note: SERVICE PART

$64.99

$

Usually ships in 4-12 days

0

16

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 15

0

19

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

20

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 13

0

22

Ariens 05500937

BSHG-SLV .325X.400X.795

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

25

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, only 3 left!

0

28

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

29

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, only 2 left!

0
