926039 (PRO 32) - Ariens Professional 32" Snow Blower, Briggs & Stratton (SN: 035000 - 074999) Speed Selector And Frame Parts Diagram

Professional 32" Snow Blower, Briggs & Stratton

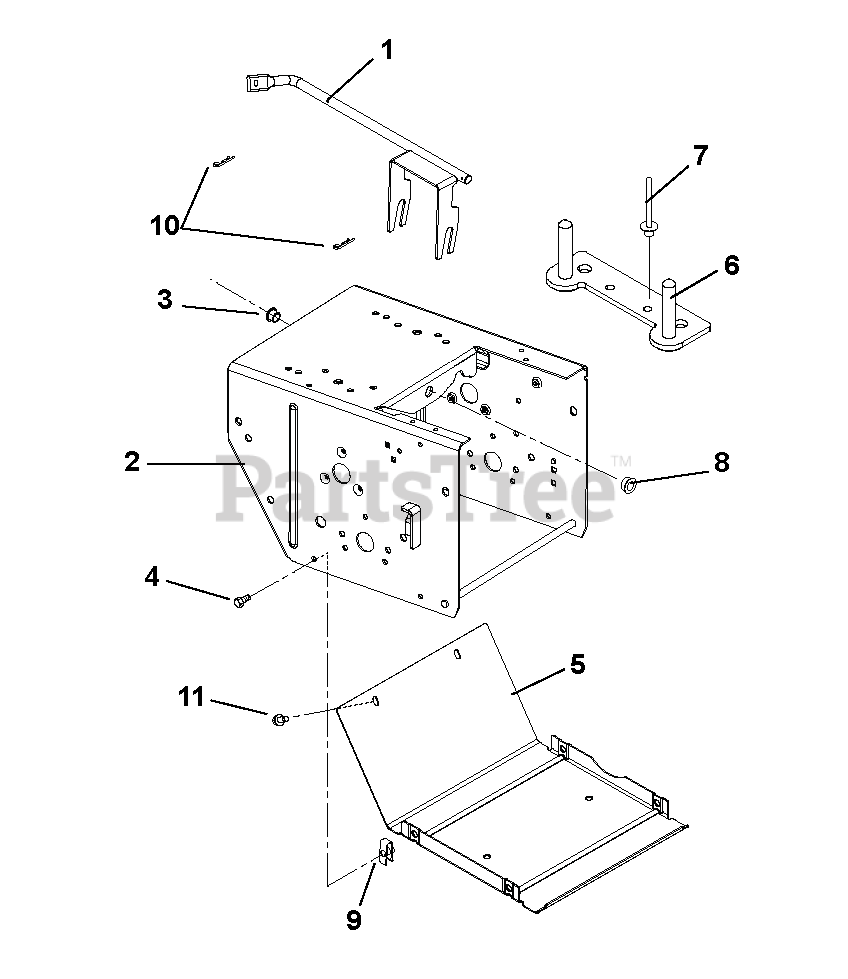

Speed Selector And Frame Parts Diagram

  • Title
1

Ariens 00371300

ARM, SHIFT-WELDMENT

$60.99

$

Usually ships in 4-12 days

0

2

Ariens 04426159

PRO HYDRO FRAME, MAIN
(Superseded to 04999959)

$194.99

$

Usually ships in 4-12 days

0

3

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

4

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00375159

COVER, BOTTOM

$82.99

$

Usually ships in 4-12 days

0

6

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

Note: (926513)

$

$

Not available

Ariens 04333900

BOLT STRAP, 2100 BRIGGS

Note: (926038, 039, 040, 042, 321, 322, 323, 324)

$12.99

$

Usually ships in 4-12 days

0

7

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

8

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 20+

0

9

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

11

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
