926038 (PRO 28) - Ariens Professional 28" Snow Blower, Briggs & Stratton (SN: 120000 & Above) Wheels And Axles Parts Diagram

Professional 28" Snow Blower, Briggs & Stratton

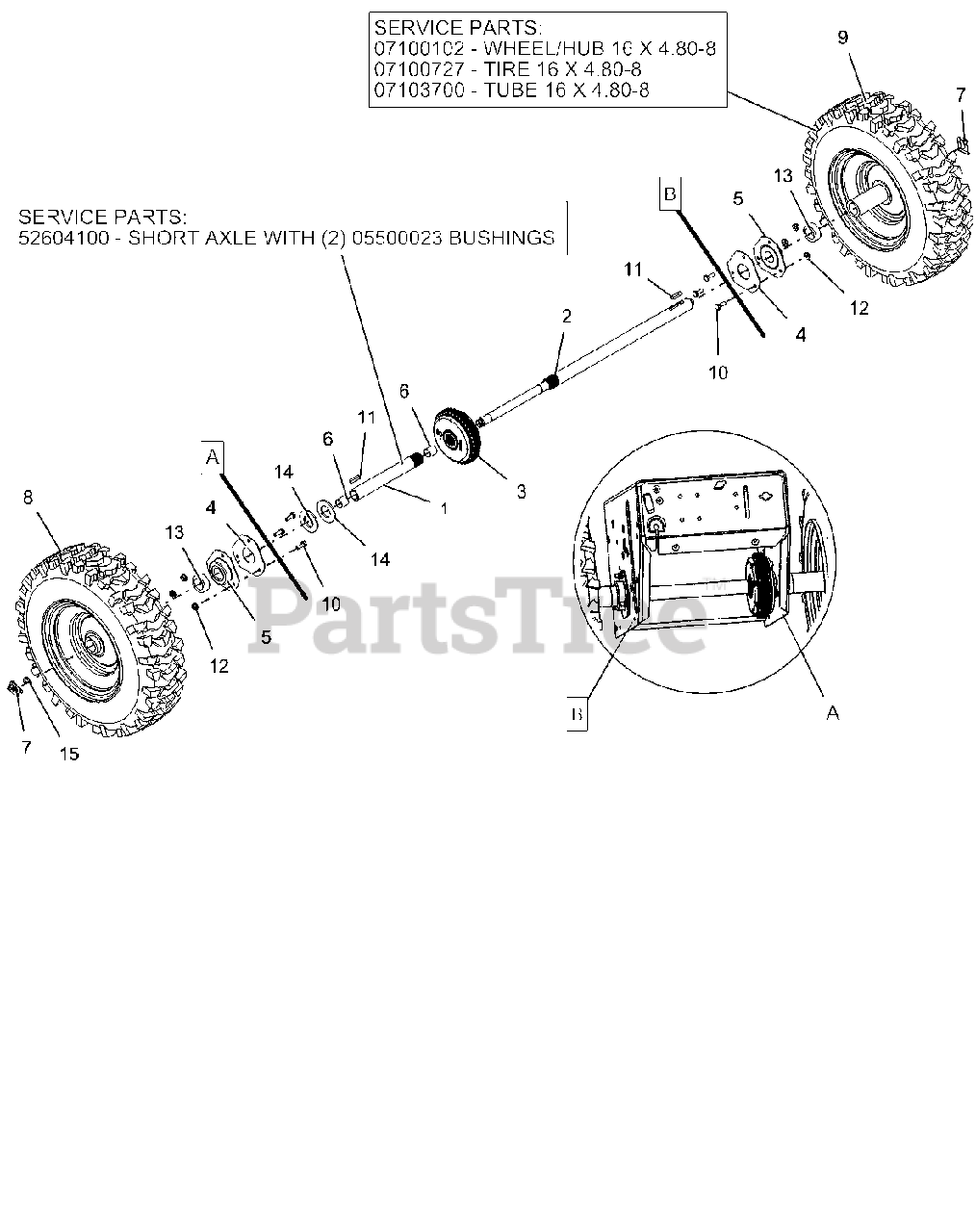

Wheels And Axles Parts Diagram

  • Title

1

Ariens 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

$53.99

$

In Stock, Qty 8

0

2

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$96.99

$

In Stock, only 1 left!

0

3

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$155.99

$

In Stock, Qty 5

0

4

Ariens 04796351

PLATE, BEARING SPACER

$

$

Not available

5

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, Qty 19

0

6

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

8

Ariens 07100229

TIRE/WHEEL,RH 16X4.8-8 DIFF T2
(Superseded to 07101201)

$113.99

$

Usually ships in 4-12 days

0

9

Ariens 07100230

TIRE/WHEEL,LH 16X4.8-8 DIFF T2
(Superseded to 07101202)

$113.99

$

Usually ships in 4-12 days

0

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05501014

SPACER, PRO AXLE BEARING

$7.49

$

In Stock, Qty 6

0

14

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

15

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07100102

HUB, WHEEL - 16X4.8-8 DIFF

Note: SERVICE PART

$59.99

$

Usually ships in 4-12 days

0

17

Ariens 07100727

TIRE, 4.80-8 K478

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

18

Ariens 07103700

TUBE

Note: SERVICE PART

$14.99

$

Usually ships in 4-12 days

0

19

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: (BUSHINGS - 05500023) SERVICE PARTS

$53.99

$

In Stock, Qty 8

0
