926027 (ST 1332 LE) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 & Above) Wheels And Axles Parts Diagram

32" Snow Blower, 13hp Tecumseh

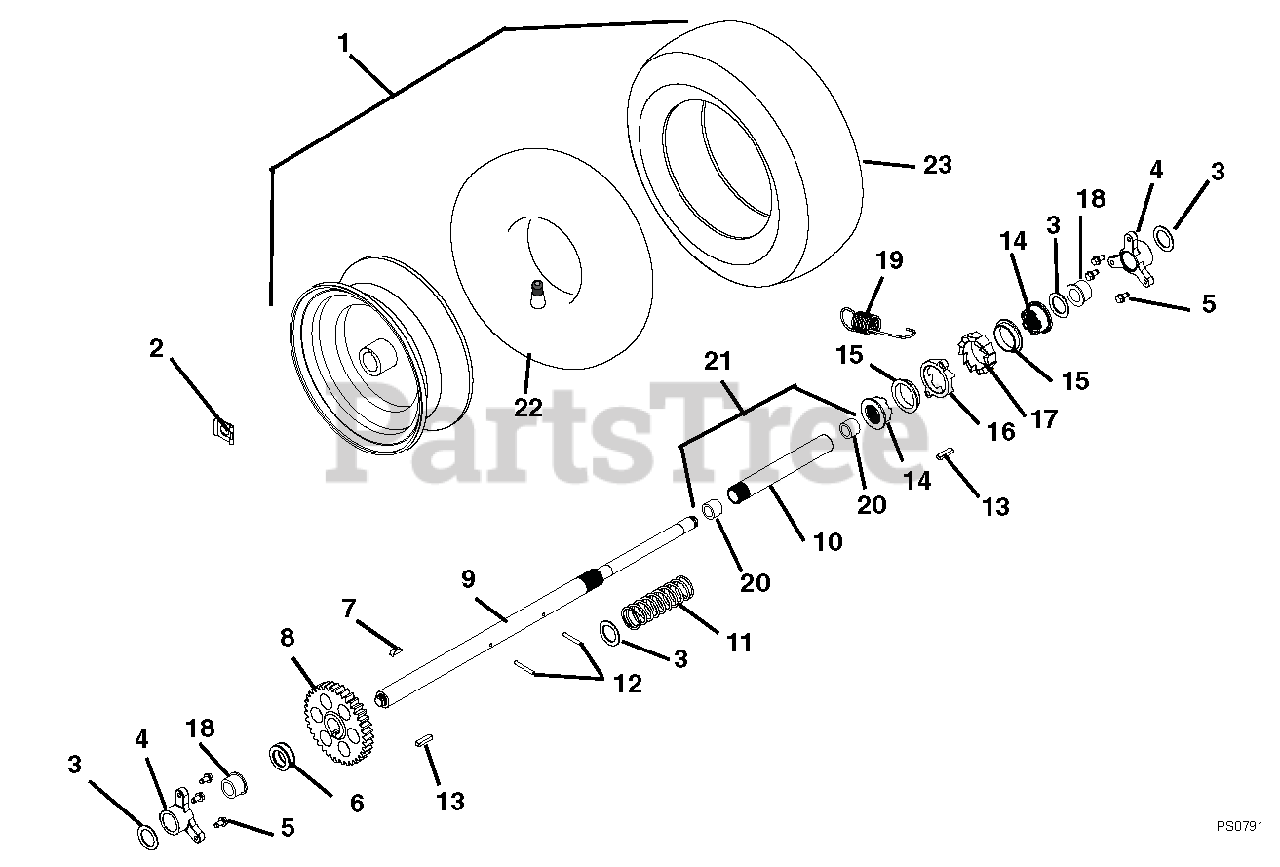

Wheels And Axles Parts Diagram

  • Title
1

Ariens 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (Includes 22-23)

$148.99

$

Usually ships in 4-12 days

0

Ariens 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (Includes 22-23)

$148.99

$

In Stock, only 2 left!

0

2

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

5

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05500118

SPACER 1.008X1.503X.605

$

$

Not available

7

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

8

Ariens 00371000

GEAR, SPUR

$53.99

$

In Stock, only 1 left!

0

9

Ariens 00376000

AXLE, DIFFERENTIAL-LONG

$366.99

$

In Stock, Qty 5

0

10

Ariens 00375900

AXLE, DIFFERENTIAL-SHORT
(Superseded to 52601700)

$103.99

$

In Stock, Qty 11

0

11

Ariens 00427700

SPRING, COMPRESSION

$3.99

$

In Stock, Qty 7

0

12

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

14

Ariens 00386900

CLUTCH, DOG - SLIDING

$20.99

$

In Stock, Qty 10

0

15

Ariens 00391100

BUSHING, FLANGE

$2.49

$

In Stock, Qty 20+

0

16

Ariens 00387100

GEAR, CLUTCH

$28.99

$

In Stock, only 3 left!

0

17

Ariens 00387000

GEAR, RATCHET

$21.99

$

In Stock, only 3 left!

0

18

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$6.99

$

In Stock, Qty 20+

0

19

Ariens 08300023

SG-TENS .06X.62X2.94

$9.49

$

In Stock, Qty 9

0

20

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

21

Ariens 05201700

DECAL,FOOT

Note: (Includes 10 and 20)

$

$

Not available

22

$34.99

$

Usually ships in 4-12 days

0

23

Ariens 07100728

TIRE, 16X6.50-8 K478

$79.99

$

Usually ships in 4-12 days

0
