926009 (ST 11528 LE) - Ariens 28" Snow Blower, 11.5hp Briggs & Stratton (SN: 002001 & Above) Handlebars And Controls Parts Diagram

28" Snow Blower, 11.5hp Briggs & Stratton

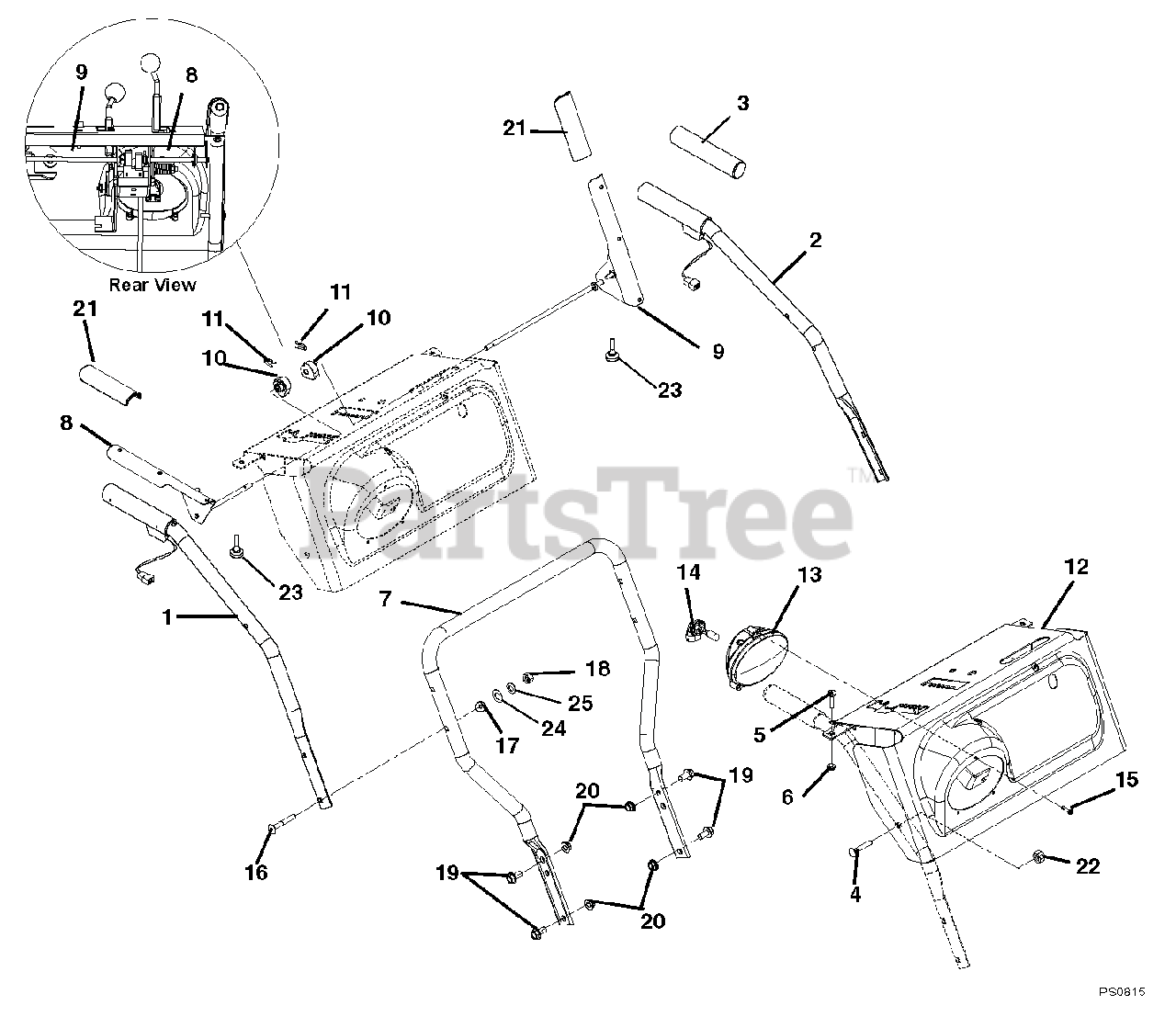

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 52602000

HANDLEBAR, UPPER RH-W/HW

Note: (009, 010, 011, 012, 028)

$156.99

$

Usually ships in 4-12 days

0

1

Ariens 00428351

HANDLEBAR, UPPER-RH

Note: (007)

$68.99

$

Usually ships in 4-12 days

0

2

Ariens 52601900

HANDLEBAR, UPPER LH-W/HW

Note: (009, 010, 011, 012, 028)

$156.99

$

Usually ships in 4-12 days

0

2

Ariens 00428451

HANDLEBAR, UPPER-LH

Note: (007)

$75.99

$

Usually ships in 4-12 days

0

3

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

Note: (007)

$3.99

$

In Stock, Qty 20+

0

4

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

Note: (007, 010, 012, 028)

$2.99

$

In Stock, only 4 left!

0

5

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (007, 010, 012, 028)

$2.49

$

In Stock, only 4 left!

0

5

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (009, 011)

$2.49

$

In Stock, only 4 left!

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (007, 010, 012, 028)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (009, 011)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00373251

HANDLEBAR, LOWER

$100.99

$

Usually ships in 4-12 days

0

8

Ariens 00393051

LEVER, RH-ATTACHMENT

$62.99

$

In Stock, only 4 left!

0

9

Ariens 00393151

LEVER, LH-TRACTION

$71.99

$

In Stock, only 4 left!

0

10

Ariens 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$6.99

$

In Stock, Qty 6

0

11

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

12

Ariens 52603700

PANEL-W/CONTROL HW DECAL
(Superseded to 52100400)

Note: (010, 011, 012, 028)

$209.99

$

Usually ships in 4-12 days

0

12

Ariens 52601200

PANEL-W/CONTROL HW DECAL

Note: (009)

$217.99

$

Usually ships in 4-12 days

0

12

Ariens 52601100

PANEL-W/CONTROL DECAL

Note: (007)

$244.99

$

Usually ships in 4-12 days

0

13

Ariens 00432500

LIGHT, HALOGEN ASSY.

$21.99

$

Usually ships in 4-12 days

0

14

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$14.99

$

In Stock, Qty 6

0

15

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

17

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, Qty 11

0

22

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07500038

BUMPER, RUBBER - PULL MOUNT

$

$

Not available

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
