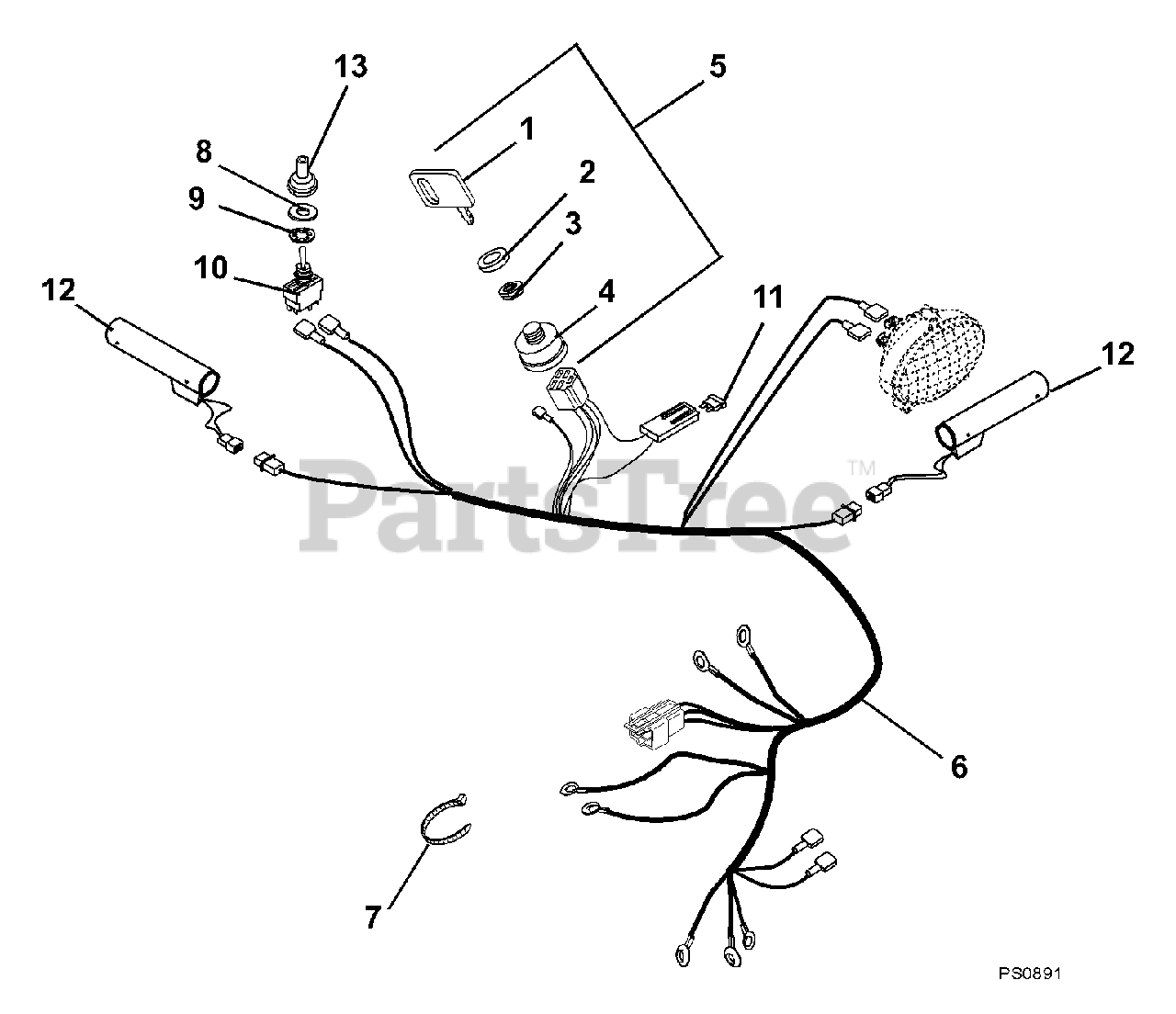

926004 (926 DLE) - Ariens 26" Snow Blower, 9hp Tecumseh (SN: 000101 - 001392) Electrical Parts Diagram

26" Snow Blower, 9hp Tecumseh

Electrical Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

Note: (500, 501)

$7.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

Note: (500, 501)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: (500, 501)

$7.99

$

Usually ships in 4-12 days

0

4

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (500, 501)

$56.99

$

In Stock, Qty 6

0

5

Ariens 52709300

SWITCH ASSEMBLY

Note: (Includes Items 1 thru 4) (500, 501)

$56.99

$

In Stock, Qty 6

0

6

Ariens 00432300

HARNESS, WIRE-LIGHT HANDWARMER
(Superseded to 00432301)

Note: (502, 503)

$59.99

$

Usually ships in 4-12 days

0

6

Ariens 00432400

HARNESS, WIRE-LT, HW, 12V
(Superseded to 00432401)

Note: (500, 501)

$96.99

$

Usually ships in 4-12 days

0

7

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

8

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

9

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

$2.49

$

In Stock, only 2 left!

0

10

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0

11

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

12

Ariens 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$46.99

$

In Stock, only 2 left!

0

13

Ariens 09207600

BOOT, SWITCH

Note: (Optional)

$45.99

$

Usually ships in 4-12 days

0
