926003 (1332 LE) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 001501 & Above) Continuity And Wiring Diagrams Parts Diagram

32" Snow Blower, 13hp Tecumseh

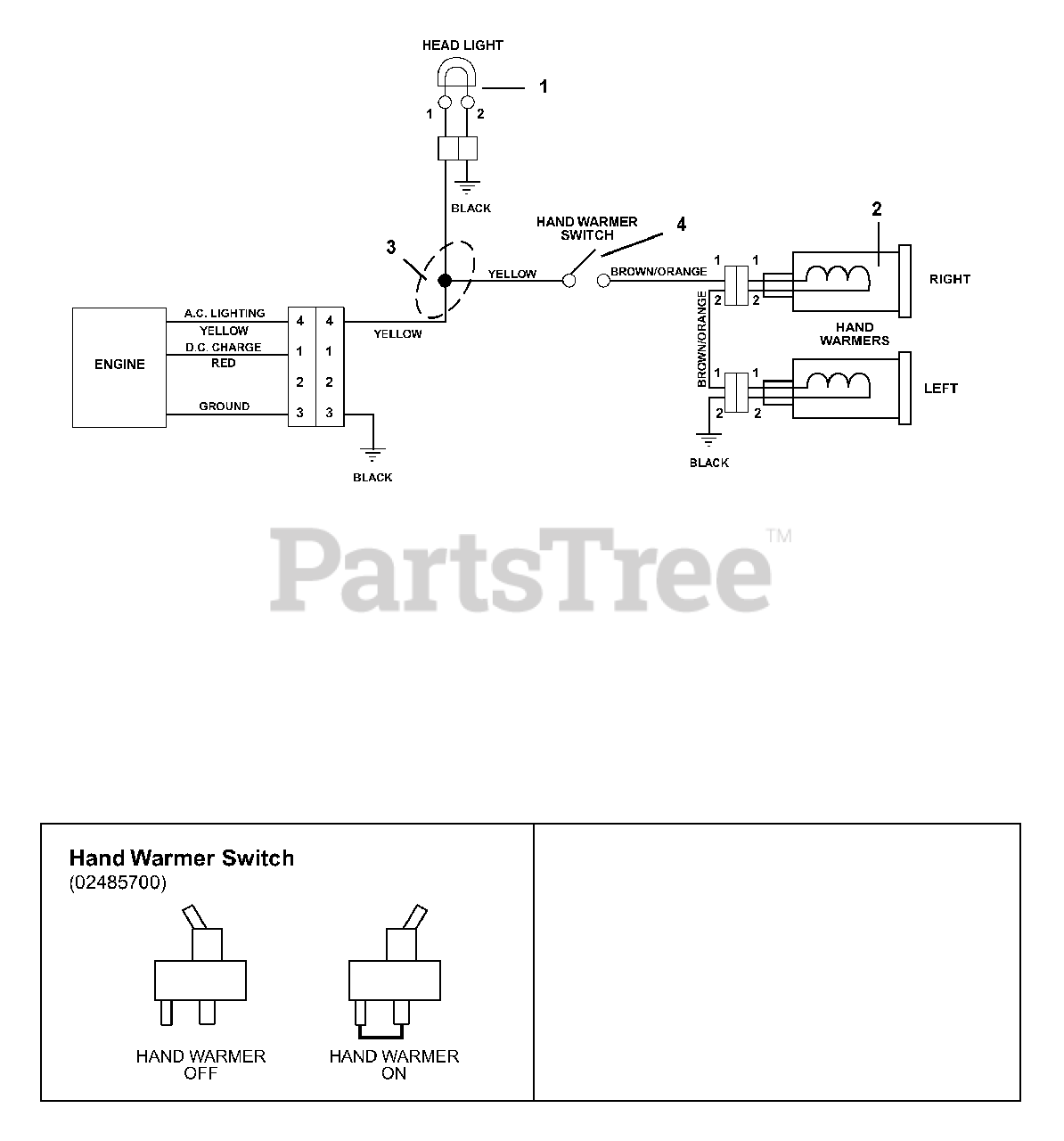

Continuity And Wiring Diagrams Parts Diagram

  • Title
1

Ariens 00432500

LIGHT, HALOGEN ASSY.

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$46.99

$

In Stock, only 2 left!

0

3

Ariens 00432300

HARNESS, WIRE-LIGHT HANDWARMER
(Superseded to 00432301)

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0

02485700

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0
