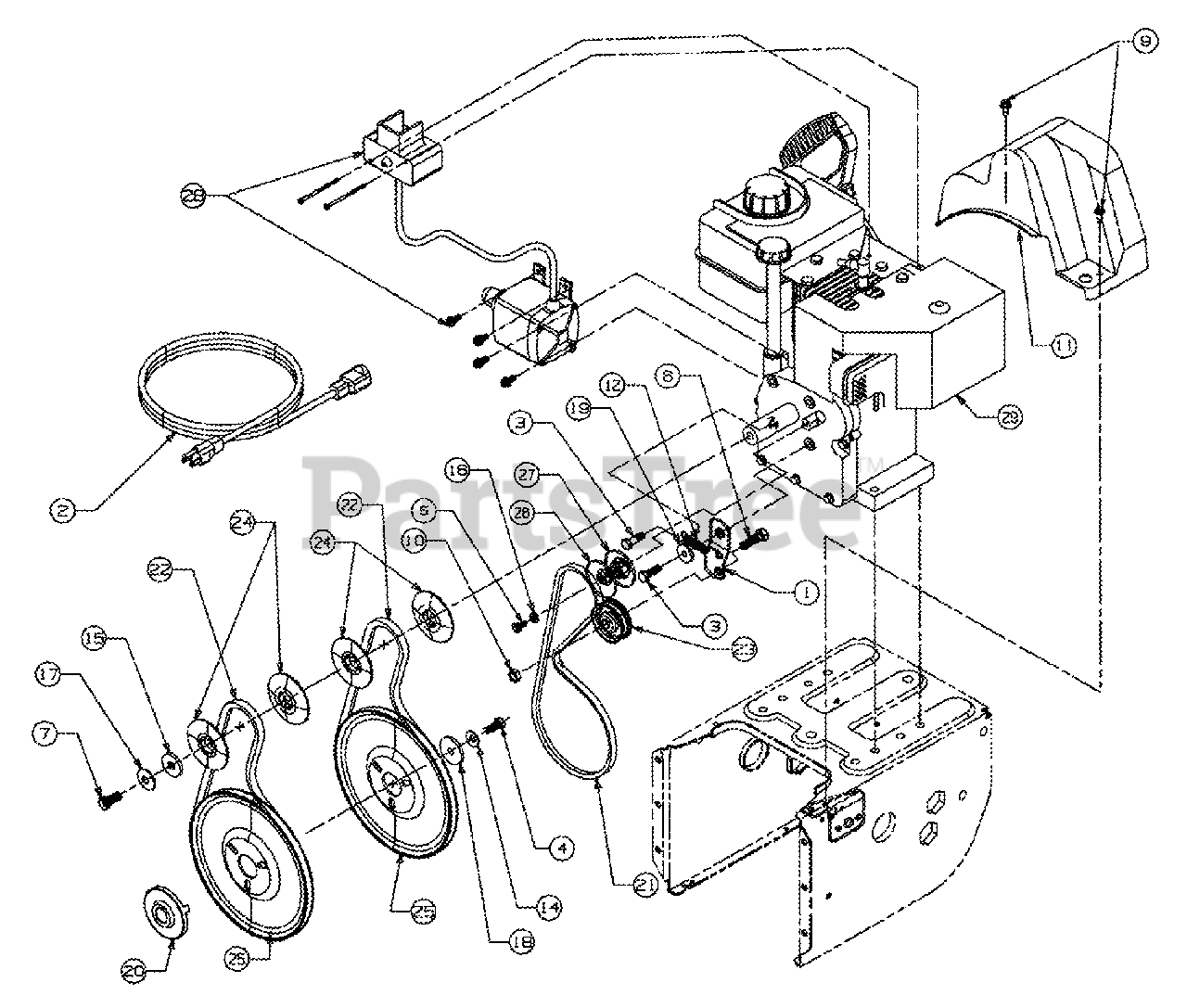

926 TE (31AE7E3F101) - Cub Cadet 26" Snow Thrower (1999) Drive Belts Parts Diagram

26" Snow Thrower

Drive Belts Parts Diagram

  • Title

1

Cub Cadet 05896A

Bracket-Idler

Variations

Cub Cadet 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 629-0071

Cord-Extension 110V
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

3

Cub Cadet 710-0627

Screw-Hex

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1245

Screw-Hex

$8.49

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0230

Screw-Hex

$

$

Not available

6

Cub Cadet 710-3005

Screw-Hex

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0696

Screw-Hex

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-1652

Screw-Hex

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0181

Nut-Hex

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 731-1324

Cover-Belt

$21.99

$

In Stock, only 4 left!

0

12

Cub Cadet 732-0710

Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 16

0

14

Cub Cadet 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0247

Washer-Flat

$9.49

$

In Stock, Qty 12

0

16

Cub Cadet 736-0270

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0331

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0505

Washer-Flat

$6.49

$

In Stock, Qty 11

0

19

Cub Cadet 748-0234

Spacer

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 748-0360

Adapter-Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

21

Cub Cadet 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

22

Cub Cadet 754-0430A

V-Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

Cub Cadet 756-0313

Idler-Flat

$26.99

$

In Stock, only 3 left!

0

24

Cub Cadet 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 756-0967

Pulley-Auger

$56.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 756-0986

Pulley Half

$

$

Not available

27

Cub Cadet 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

28

Cub Cadet 390-987

Electric Start Kit

$

$

Currently unavailable

29

UNKNOWN

$

$

Not available
