926 TE (31AE7E3F101) - Cub Cadet 26" Snow Thrower (1999) Blower Housing Parts Diagram

26" Snow Thrower

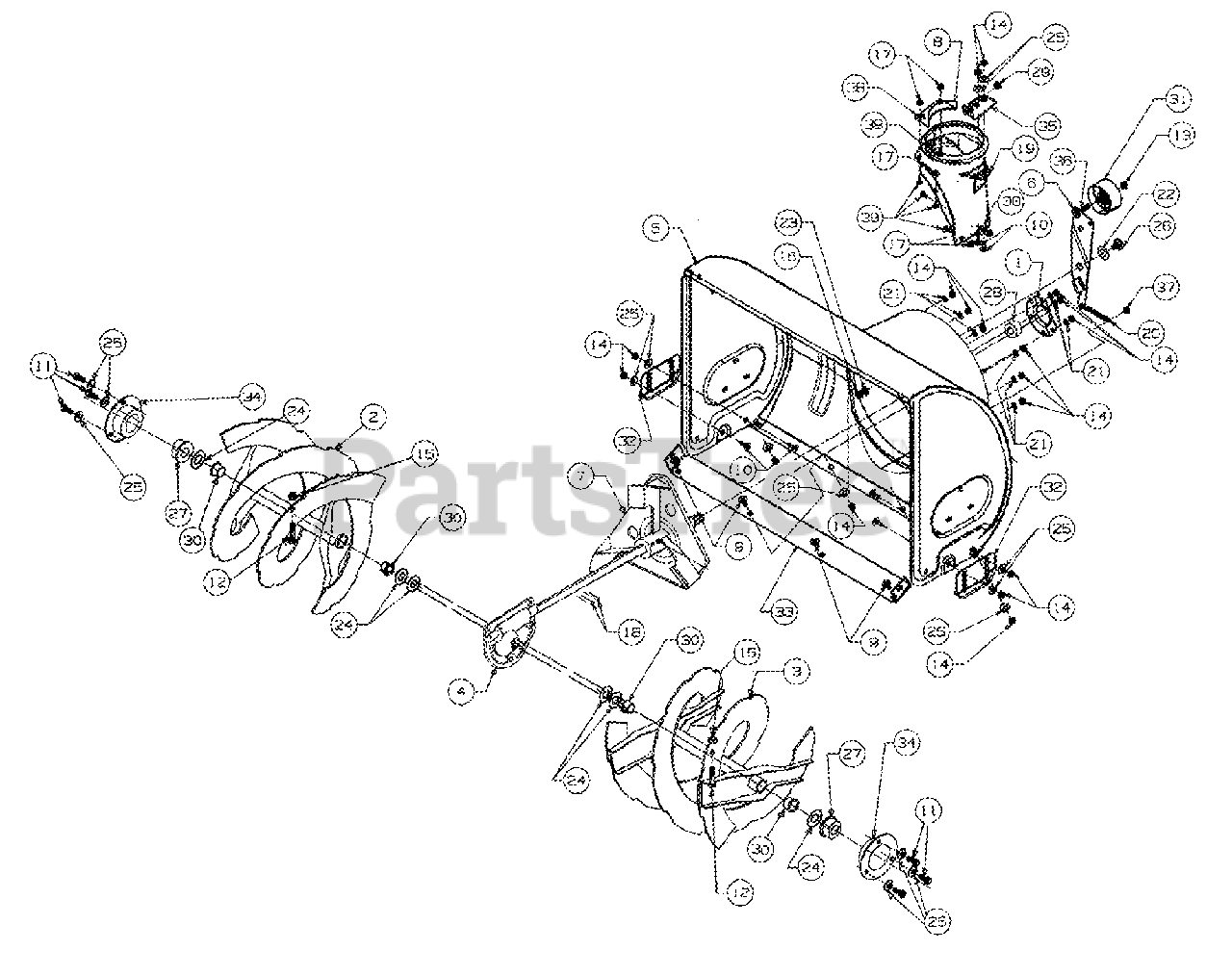

Blower Housing Parts Diagram

1

Cub Cadet 05931

Housing-Bearing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 605-5193A-0637

Spiral Assembly, LH 26" - POWDER BLACK (0637)
(Superseded to 684-04183-0637)

Variations

$

$

Not available

Cub Cadet 605-5249A-0637

Auger Spiral Assembly, LH 30" - POWDER BLACK (0637)
(Superseded to 684-04187-0637)

Variations

$

$

Not available

3

Cub Cadet 605-5192A-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)
(Superseded to 684-04182-0637)

Variations

$187.99

$

Usually ships in 3-6 days

0

Cub Cadet 605-5248A-0637

Auger Spiral Assembly, RH 30" - POWDER BLACK (0637)
(Superseded to 684-04186-0637)

Variations

$201.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-0121

Gear Assembly 26"
(Superseded to 918-0415B)

$442.99

$

Usually ships in 3-6 days

0

Cub Cadet 618-0160

Gear Assembly 30"
(Superseded to 918-0417B)

$400.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-0040B-0483

USE 684-0040D-0483 HOUSING AS - CHARCOAL GRAY (0483)
(Superseded to 684-0040D)

Variations

$

$

Not available

Cub Cadet 684-0055A-0638

30" HOUSING ASSEMBLY - MTD/TROY-BILT RED (0638)
(Superseded to 684-0055C)

Variations

$

$

Not available

6

Cub Cadet 784-5632-0637

USE 984-0064-0637 ARM ASSY-ID - POWDER BLACK (0637)
(Superseded to 984-0064-0637)

Variations

$32.99

$

In Stock, only 2 left!

0

7

Cub Cadet 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)
(Superseded to 984-0065-0637)

Variations

$90.99

$

In Stock, only 4 left!

0

8

Cub Cadet 705-5226-0498

Chute Reinforcement - OLD CUB YELLOW (0498)

Variations

$10.99

$

In Stock, Qty 6

0

9

Cub Cadet 710-0260

Screw-Carriage
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0451

Screw-Carriage

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0604

Screw-Hex
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0890A

Shear Bolt

$1.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0116

Nut-Hex Lock

$4.99

$

In Stock, only 3 left!

0

14

Cub Cadet 712-3010

Nut-Hex

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0429

Nut-Hex

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0798

Nut-Hex

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 712-0324

Nut-Hex Lock

$3.99

$

In Stock, Qty 8

0

18

Cub Cadet 715-0114

Pin-Spring

$9.49

$

In Stock, Qty 20+

0

19

Cub Cadet 731-1379

Adapter-Chute
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 6

0

20

Cub Cadet 732-0611

Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 10

0

21

Cub Cadet 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0174

Washer-Flat

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 736-0169

Washer-Lock

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0188

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 738-0281

Screw-Shoulder

$10.99

$

In Stock, only 2 left!

0

27

Cub Cadet 741-0245

Bearing-Flange
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

28

Cub Cadet 741-0309

Bearing-Ball
(Superseded to 941-0309)

$74.99

$

In Stock, Qty 20+

0

29

Cub Cadet 741-0475

Bushing-Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 741-0493A

Bushing-Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 756-0178

Idler-Flat

$20.99

$

In Stock, only 2 left!

0

32

Cub Cadet 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

Variations

$23.99

$

In Stock, Qty 20+

0

33

Cub Cadet 784-5579A-0629

Shave Plate, 26" Silver - SILVER FLAKE (0629)
(Superseded to 790-00121-0637)

Variations

$36.99

$

In Stock, Qty 9

0

Cub Cadet 784-5575-0637

Shave Plate, 30" Powder Black - POWDER BLACK (0637)
(Superseded to 790-00119-0637)

Variations

$39.99

$

In Stock, Qty 6

0

34

Cub Cadet 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)
(Superseded to 784-5618A-0637)

Variations

$13.99

$

In Stock, only 2 left!

0

35

Cub Cadet 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)
(Superseded to 784-5647-0637)

Variations

$14.99

$

In Stock, only 3 left!

0

36

Cub Cadet 710-0459A

Screw-Hex

$6.99

$

In Stock, Qty 16

0

37

Cub Cadet 712-3068

Nut-Hex
(Superseded to 912-3009)

$

$

Not available

38

Cub Cadet 736-0463

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0703

Screw-Carriage

$4.49

$

In Stock, Qty 20+

0
