926 TE (31AE753F100) - Cub Cadet 26" Snow Thrower Engine (1998) Engine Assembly & Muffler Parts Diagram

26" Snow Thrower Engine

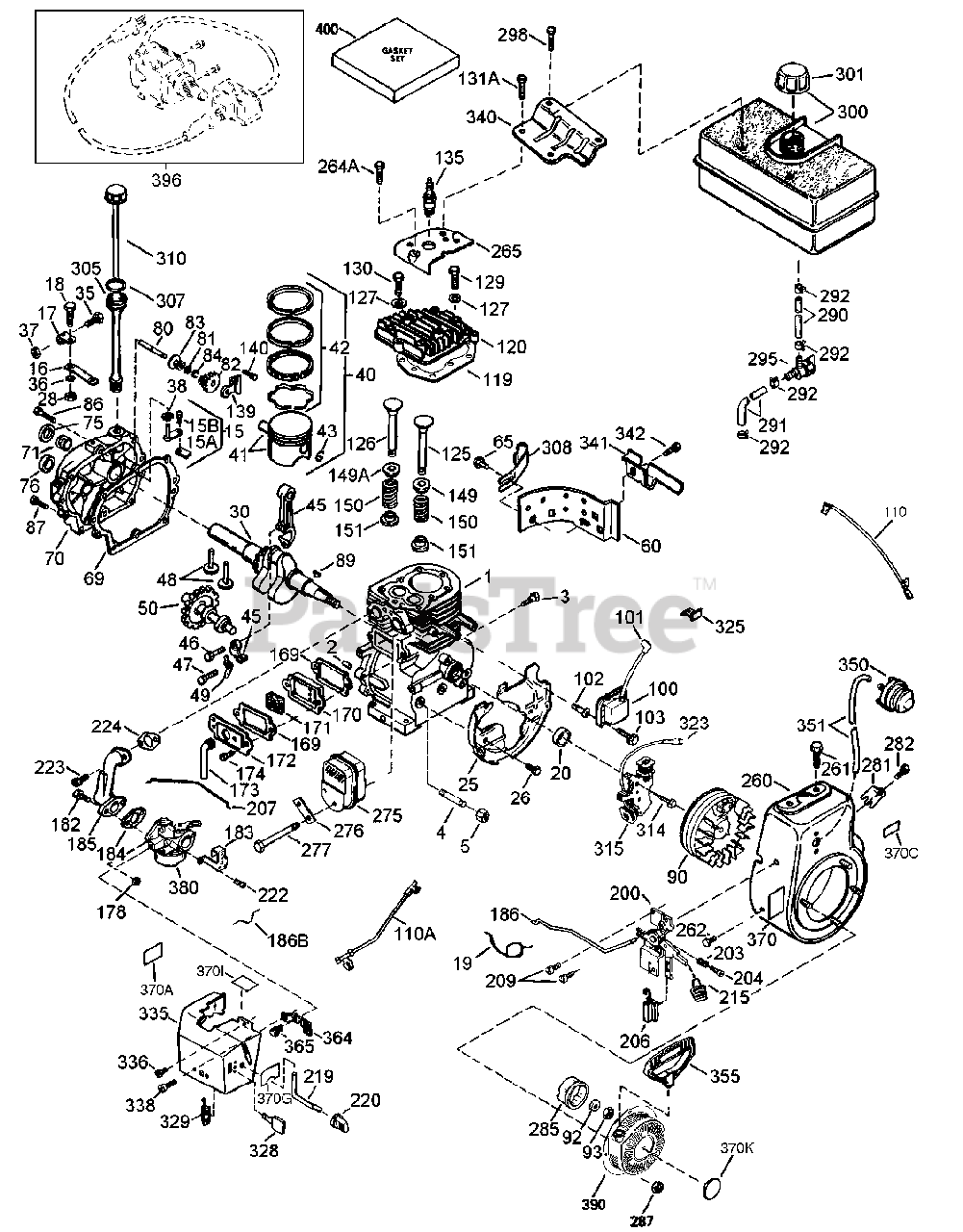

Engine Assembly & Muffler Parts Diagram

  • Title
1

Cub Cadet TC-35385

Cylinder

Note: (Includes dowel pin & seal)

$311.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-650820

Scrw, 1/4-20 x 1/2"

$3.99

$

In Stock, Qty 11

0

4

Cub Cadet TC-31857

Oil Drain Extension

$9.49

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-30969

Extension Cap

$5.49

$

In Stock, only 1 left!

0

15

Cub Cadet TC-30699C

Governor Rod

Note: (Incl. 15A & 15B)

$17.99

$

Usually ships in 3-12 days

0

15A

Cub Cadet TC-30700

Governor Yoke

$1.99

$

Usually ships in 3-12 days

0

15B

Cub Cadet TC-650494

Screw, 6-40 x 5/16"

$1.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-33454

Governor Lever
(Superseded to TC-33454A)

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-29916

Governor Lever Clamp

$1.99

$

In Stock, only 1 left!

0

18

Cub Cadet TC-651028

Screw, Torx T-15, 8-32 x 3/8"

$1.99

$

In Stock, only 4 left!

0

19

Cub Cadet TC-34663

Speed Control Spring

$1.99

$

In Stock, only 3 left!

0

20

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet TC-36460

Blower Housing Baffle
(Superseded to TC-37853)

$11.99

$

In Stock, only 1 left!

0

26

Cub Cadet TC-650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

28

Cub Cadet TC-30322

Lock Nut, 10-32

$1.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-35980A

Crankshaft

$

$

Not available

35

Cub Cadet TC-29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 3 left!

0

36

Cub Cadet TC-29918

Lock Washer

$1.99

$

In Stock, only 4 left!

0

37

Cub Cadet TC-29216

Lock Nut, 10-32

$1.99

$

In Stock, only 2 left!

0

38

Cub Cadet TC-29642

Retaining Ring

$100.99

$

In Stock, only 1 left!

0

40

Cub Cadet TC-40011

Piston, Pin & Ring Set (Standard)
(Superseded to TC-40049)

$

$

Not available

Cub Cadet TC-40012

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

41

Cub Cadet TC-40009

Piston & Pin Ass'y (Standard)
(Superseded to TC-40049)

Note: (Incl. 43)

$

$

Not available

Cub Cadet TC-40010

Piston & Pin Ass'y (.010" OS)

Note: (Incl. 43)

$

$

Not available

42

Cub Cadet TC-40013

Ring Set (Standard)

$28.99

$

In Stock, only 1 left!

0

Cub Cadet TC-40014

Ring Set (.010" OS)

$43.99

$

Usually ships in 3-12 days

0

43

Cub Cadet TC-27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Cub Cadet TC-36897

Connecting Rod Ass'y
(Superseded to TC-36897A)

Note: (Incl. 47 & 49)

$48.99

$

In Stock, only 1 left!

0

46

UNKNOWN

$

$

Not available

47

Cub Cadet TC-651033

Connecting Rod Bolt

$

$

Not available

48

Cub Cadet TC-34034

Valve Lifter
(Superseded to TC-34034A)

$10.99

$

In Stock, only 3 left!

0

49

Cub Cadet TC-36896

Oil Dipper

$1.99

$

Usually ships in 3-12 days

0

50

Cub Cadet TC-36655

Camshaft (MCR)

$

$

Not available

60

Cub Cadet TC-33273A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

69

Cub Cadet TC-35262A

Cylinder Cover Gasket
(Superseded to TC-37342)

$11.99

$

Usually ships in 3-12 days

0

70

Cub Cadet TC-35445A

Cylinder Cover

Note: (Incl. 75, 80)

$

$

Not available

71

Cub Cadet TC-35377

Crankshaft Bushing

$11.99

$

In Stock, only 2 left!

0

75

$4.99

$

In Stock, only 2 left!

0

76

$9.49

$

Usually ships in 3-12 days

0

80

Cub Cadet TC-31845

Governor Shaft

$

$

Not available

$1.99

$

In Stock, Qty 5

0

82

Cub Cadet TC-35378

Governor Gear Ass'y

Note: (Incl. 81)

$3.99

$

Usually ships in 3-12 days

0

83

Cub Cadet TC-30588A

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

Cub Cadet TC-29193

Retaining Ring

$1.99

$

In Stock, only 3 left!

0

86

Cub Cadet TC-650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

87

Cub Cadet TC-650832

Screw, 1/4-20 x 1-11/16"

$

$

Not available

89

Cub Cadet TC-32589

Flywheel Key

$1.49

$

In Stock, only 4 left!

0

90

$

$

Not available

92

Cub Cadet TC-650880

Lock Washer

$1.99

$

In Stock, only 3 left!

0

93

Cub Cadet TC-650881

Flywheel Nut

$1.99

$

In Stock, only 1 left!

0

100

Cub Cadet TC-35135

Solid State Ignition
(Superseded to TC-35135B)

$62.99

$

Usually ships in 3-12 days

0

101

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

102

Cub Cadet TC-651024

Solid State Mounting Screw

$3.99

$

In Stock, only 2 left!

0

103

Cub Cadet TC-651007

Screw, Torx T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-35187

Ground Wire

$

$

Not available

110A

Cub Cadet TC-37047

Ground Wire

$1.99

$

In Stock, Qty 5

0

119

Cub Cadet TC-36448

Cylinder Head Gasket

$9.99

$

In Stock, Qty 6

0

120

Cub Cadet TC-36449

Cylinder Head

$

$

Not available

125

Cub Cadet TC-27878A

Exhaust Valve (Standard)

Note: (Incl. 151)

$23.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-27880A

Exhaust Valve (1/32" OS)

Note: (Incl. 151)

$

$

Not available

126

Cub Cadet TC-34035

Intake Valve (Standard)

Note: (Incl. 151)

$15.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-34036

Intake Valve (1/32" OS)

Note: (Incl. 151)

$

$

Not available

127

$1.99

$

Usually ships in 3-12 days

0

?128

Cub Cadet TC-650690

Bell Washer
(Superseded to TC-730324)

$

$

Not available

129

Cub Cadet TC-650727

Screw, 5/16-18 x 1-3/4"

$3.99

$

In Stock, only 2 left!

0

130

Cub Cadet TC-6021A

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, Qty 6

0

131A

Cub Cadet TC-650713

Screw, 5/16-20 x 5/8"
(Superseded to TC-651055)

$

$

Not available

135

Cub Cadet 759-3331

Resistor Spark Plug (J8C/356)

$3.99

$

In Stock, only 2 left!

0

139

Cub Cadet TC-33369

Governor Gear Bracket

$8.49

$

In Stock, only 1 left!

0

140

Cub Cadet TC-650836

Screw, 10-24 x 1/2"

$

$

Not available

149

Cub Cadet TC-27882

Valve Spring Cap

$1.99

$

In Stock, Qty 5

0

149A

Cub Cadet TC-35862

Valve Spring Cap

$9.49

$

Usually ships in 3-12 days

0

150

Cub Cadet TC-27881

Valve Spring

$3.99

$

Usually ships in 3-12 days

0

151

Cub Cadet TC-32581

Valve Spring Keeper

$6.49

$

In Stock, Qty 8

0

169

Cub Cadet TC-27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 5

0

170

Cub Cadet TC-28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Cub Cadet TC-28424

Breather Element

$3.99

$

Usually ships in 3-12 days

0

172

Cub Cadet TC-28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Cub Cadet TC-35350

Breather Tube

$6.49

$

In Stock, only 1 left!

0

174

Cub Cadet TC-650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

178

Cub Cadet TC-29752

Nut and Lock Washer, 1/4-28

$1.99

$

In Stock, Qty 7

0

182

Cub Cadet TC-30088A

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 2 left!

0

183

Cub Cadet TC-34587A

Choke Bracket

$9.49

$

In Stock, only 1 left!

0

184

Cub Cadet TC-33263

Carb. to Intake Pipe Gasket

$1.49

$

In Stock, Qty 15

0

185

Cub Cadet TC-33877

Intake Pipe

$48.99

$

Usually ships in 3-12 days

0

186

Cub Cadet TC-34667

Governor Link

$1.99

$

In Stock, only 3 left!

0

186B

Cub Cadet TC-36652

Choke Spring

$7.49

$

In Stock, Qty 5

0

200

Cub Cadet TC-34677

Control Bracket

Note: (Incl. 19, 203 & 204)

$

$

Not available

203

Cub Cadet TC-31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Cub Cadet TC-651029

Screw, Torx T-10, 5-40 x 7/16"

$1.99

$

In Stock, only 2 left!

0

206

$3.99

$

In Stock, only 4 left!

0

207

Cub Cadet TC-33878

Throttle Link

$6.99

$

In Stock, only 1 left!

0

209

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, only 4 left!

0

215

Cub Cadet TC-35440

Control Knob

$3.99

$

In Stock, Qty 12

0

219

Cub Cadet TC-34586

Choke Rod

$5.49

$

Usually ships in 3-12 days

0

220

Cub Cadet TC-35438

Choke Knob

$3.99

$

In Stock, Qty 11

0

222

Cub Cadet TC-28820

Screw, 10-32 x 1/2"
(Superseded to TC-651081)

$4.49

$

In Stock, only 3 left!

0

223

Cub Cadet TC-650378

Screw, Torx T-30, 5/16 -18 x 1-1/8"

$1.99

$

In Stock, only 3 left!

0

224

Cub Cadet TC-27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 14

0

260

Cub Cadet TC-35447A

Blower Housing
(Superseded to TC-37961)

$

$

Not available

261

Cub Cadet TC-650788

Screw, 5/16-18 x 3/4"

$1.99

$

In Stock, only 1 left!

0

262

Cub Cadet TC-29747B

Screw, Torx T-40, 5/16-24 x 21/32"

$1.99

$

In Stock, Qty 9

0

264A

Cub Cadet TC-650802

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, Qty 5

0

265

Cub Cadet TC-33272B

Cylinder Head Cover
(Superseded to TC-33272D)

$7.49

$

In Stock, only 1 left!

0

275

$62.99

$

In Stock, only 1 left!

0

276

Cub Cadet TC-31588

Locking Plate

$4.99

$

In Stock, Qty 18

0

277

Cub Cadet TC-651002

Screw, 5/16-18 x 4-3/16"

$4.49

$

In Stock, Qty 9

0

281

Cub Cadet TC-33013

Starter Bubble Cover

$3.99

$

Usually ships in 3-12 days

0

282

Cub Cadet TC-650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, Qty 7

0

285

Cub Cadet TC-35985B

Starter Cup
(Superseded to TC-35985C)

$13.99

$

Usually ships in 3-12 days

0

287

Cub Cadet TC-29752

Nut & Lock Washer, 1/4 -28

$1.99

$

In Stock, Qty 7

0

290

Cub Cadet TC-29774

Fuel Line

$34.99

$

In Stock, Qty 5

0

291

Cub Cadet TC-30705

Fuel Line

$16.99

$

In Stock, only 4 left!

0

292

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

295

Cub Cadet TC-35857

Fuel Shut-Off Valve

$13.99

$

In Stock, Qty 11

0

298

UNKNOWN

$

$

Not available

300

Cub Cadet TC-34156A

Fuel Tank

Note: (Incl. 292 & 301)

$54.99

$

Usually ships in 3-12 days

0

301

Cub Cadet TC-35355

Fuel Cap
(Superseded to TC-37845)

$8.99

$

In Stock, Qty 7

0

305

Cub Cadet TC-35554

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

307

$1.49

$

In Stock, only 3 left!

0

308

Cub Cadet TC-35540

Fill Tube Clip

$1.99

$

In Stock, only 2 left!

0

310

$10.99

$

In Stock, only 1 left!

0

314

Cub Cadet TC-650873

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

315

Cub Cadet TC-611111

Alternator Coil (18 Watt)

Note: (Incl. 323)

$68.99

$

Usually ships in 3-12 days

0

323

$1.99

$

Usually ships in 3-12 days

0

325

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, only 4 left!

0

328

Cub Cadet 725-1660

Key Switch (Push-In)
(Superseded to TC-35062)

$3.99

$

In Stock, only 4 left!

0

329

$3.99

$

In Stock, only 4 left!

0

335

Cub Cadet TC-35057A

Carburetor Cover
(Superseded to TC-36547A)

$70.99

$

In Stock, only 1 left!

0

336

Cub Cadet TC-650765

Screw, 10-32 x 1/2"

$1.49

$

Usually ships in 3-12 days

0

338

Cub Cadet TC-28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 4 left!

0

340

Cub Cadet TC-34154

Fuel Tank Bracket

$

$

Not available

341

Cub Cadet TC-34155

Fuel Tank Bracket

$

$

Not available

342

Cub Cadet TC-650561

Screw,1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

350

Cub Cadet TC-570682

Primer Ass'y
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 5

0

351

Cub Cadet TC-32180C

Primer Line

$6.99

$

In Stock, Qty 10

0

355

Cub Cadet TC-590574

Mitten Grip Starter Handle

$5.49

$

In Stock, only 1 left!

0

364

Cub Cadet TC-33377

Carburetor Cover Bracket
(Superseded to TC-37659)

$

$

Not available

365

Cub Cadet TC-650767

Screw, 8-32 x 27/64"

$1.49

$

In Stock, only 2 left!

0

370

Cub Cadet TC-36261

Identification Decal

$

$

Not available

370A

Cub Cadet TC-36534

Instruction Decal

$

$

Not available

370C

Cub Cadet TC-36501

Primer Decal

$2.49

$

In Stock, only 2 left!

0

370G

Cub Cadet TC-35077

Instruction Decal

$

$

Not available

370I

Cub Cadet TC-34414

Warning Decal

$

$

Not available

370K

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 4 left!

0

380

Cub Cadet TC-640052

Carburetor
(Superseded to TC-640349)

Note: (Incl. 184)

$109.99

$

Usually ships in 3-12 days

0

390

Cub Cadet TC-590733

Rewind Starter
(Superseded to TC-590789)

$87.99

$

Usually ships in 3-12 days

0

396

Cub Cadet TC-33329D

Electric Starter
(Superseded to TC-33329H)

$

$

Not available

400

Cub Cadet TC-36450A

Gasket Set,

Note: Includes P/N's: TC-27272A (1), TC-27896A (2), TC-27915A (1), TC-29673 (1), TC-33263 (1), TC-33629 (1), TC-34698A (1), TC-35262 (1), TC-36448

$

$

Not available
