926 TE (31AE753F100) - Cub Cadet 26" Snow Thrower Engine (1998) Carburetor & Starter Parts Diagram

26" Snow Thrower Engine

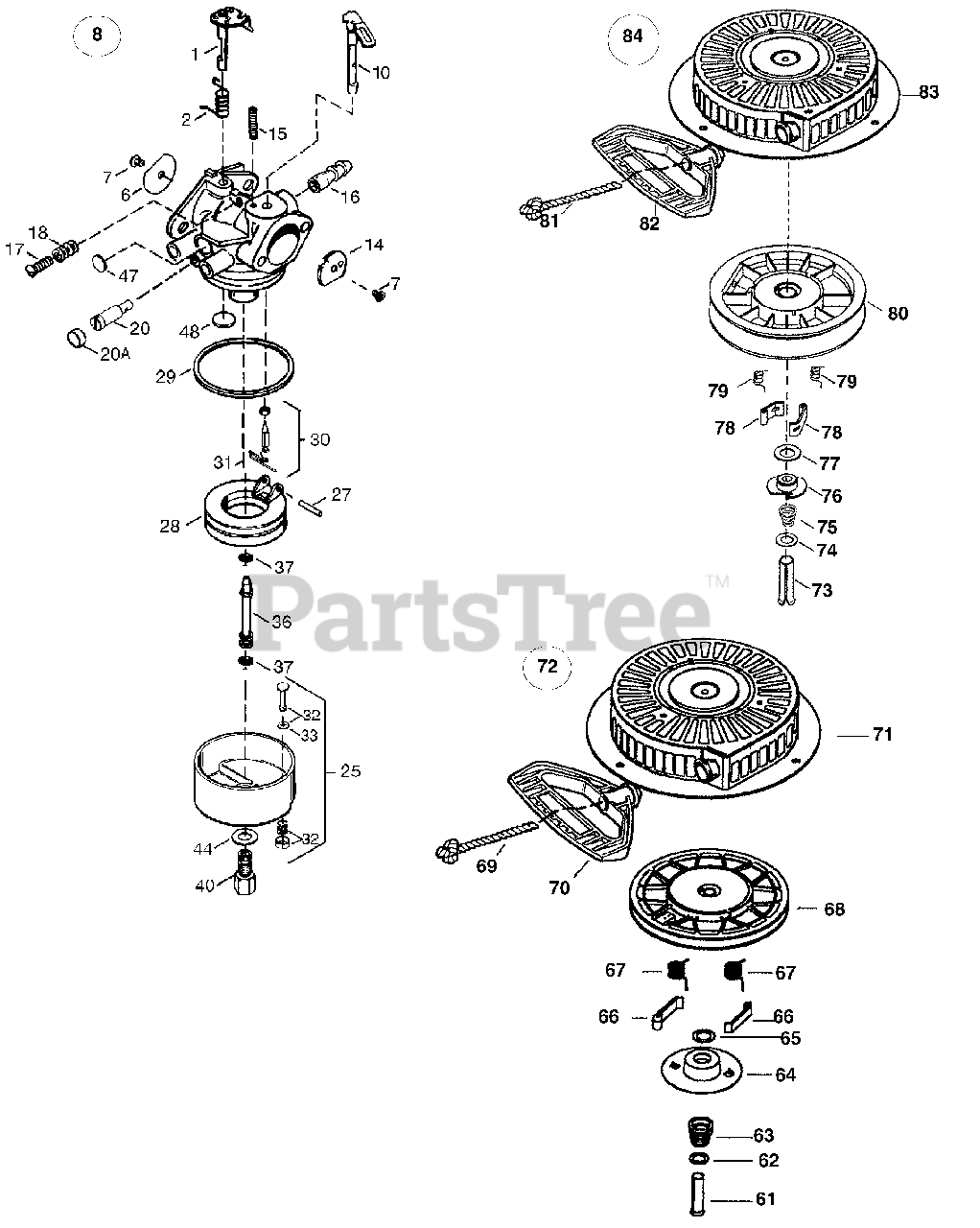

Carburetor & Starter Parts Diagram

  • Title

1

Cub Cadet TC-631776A

Throttle Shaft & Lever Ass'y

$16.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631970

Throttle Return Spring

$4.49

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-631778

Throttle Shutter

$1.99

$

In Stock, only 3 left!

0

7

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 17

0

8

UNKNOWN

$

$

Not available

10

Cub Cadet TC-632112

Choke Shaft & Lever Ass'y

$7.49

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-632174

Choke Shutter

$4.49

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-650417

Throttle Crack/Idle Speed Screw
(Superseded to TC-651025)

$1.99

$

In Stock, Qty 5

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

20

Cub Cadet TC-640016

Idle Restrictor Screw

$9.49

$

In Stock, Qty 9

0

20A

Cub Cadet TC-640053

Idle Restrictor Screw Cap
(Superseded to TC-640200)

$1.99

$

In Stock, Qty 6

0

25

Cub Cadet TC-631951

Float Bowl Ass'y

Note: (Incl. 32 & 33)

$17.99

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 11

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

29

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 15

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

$6.99

$

In Stock, Qty 6

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-27136A

Bowl Drain Ass'y

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-27554

Drain Plunger Gasket

$1.49

$

In Stock, Qty 16

0

36

Cub Cadet TC-640005

Main Nozzle Tube

$6.99

$

In Stock, Qty 5

0

37

Cub Cadet TC-632547

"O" Ring, Main Nozzle Tube

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet TC-640055

High Speed Bowl Nut

$7.49

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

$2.49

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 2 left!

0

61

Cub Cadet TC-590599A

Spring Pin,

Note: (Incl. 52)

$5.49

$

In Stock, only 2 left!

0

62

Cub Cadet TC-590600

Washer

$1.99

$

In Stock, only 4 left!

0

63

Cub Cadet TC-590697

Brake Spring

$3.99

$

Usually ships in 3-12 days

0

64

Cub Cadet TC-590696

Retainer

$7.49

$

In Stock, only 1 left!

0

65

Cub Cadet TC-590601

Washer

$1.99

$

In Stock, only 4 left!

0

66

Cub Cadet TC-590698

Starter Dog

$6.99

$

In Stock, only 4 left!

0

67

Cub Cadet TC-590699

Dog Spring

$7.49

$

In Stock, only 2 left!

0

68

Cub Cadet TC-590709

Pulley & Rewind Spring Ass'y

$18.99

$

In Stock, only 1 left!

0

69

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, Qty 14

0

70

Cub Cadet TC-590574

Mitten Grip Starter Handle

$5.49

$

In Stock, only 1 left!

0

71

Cub Cadet TC-590734

Starter Housing Ass'y

$34.99

$

Usually ships in 3-12 days

0

72

Cub Cadet TC-590733

Rewind Starter Ass'y
(Superseded to TC-590789)

$87.99

$

In Stock, only 1 left!

0

73

Cub Cadet TC-590599A

Spring Pin,

Note: (Incl. 52)

$5.49

$

In Stock, only 2 left!

0

74

Cub Cadet TC-590600

Washer

$1.99

$

In Stock, only 4 left!

0

75

Cub Cadet TC-590678

Brake Spring

$3.49

$

Usually ships in 3-12 days

0

76

Cub Cadet TC-590679

Retainer

$3.99

$

Usually ships in 3-12 days

0

77

Cub Cadet TC-590601

Washer

$1.99

$

In Stock, only 4 left!

0

78

Cub Cadet TC-590680

Starter Dog

$5.99

$

In Stock, Qty 6

0

79

Cub Cadet TC-590412

Dog Spring

$8.49

$

In Stock, only 2 left!

0

80

Cub Cadet TC-590682

Pulley & Rewind Spring Ass'y

$

$

Not available

81

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, Qty 14

0

82

Cub Cadet TC-590574

Mitten Grip Starter Handle

$5.49

$

In Stock, only 1 left!

0

83

Cub Cadet TC-590750

Starter Housing Ass'y

$

$

Not available

84

Cub Cadet TC-590749

Rewind Starter Ass'y
(Superseded to TC-590789)

$87.99

$

In Stock, only 1 left!

0
