926 TE (31AE753F100) - Cub Cadet 26" Snow Thrower (1998) Gear Assembly Parts Diagram

26" Snow Thrower

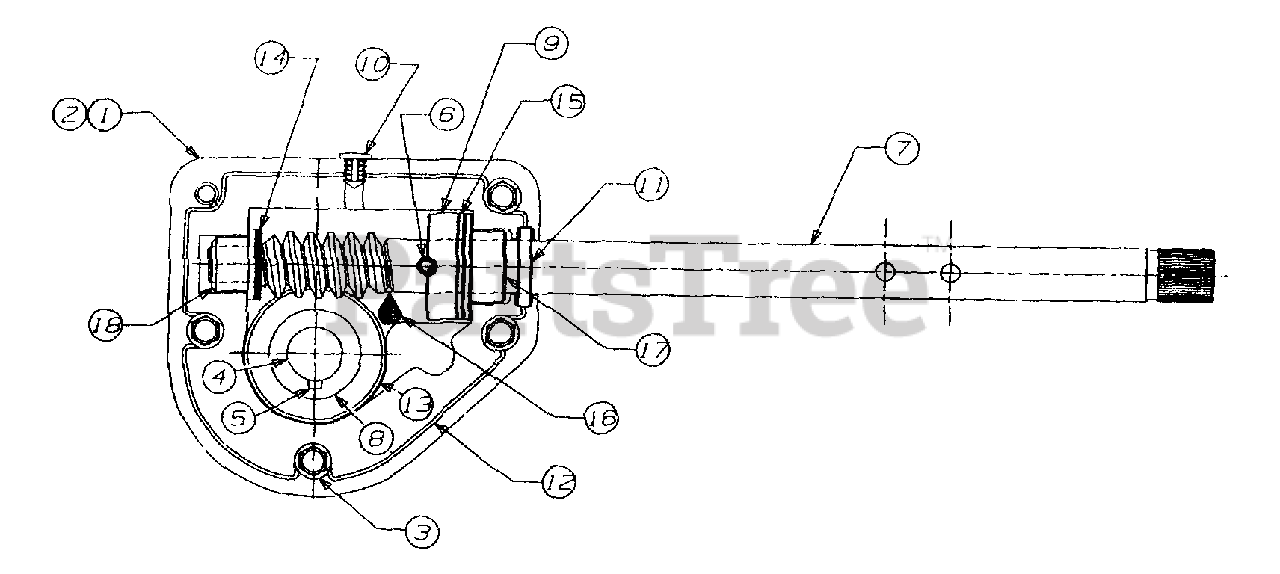

Gear Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0123

Housing - R.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-0124

Housing - L.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 17

0

3

Cub Cadet 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0909

Axle, Spiral 26"
(Superseded to 711-0909A)

$

$

Not available

Cub Cadet 711-1024

Axle, Spiral 30"
(Superseded to 711-1024A)

$136.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-0161

Key, Hi-Pro
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 715-0143

Pin, Spiral

$4.99

$

In Stock, Qty 15

0

7

Cub Cadet 717-0526

Worm, Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

8

Cub Cadet 717-0528

Gear, Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

Cub Cadet 718-0186

Collar, Thrust

$8.49

$

In Stock, Qty 12

0

10

Cub Cadet 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 721-0327

Seal, Oil

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 721-0328

Loctite 5699, Ultra

$

$

Currently unavailable

13

Cub Cadet 736-0351

Washer

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0369

Washer

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0445

Washer

$4.49

$

In Stock, Qty 13

0

16

Cub Cadet 737-0168

Grease
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 14

0

17

Cub Cadet 741-0662

Bearing Flange

$10.99

$

In Stock, Qty 18

0

18

Cub Cadet 741-0663

Bearing Flange

$9.99

$

In Stock, Qty 20+

0
