926 TE (317E753F100) - Cub Cadet 26" Snow Thrower (1997) Drive Parts Diagram

26" Snow Thrower

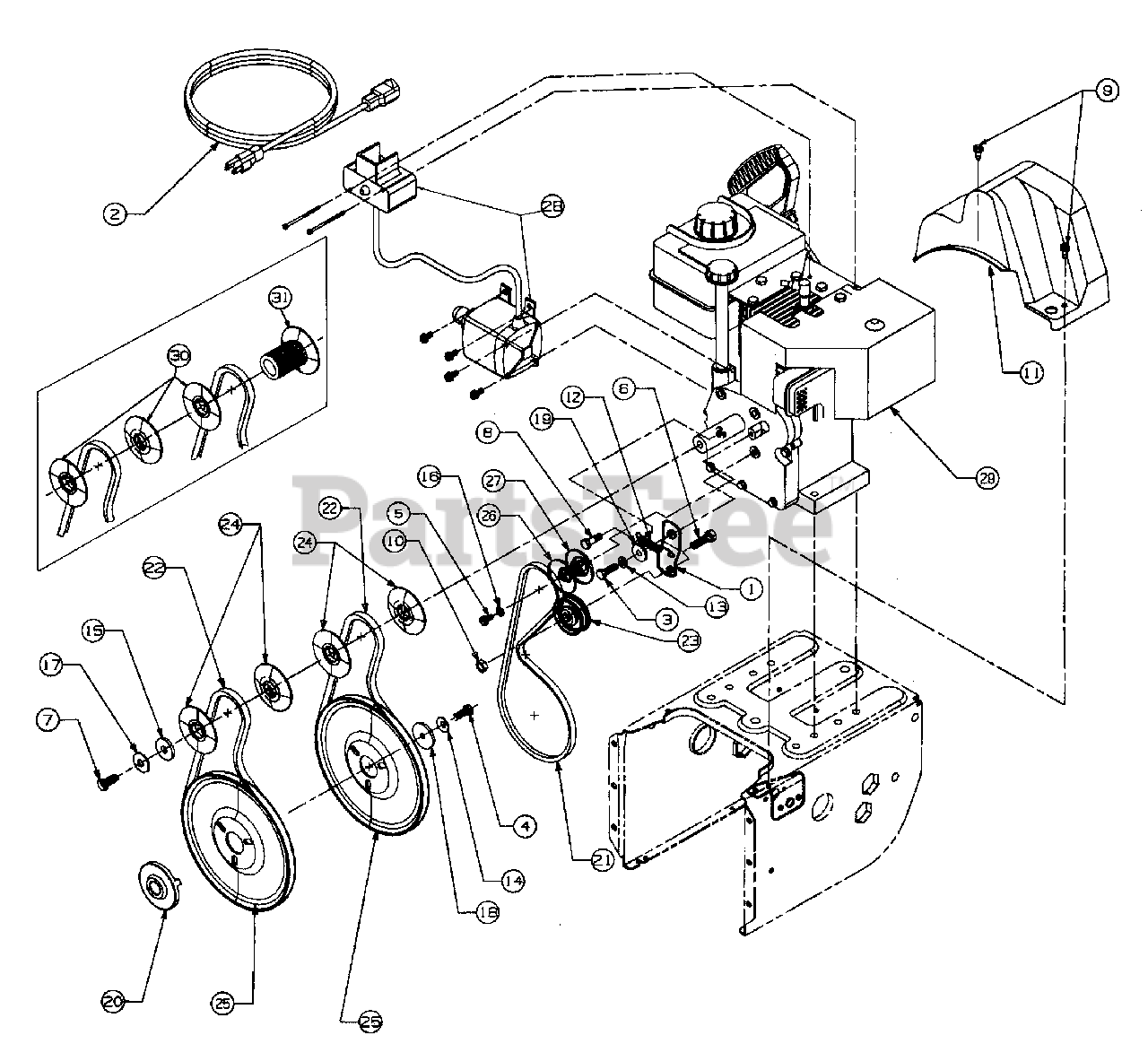

Drive Parts Diagram

  • Title

1

Cub Cadet 05896A

Bracket, Drive Idler

Variations

Cub Cadet 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 629-0071

Cord, Extension
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-0117

Screw, Hex Cap 5/16-24 x 1.0 GR5
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0157

Screw, Hex Cap 5/16-24 x .75 GR5

$4.49

$

In Stock, Qty 18

0

5

Cub Cadet 710-0230

Screw, Hex Cap, 1/4-28 x .5

$

$

Not available

6

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 x 1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0459

Screw, Hex Cap 3/8-24 x 1.5 GR5 (724TE only)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

Cub Cadet 710-0696

Screw, Hex Cap 3/8-24 x .875 GR8 (926TE only)

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0888

Screw, Hex Cap 5/16-24 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0896

Screw, Hex Wash Hd Tapp 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0181

Nut, Hex Jam Lok, 3/8-16

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 731-1324

Belt Cover

$21.99

$

In Stock, Qty 11

0

12

Cub Cadet 732-0710

Spring, Extension
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 18

0

13

Cub Cadet 736-0119

Washer, Lock 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .06

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0247

Washer, Flat, .406 x 1.25 Hdn

$9.49

$

In Stock, Qty 14

0

16

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

Cub Cadet 736-0331

Washer, Bell, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0505

Washer, Flat, .34 x 1.5 x .15 Hdn

$6.49

$

In Stock, Qty 11

0

19

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 748-0360

Pulley Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

21

Cub Cadet 754-0346

V-Belt, 3/8 x 30.0
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

22

Cub Cadet 754-0430

V-Belt, 3V x 34.9
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

Cub Cadet 756-0313

Pulley, Flat Idler

$26.99

$

In Stock, Qty 5

0

24

Cub Cadet 756-0569

Pulley Half (926TE only)

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 756-0967

Pulley, Auger

$56.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 756-0986

Pulley Half

$

$

Not available

27

Cub Cadet 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

28

Cub Cadet 390-985

Starter Kit (724TE)

$

$

Currently unavailable

Cub Cadet 390-987

Starter Kit (926TE)

$

$

Currently unavailable

29

Engine

$

$

Not available

30

Cub Cadet 756-0620

Pulley Half (724TE only)

$

$

Not available

31

Cub Cadet 756-0621

PUlley Half (724TE only)

$

$

Not available
