926 SWE (31AH5C3F100) - Cub Cadet 26" Snow Thrower Engine (2002) Carburetor Parts Diagram

26" Snow Thrower Engine

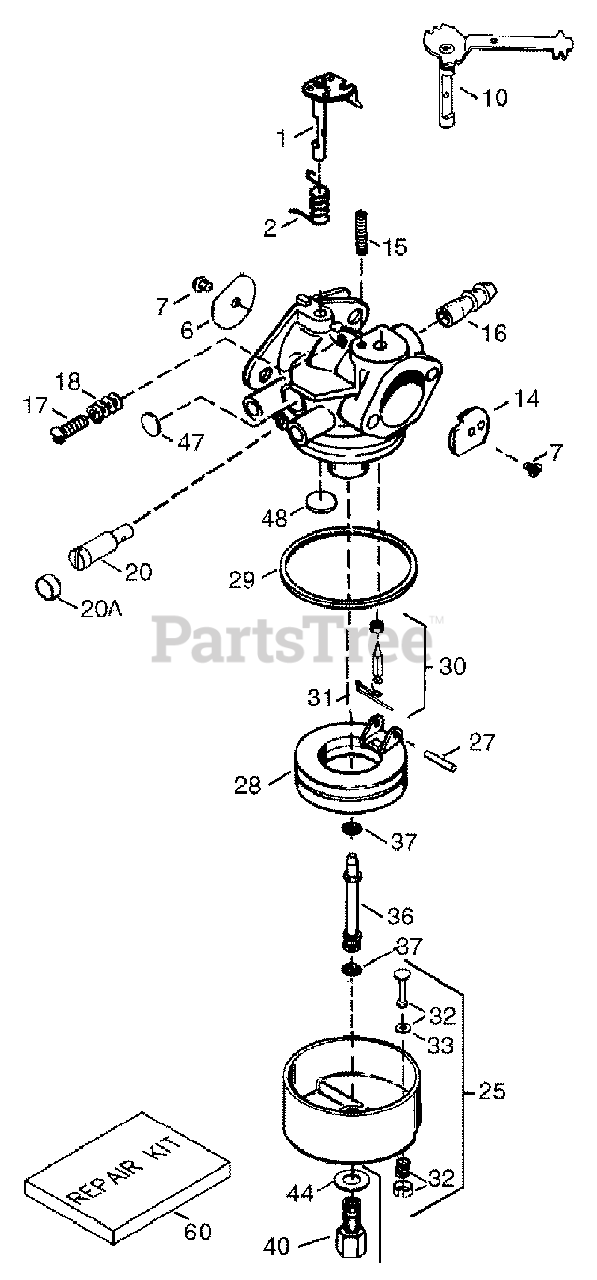

Carburetor Parts Diagram

  • Title

Cub Cadet TC-640052

Carburetor
(Superseded to TC-640349)

Note: (Incl. 184 of Engine Parts List)

$109.99

$

Usually ships in 3-12 days

0

1

Cub Cadet TC-631776A

Throttle Shaft & Lever Assembly

$16.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631970

Throttle Return Spring

$4.49

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-631778

Throttle Shutter

$1.99

$

In Stock, only 3 left!

0

7

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 14

0

10

Cub Cadet TC-632112

Choke Shaft & Lever Assembly

$7.49

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-632174

Choke Shutter

$4.49

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-651025

Throttle Crack Screw/Idle Speed Screw

$1.99

$

In Stock, only 4 left!

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, Qty 5

0

20

Cub Cadet TC-640016

Idle Restrictor Screw

$9.49

$

In Stock, Qty 8

0

20A

Cub Cadet TC-640053

Idle Restrictor Screw Cap
(Superseded to TC-640200)

$1.99

$

In Stock, Qty 5

0

25

Cub Cadet TC-631951

Float Bowl Ass'y

Note: (Incl. 32 & 33)

$17.99

$

In Stock, only 2 left!

0

27

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 10

0

$

$

Currently unavailable

29

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 16

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl. 31)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-27136A

Bowl Drain Assembly

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-27554

Drain Plunger Gasket

$1.49

$

In Stock, Qty 15

0

36

Cub Cadet TC-640005

Main Nozzle Tube

$6.99

$

In Stock, Qty 5

0

37

Cub Cadet TC-632547

"O" Ring, Main Nozzle Tube

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet TC-640055

High Speed Bowl Nut

$7.49

$

In Stock, only 1 left!

0

44

Cub Cadet TC-27110A

Bowl Nut Washer

$2.49

$

In Stock, Qty 6

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 1 left!

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

60

Cub Cadet TC-632760B

Repair Kit

Note: (Incl. items marked PK in notes)

$27.99

$

In Stock, Qty 5

0
