926 STE (31AH7E3F100) - Cub Cadet 26" Snow Thrower (2001) Labels Parts Diagram

26" Snow Thrower

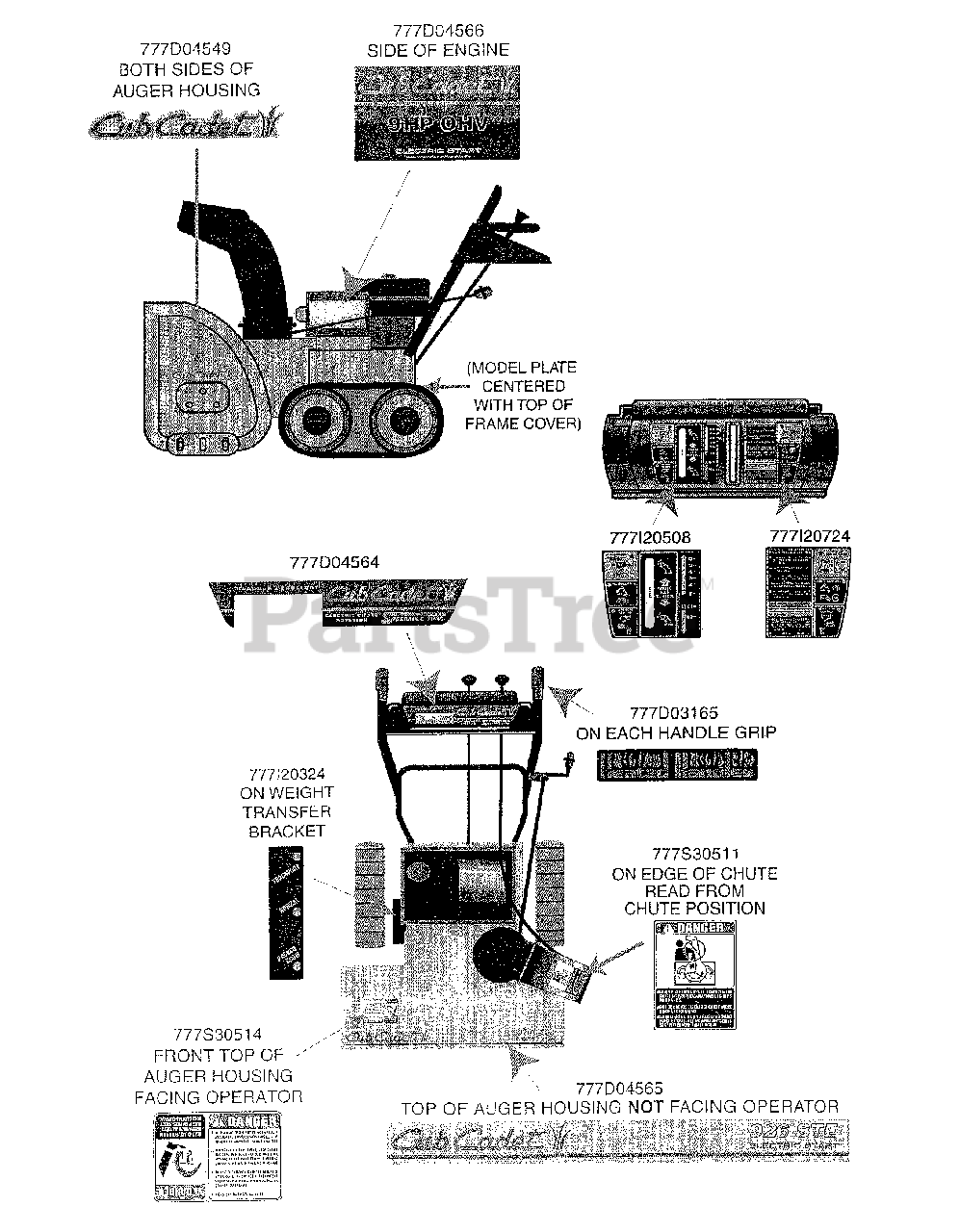

Labels Parts Diagram

  • Title
777D04549

Cub Cadet 777D04549

LABEL-CUB CADET

Note: BOTH SIDES OF AUGER HOUSING

$

$

Not available

777D04566

Cub Cadet 777D04566

LABEL-9 HP OHV ELEC

Note: SIDE OF ENGINE

$

$

Not available

777D04564

Cub Cadet 777D04564

LABEL-HANDLE PANEL

$

$

Not available

777I20508

Cub Cadet 777I20508

LABEL-H STEER SNTHLH

$

$

Not available

777I20724

Cub Cadet 777I20724

LABEL-H STEER SNTHRH

$

$

Not available

777D03165

Cub Cadet 777D03165

LABEL-HNDL HEATED G

$

$

Not available

777S30511

Cub Cadet 777S30511

ON EDGE OF CHUTE READ FROM CHUTE POSITION
(Superseded to 777S30524)

$11.99

$

Usually ships in 3-6 days

0

777D04565

Cub Cadet 777D04565

LABEL-926 STE AUGER

Note: TOP OF AUGER HOUSING NOT FACING OPERATOR

$

$

Not available

777S30514

Cub Cadet 777S30514

FRONT TOP OF AUGER HOUSING FACING OPERATOR

$

$

Not available

777I20324

Cub Cadet 777I20324

LABEL-TRANSPORT

Note: ON WEIGHT TRANSFER BRACKET

$

$

Not available
