92505-0820-XX - Briggs & Stratton Vertical Engine Carburetor and Fuel Tank Assy. Parts Diagram

Vertical Engine

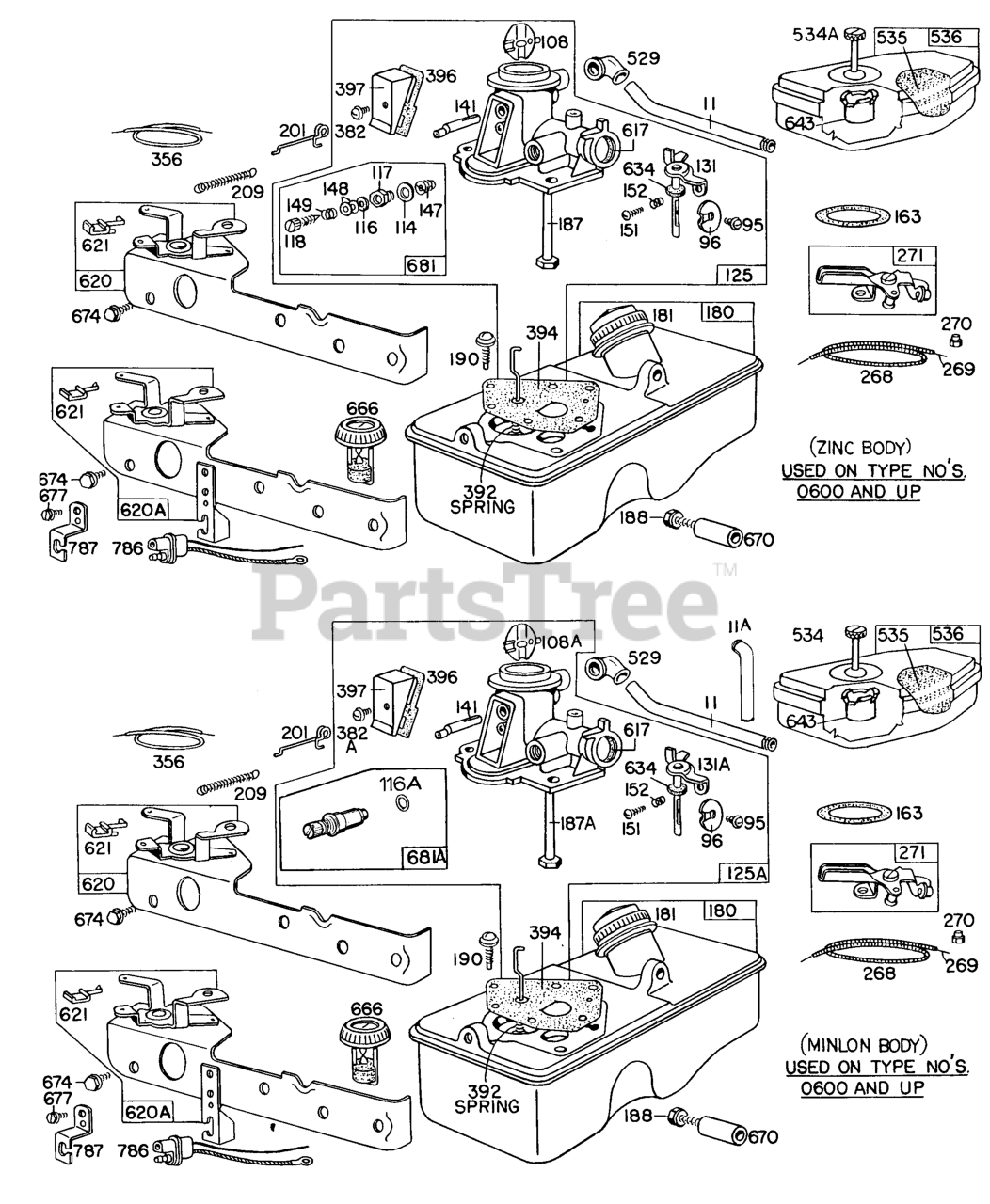

Carburetor and Fuel Tank Assy. Parts Diagram

  • Title

11A

Briggs & Stratton 271489

Tube-Breather

Note: (Rubber Hang Down Tube See Ref. 8 Note)

$8.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton 230802

Tube-Breather

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211203

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 298819

Valve-Choke
(Superseded to 280178)

$6.49

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 66594

Sealing Washer (Needle Valve)
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116A

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

116

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 230590

Nut, Hex
(Superseded to 690504)

$3.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

125A

Briggs & Stratton 395419

Carburetor Assembly

Note: Used only with Parts listed under Ref. 8 Note.

$46.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 393112

Carburetor Assembly (Minlon Body)
(Superseded to 394596)

$57.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 390064

Carburetor Assembly
(Superseded to 396893)

$53.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 393003

Shaft And Lever-Throttle (Minlon Carb.)
(Superseded to 394588)

$15.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 299977

Shaft-Throttle

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

In Stock, only 4 left!

0

148

Briggs & Stratton 22235

Washer, Brass
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring-Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

151

Briggs & Stratton 93524

Screw-Slotted (5-40 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

163

Briggs & Stratton 271139

Gasket, Air Cleaner (Above Spacer)
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 393113

Tank Assembly-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 298425

Cap, Tank (Metal) A (1-1/2" O.d. Top)
(Superseded to 493982S)

$

$

Not available

187A

Briggs & Stratton 393001

Pipe/Sleeve Assy (Minlon Body)

$

$

Not available

187

Briggs & Stratton 296476

Tube-Pick Up (Used To Replace Plastic Pipes)

$10.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

190

Briggs & Stratton 93440

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261027

Link-Air Vane

Note: Also with Zinc Flywheel

$5.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260875

Spring-Governor

Note: (For 3400 to 3600 RPM Top Speed Set-No Load)

$6.99

$

In Stock, only 1 left!

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is needed, specify length in inches; if a shorter casing is needed, order No. 66986 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is needed, specify length in inches; if shorter wire is needed, order No. 26099 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

382A

Briggs & Stratton 93864

Screw-Hex

$3.99

$

Usually ships in 2-12 days

0

382

Briggs & Stratton 93545

Screw-Cover

$3.49

$

In Stock, only 1 left!

0

392

Briggs & Stratton 261016

Spring-Fuel Pump Diaphragm

$6.49

$

Usually ships in 2-12 days

0

394

Briggs & Stratton 299637

Diaphragm-Carburetor

$27.99

$

Usually ships in 2-12 days

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

Note: Used only with Metal Breather Tube Ref. 11

$4.49

$

In Stock, Qty 8

0

534A

Briggs & Stratton 93374

Screw-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

534

Briggs & Stratton 93865

Screw, Air Cleaner
(Superseded to 691417)

$5.99

$

In Stock, only 3 left!

0

535

Briggs & Stratton 270579

Element, Air Cleane (2-slanted Sides)
(Superseded to 270579S)

$5.99

$

In Stock, Qty 20+

0

536

Briggs & Stratton 390055

Cleaner-Air (2-slanted Sides)

Note: For Dual Element Air Cleaner Kit Order No. 393018

$16.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620A

Briggs & Stratton 390200

Carb Cntrl Plate & Harness Plug Brkt

$27.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 299974

Plate-Control

Note: except those with Electric Starters.

$38.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

643

Briggs & Stratton 222991

Cup-Air Cleaner
(Superseded to 280374)

$7.49

$

Usually ships in 2-12 days

0

666

Briggs & Stratton 299992

Indicator-Fuel

$24.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 93912

Spacer-Fuel Tank
(Superseded to 691633)

$4.99

$

In Stock, only 1 left!

0

674

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

677

Briggs & Stratton 93606

Screw-Hex

$3.99

$

Usually ships in 2-12 days

0

681A

Briggs & Stratton 395508

Valve-High Speed (Nylon Body)

$8.99

$

Usually ships in 2-12 days

0

681

Briggs & Stratton 299060

Valve-High Speed (Threaded)

$21.99

$

In Stock, only 2 left!

0

786

Briggs & Stratton 390102

Wiring Harness-Starter Motor (Cylinder Head End)

$8.99

$

Usually ships in 2-12 days

0

787

Briggs & Stratton 222088

Retainer-Harness Plug

$4.99

$

Usually ships in 2-12 days

0
