925018 - Ariens Emperor 30" Rear-Engine Rider, 10hp Tecumseh (SN: 003501 & Above) Steering Assembly Parts Diagram

Emperor 30" Rear-Engine Rider, 10hp Tecumseh

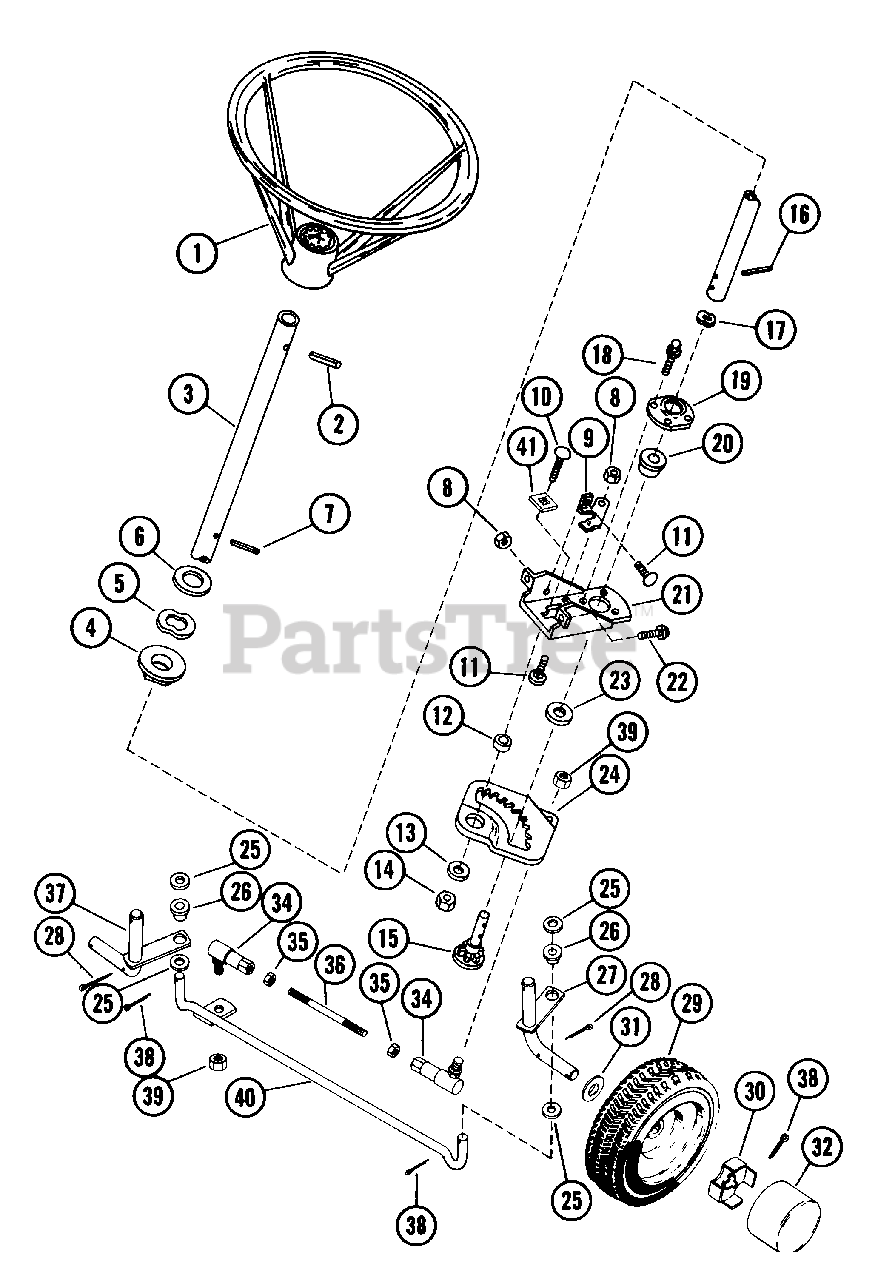

Steering Assembly Parts Diagram

  • Title

1

Ariens 02713600

STEERING WHEEL

$

$

Not available

2

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

3

Ariens 02705600

STEERING SHAFT

$

$

Not available

4

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

5

Ariens 3328

Wave Washer

$

$

Not available

6

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

7

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 02512700

ADJUSTMENT BRACKET

$

$

Not available

10

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

12

Ariens 02506200

SPACER .380X.750X.236

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06407500

WSHR-FL-STL .390X1.500X.125
(Superseded to 06441700)

$3.99

$

In Stock, only 1 left!

0

14

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 02705400

PINION
(Superseded to 03841600)

$

$

Not available

16

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 3254

Wave Washer

$

$

Not available

18

Ariens 07402100

SCR-TAP 10-24X.25 CRSLPH PL 1A
(Superseded to 07415500)

$

$

Not available

19

Ariens 01310000

RETAINING PLATE

$51.99

$

Usually ships in 4-12 days

0

20

Ariens 05505300

BSHG-FLG .625X1.156X.375 SI

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 02506300

STEERING BRACKET

$

$

Not available

22

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 02506100

STEERING GEAR

$77.99

$

Usually ships in 4-12 days

0

25

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

26

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 20+

0

27

Ariens 01210200

L H WHEEL SPINDLE
(Superseded to 02735400)

$104.99

$

Usually ships in 4-12 days

0

28

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 61200500

FRONT WHEEL ASSEMBLY
(Superseded to 07126400)

Note: Consisting of:

$68.99

$

In Stock, only 2 left!

0

29

Ariens 07108500

TUBE

$17.99

$

Usually ships in 4-12 days

0

29

Ariens 07108000

TIRE 4.10/3.50-4

$28.99

$

In Stock, Qty 9

0

29

Ariens 07108300

WHL
(Superseded to 52703100)

$79.99

$

Usually ships in 4-12 days

0

29

Ariens 01215200

ZERK FITTING

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 05505800

BSHG-FLG .750X1.380X.750X1.557

$7.49

$

In Stock, Qty 7

0

29

Ariens 05408900

BRG-BALL .752X1.50X.50

$18.99

$

In Stock, only 3 left!

0

30

Ariens 3376

Spindle Cup

$

$

Not available

31

Ariens 02512000

SPINDLE WASHER

$38.99

$

In Stock, only 3 left!

0

32

Ariens 3377

Hub Cap

$

$

Not available

34

Ariens 3369

Ball Joint

$

$

Not available

35

Ariens 06500500

NUT .375-24 PL

$3.99

$

In Stock, only 1 left!

0

36

Ariens 02506700

STEERING LINK

$

$

Not available

37

Ariens 01210300

R H WHEEL SPINDLE

$

$

Not available

38

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

39

Ariens 06512300

NUT-LK .375-24 PL

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 02506600

TIE ROD

$

$

Not available

41

Ariens 02513800

WASHER

Note: (Use only if supplied with original equipment)

$

$

Not available
