925017 - Ariens Emperor 38" Rear-Engine Rider, 10hp Tecumseh (SN: 002001 & Above) Drive Assembly Parts Diagram

Emperor 38" Rear-Engine Rider, 10hp Tecumseh

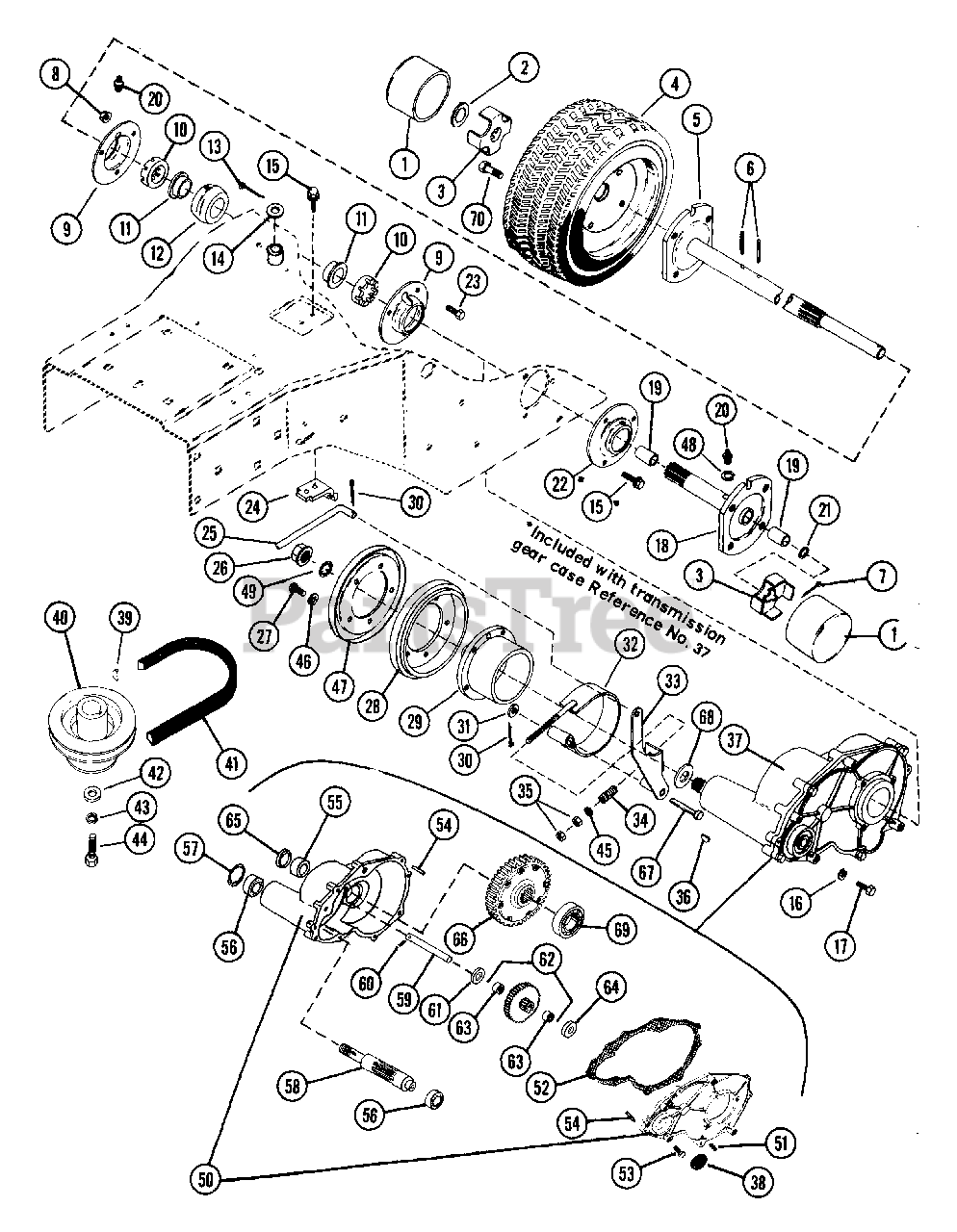

Drive Assembly Parts Diagram

  • Title

1

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

2

Ariens 01036600

PUSHNUT

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

$

$

Not available

4

Ariens 60394800

TERRA TIRE & WHEEL ASSEMBLY
(Superseded to 07115200)

$

$

Not available

Ariens 07120100

WHEEL
(Superseded to 51116000)

$67.99

$

In Stock, only 1 left!

0

Ariens 07107700

WHL

$82.99

$

Usually ships in 4-12 days

0

Ariens 07108700

TUBE

$34.99

$

Usually ships in 4-12 days

0

5

Ariens 02504500

R H AXLE SHAFT

$

$

Not available

6

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 02511000

BEARING FLANGE

$

$

Not available

10

Ariens 02504600

ADJUSTMENT SPACER

$

$

Not available

11

Ariens 05505600

BSHG-FLG 1.125X1.31X.50X1.62BR

$

$

Not available

12

Ariens 02511800

SPHERICAL BUSHING

$

$

Not available

13

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

14

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

$

$

Not available

16

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

18

Ariens 62501000

L H AXLE ASSEMBLY
(Superseded to 52503800)

Note: (Includes bushings,"O" rings, and zerk fitting)

$

$

Not available

19

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 1 left!

0

20

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

21

Ariens 05605800

O-RING .755X.950X.097

$3.49

$

Usually ships in 4-12 days

0

22

Ariens 05607100

SEAL 1.125X2.496X.380

$35.99

$

Usually ships in 4-12 days

0

23

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 02533200

NEUTRAL STOP

$

$

Not available

25

Ariens 02516500

BRAKE ROD

$

$

Not available

26

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$3.99

$

In Stock, only 3 left!

0

27

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

28

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

29

Ariens 02503400

FRICTION DISC HUB

$

$

Not available

30

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

31

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

32

Ariens 02503300

BRAKE BAND

$

$

Not available

33

Ariens 02503200

BRAKE LEVER

$

$

Not available

34

Ariens 08309000

SG-COMP .105X.585X.75

$39.99

$

Usually ships in 4-12 days

0

35

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

36

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 9

0

37

Ariens 52501100

GEAR CASE ASSEMBLY

$

$

Not available

38

Ariens 02510800

PLUG

$

$

Not available

39

Ariens 06602100

KEY-STR .25X2.0X.25

$4.99

$

Usually ships in 4-12 days

0

40

Ariens 02528500

ENGINE SHEAVE

$

$

Not available

41

Ariens 07206500

V-BELT, SAE 380-RAW EDGE

$28.99

$

Usually ships in 4-12 days

0

42

Ariens 06402800

WSHR-FL-STL .438X1.125X.19

Note: (Used Only On Model(s): 017,014,018).

$

$

Not available

Ariens 06408300

WSHR-FL-STL .505X1.140X.250

Note: (Used Only On Model(s): 011,20).

$6.99

$

Usually ships in 4-12 days

0

43

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

Note: (Used Only On Model(s): 017,014,018).

$3.49

$

In Stock, only 1 left!

0

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

Note: (Used Only On Model(s): 011,020).

$2.99

$

Usually ships in 4-12 days

0

44

Ariens 05901700

BLT-HEX .38-24X1.25 BLKO GR5

Note: (Used Only On Model(s): 017,014,018).

$

$

Not available

Ariens 05910300

BLT-HEX .44-20X1.25 GR5

Note: (Used Only On Model(s): 011,020).

$

$

Not available

45

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

46

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

Note: (Special)

$0.99

$

In Stock, only 3 left!

0

47

Ariens 02520600

GUARD

$

$

Not available

48

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

49

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

50

Ariens 52502400

COVER & CASE ASSEMBLY

$

$

Not available

51

Ariens 00200900

BREATHER

$

$

Not available

52

Ariens 02523600

GASKET

$

$

Not available

53

Ariens 07002300

SCR-FLG-WHZ 10-24X.75 PL

$

$

Not available

54

Ariens 05802800

PIN-GRV .188X.63

$

$

Not available

55

Ariens 05506700

BSHG-SLV 1.125X1.375X.625

$

$

Not available

56

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

57

Ariens 05705500

RG-RTNG-INT 1.375X.050

$3.99

$

Usually ships in 4-12 days

0

58

Ariens 02523400

PINION SHAFT

$

$

Not available

59

Ariens 02500700

IDLER SHAFT

$

$

Not available

60

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

61

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

62

Ariens 52502700

PINION & GEAR W/BEARING ASSEMB

$81.99

$

Usually ships in 4-12 days

0

63

Ariens 05409000

BRG-NEEDLE .50X.688X.625

$20.99

$

Usually ships in 4-12 days

0

64

Ariens 02500900

SPACER .507X.875X.289

$

$

Not available

65

Ariens 05606700

SEAL 1.125X1.624X.250
(Superseded to 05615100)

$9.99

$

Usually ships in 4-12 days

0

66

Ariens 62500200

DIFFERENTIAL ASSEMBLY
(Superseded to 52503600)

$

$

Not available

67

Ariens 02538900

CLEVIS PIN

$

$

Not available

68

Ariens 06408900

WSHR-FL-STL .627X.990X.032

$

$

Not available

69

Ariens 05409100

BRG-BALL 1.125X2.50X.63

$51.99

$

In Stock, only 1 left!

0

70

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0
