925014 - Ariens Emperor 30" Rear-Engine Rider, 8hp Tecumseh (SN: 038251 & Above) Linkage Assembly Parts Diagram

Emperor 30" Rear-Engine Rider, 8hp Tecumseh

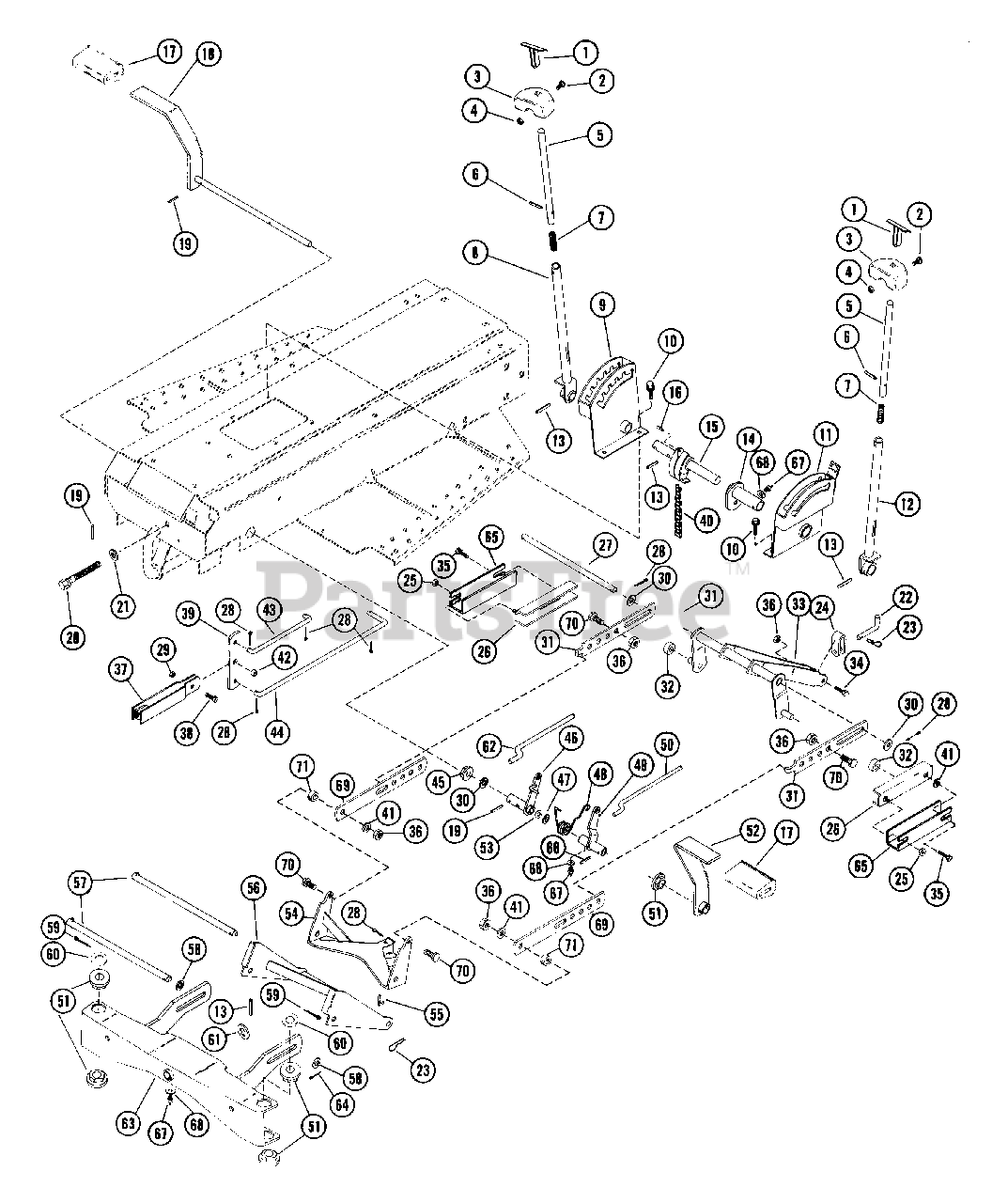

Linkage Assembly Parts Diagram

  • Title

1

Ariens 02511500

T PLUNGER

$

$

Not available

2

Ariens 05911600

BLT-HEX 10-24X1.25 FHPL
(Superseded to 06111000)

$

$

Not available

3

Ariens 02511400

T HANDLE

$35.99

$

In Stock, only 1 left!

0

4

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

5

Ariens 02510200

SHAFT

$6.99

$

Usually ships in 4-12 days

0

6

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

7

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 02510100

PAN RAISING HANDLE

$

$

Not available

9

Ariens 02538300

ATTACHMENT LIFT QUADRANT

$

$

Not available

10

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 02538400

ENGAGEMENT QUADRANT

$

$

Not available

12

Ariens 02510900

ENGAGEMENT HANDLE

$

$

Not available

13

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

14

Ariens 02506900

ENGAGEMENT LEVER

$

$

Not available

15

Ariens 02535400

MOWER LIFT DRUM

$

$

Not available

16

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 11

0

17

Ariens 07502900

PEDAL COVER

$

$

Not available

18

Ariens 02519700

BRAKE PEDAL

$

$

Not available

19

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

20

Ariens 02507400

CAP SCREW

Note: (Special)

$

$

Not available

21

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 02510000

CLEVIS PIN
(Superseded to 00212300)

$3.49

$

In Stock, only 3 left!

0

23

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 02509900

SWIVEL BLOCK

$

$

Not available

25

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 02505200

PAN RAIL

$

$

Not available

27

Ariens 02508800

FLOAT PIN

$

$

Not available

28

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

29

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 02540000

REAR HANGER STRAP

$

$

Not available

32

Ariens 02508900

ROLLER

$

$

Not available

33

Ariens 02508700

REAR MOWER HANGER

$

$

Not available

34

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

36

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 02507300

ADJUSTMENT YOKE
(Superseded to 02716300)

$

$

Not available

38

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

39

Ariens 02507500

PIVOT LINK

$

$

Not available

40

Ariens 02508300

ROLLER CHAIN

$

$

Not available

41

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

43

Ariens 02507600

ROD

$

$

Not available

44

Ariens 02508100

MOWER ENGAGEMENT LINK

$

$

Not available

45

Ariens 02505500

FLANGE BUSHING

$

$

Not available

46

Ariens 02529500

BRAKE ARM

$

$

Not available

47

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

48

Ariens 08306900

SG-TORS .088X.75X3.0

$

$

Not available

49

Ariens 02529700

CLUTCH ARM

$

$

Not available

50

Ariens 02507900

CLUTCH ROD

$

$

Not available

51

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

52

Ariens 02519800

CLUTCH PEDAL

$

$

Not available

53

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

54

Ariens 02526100

LEVER

$

$

Not available

55

Ariens 02526200

PIN

$

$

Not available

56

Ariens 02508500

MOWER LIFT ARM

$

$

Not available

57

Ariens 02508600

HANGER PIN

$64.99

$

Usually ships in 4-12 days

0

58

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

59

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

60

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

61

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

Note: (Special)

$3.99

$

In Stock, only 1 left!

0

62

Ariens 02516500

BRAKE ROD

$

$

Not available

63

Ariens 02506000

AXLE
(Superseded to 02729200)

$54.99

$

Usually ships in 4-12 days

0

64

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

65

Ariens 02514900

CHANNEL

$

$

Not available

66

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

67

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

68

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

69

Ariens 02539900

HANGER ADJUSTMENT LINK

$

$

Not available

70

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

71

Ariens 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0
