925014 - Ariens Emperor 30" Rear-Engine Rider, 8hp Tecumseh (SN: 038251 & Above) Frame Assembly Parts Diagram

Emperor 30" Rear-Engine Rider, 8hp Tecumseh

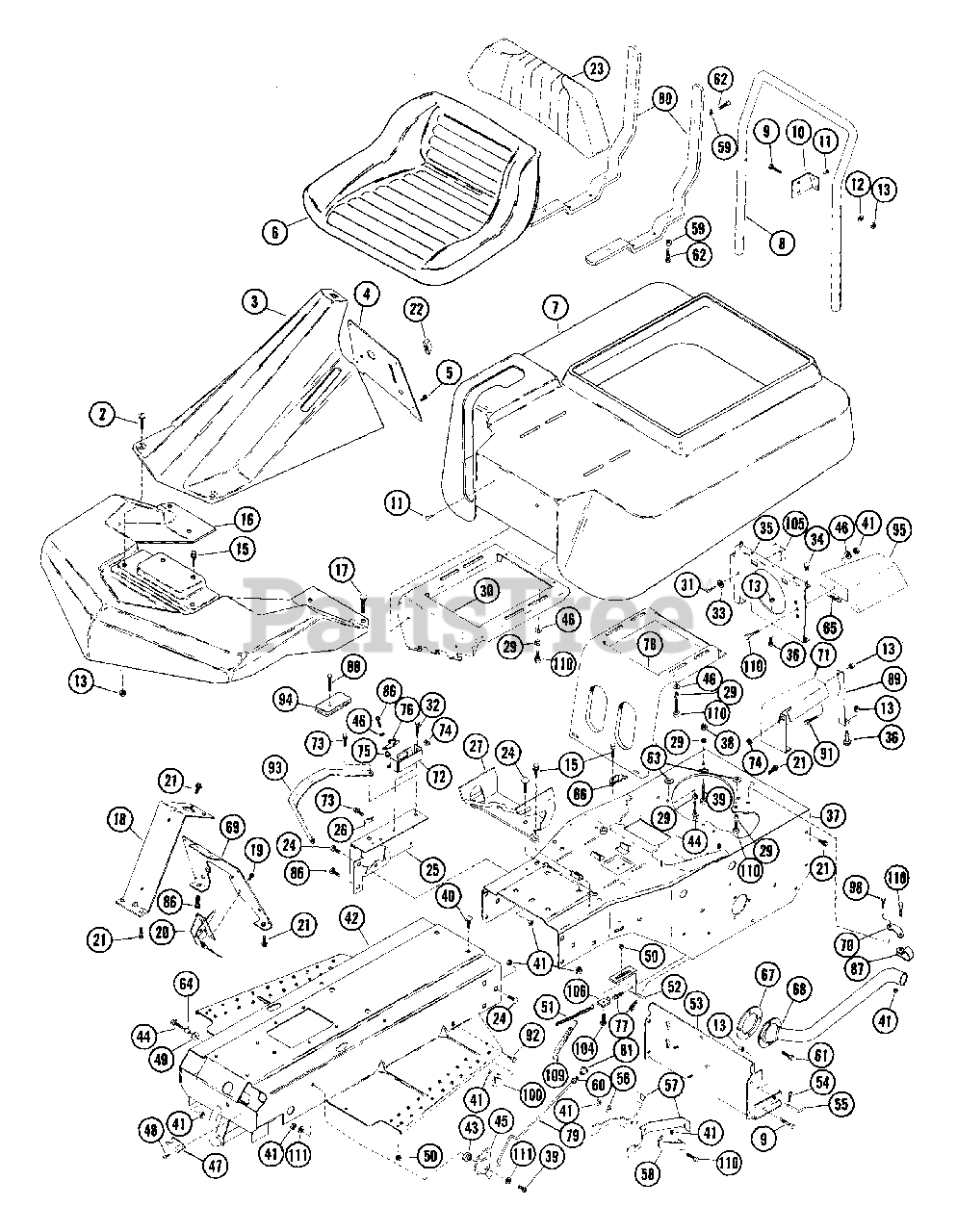

Frame Assembly Parts Diagram

  • Title

2

Ariens 06103200

SCR-MCH .25-20X.63 CRPH PL

$

$

Not available

3

Ariens 02525100

HOOD

$

$

Not available

4

Ariens 52503100

CONTROL PANEL ASSEMBLY

Note: (includes decals)

$

$

Not available

5

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

6

Ariens 02540100

SEAT
(Superseded to 01235600)

Note: (Used Only On Model(s): 020,014,017,018).

$

$

Not available

Ariens 02517900

SEAT
(Superseded to 02756800)

Note: (Used Only On Model(s): 011).

$

$

Not available

7

Ariens 52500400

ENGINE COVER ASSEMBLY

Note: (Used Only On Model(s): 011).

$

$

Not available

8

Ariens 02515900

SERVICE BAR

$

$

Not available

9

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

Note: (Used Only On Model(s): 014,020,017,018).

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

Note: (Used Only On Model(s): 011).

$1.49

$

In Stock, Qty 20+

0

10

Ariens 02515500

BRACKET

Note: (Used Only On Model(s): 011).

$

$

Not available

11

Ariens 06802500

RVT-POP .187X.402 DOME ST

Note: (Used Only On Model(s): 011).

$1.49

$

In Stock, Qty 10

0

12

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

Note: (Used Only On Model(s): 011).

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 011,014,017,018).

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 020).

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 02525800

FRONT WHEEL COVERS

$

$

Not available

17

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

18

Ariens 02538100

PANEL

$

$

Not available

19

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 06907600

THROTTLE CONTROL

Note: (Used Only On Model(s): 011,020).

$

$

Not available

20

Ariens 06908700

THROTTLE CONTROL

Note: (Used Only On Model(s): 014,017,018).

$59.99

$

Usually ships in 4-12 days

0

21

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 07501900

KNOB

$

$

Not available

23

Ariens 02518000

SEAT BACK

Note: (Used Only On Model(s): 011).

$

$

Not available

24

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

Note: (Used Only On Model(s): 014,020,017,018).

$2.99

$

In Stock, Qty 20+

0

24

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

Note: (Used Only On Model(s): 011).

$2.99

$

In Stock, Qty 20+

0

25

Ariens 02516600

SHIFT QUADRANT

$

$

Not available

26

Ariens 06906600

CLIP

Note: (Used Only On Model(s): 011,020).

$

$

Not available

27

Ariens 02512200

SEAT HINGE
(Superseded to 52503500)

Note: (Used Only On Model(s): 011).

$

$

Not available

28

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

Note: (Used Only On Model(s): 017,014,018).

$1.49

$

In Stock, Qty 13

0

29

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 02524000

BRACKET
(Superseded to 52503500)

Note: (Used Only On Model(s): 011).

$

$

Not available

31

Ariens 07400900

SCR-TAP 10-16X1.0 SLHP PL AB

Note: (Used Only On Model(s): 011,020).

$

$

Not available

32

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

Note: (Used Only On Model(s): 011,020).

$1.99

$

Usually ships in 4-12 days

0

34

Ariens 07503100

BUMPER GROMMET

Note: (Used Only On Model(s): 011).

$3.49

$

In Stock, only 3 left!

0

34

Ariens 07503100

BUMPER GROMMET

Note: (Used Only On Model(s): 020,014,017,018).

$3.49

$

In Stock, only 3 left!

0

35

Ariens 02535000

SEAT LEG

Note: (Used Only On Model(s): 020,014,017,018).

$

$

Not available

35

Ariens 02536600

SEAT LEG

Note: (Used Only On Model(s): 011).

$

$

Not available

36

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 011).

$0.99

$

In Stock, Qty 20+

0

36

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 020).

$0.99

$

In Stock, Qty 20+

0

36

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 014,017,018).

$0.99

$

In Stock, Qty 20+

0

37

Ariens 02525900

FRAME
(Superseded to 02538900)

$

$

Not available

38

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

Note: (Used Only On Model(s): 020,011).

$0.99

$

In Stock, Qty 10

0

39

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

Note: (Used Only On Model(s): 011,020).

$2.49

$

In Stock, Qty 12

0

39

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

Note: (Used Only On Model(s): 014,017,018).

$2.49

$

In Stock, Qty 12

0

40

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

41

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 011).

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 020).

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 014,017,018).

$1.49

$

In Stock, Qty 20+

0

42

Ariens 52501600

FRONT FRAME ASSY.
(Superseded to 52502900)

$

$

Not available

43

Ariens 02519500

SPACER -SHLD .344X.500X.469

$

$

Not available

44

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

Note: (Used Only On Model(s): 011,020).

$1.49

$

In Stock, Qty 20+

0

44

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

Note: (Used Only On Model(s): 014,017,018).

$1.49

$

In Stock, Qty 20+

0

45

Ariens 02519400

BRAKE LATCH

$14.99

$

Usually ships in 4-12 days

0

46

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

Note: (Used Only On Model(s): 011,020).

$0.99

$

In Stock, Qty 20+

0

46

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

Note: (Used Only On Model(s): 014,017,018).

$0.99

$

In Stock, Qty 20+

0

47

Ariens 02507200

LOCK SPRING

$

$

Not available

48

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

49

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

50

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 02525300

BRAKE CHAIN

$

$

Not available

52

Ariens 02525400

BRACKET

$

$

Not available

53

Ariens 02526000

COVER

$

$

Not available

54

Ariens 06702900

PIN-HAIR INT .09X.188 PL

Note: (Used Only On Model(s): 011).

$2.49

$

Usually ships in 4-12 days

0

55

Ariens 02504300

PIN

Note: (Used Only On Model(s): 011).

$

$

Not available

56

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

57

Ariens 02504400

BELT FINGER

$17.99

$

Usually ships in 4-12 days

0

58

Ariens 02509200

BELT FINGER BRACE

$32.99

$

Usually ships in 4-12 days

0

59

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

Note: (Used Only On Model(s): 011).

$

$

Not available

60

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

61

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

Note: (Used Only On Model(s): 014,017,018).

$2.49

$

Usually ships in 4-12 days

0

61

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

Note: (Used Only On Model(s): 011,020).

$2.49

$

Usually ships in 4-12 days

0

62

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

Note: (Used Only On Model(s): 011).

$1.49

$

In Stock, Qty 9

0

63

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (Used Only On Model(s): 014,017,018).

$3.99

$

Usually ships in 4-12 days

0

64

Ariens 02513500

SPACER .344X1.000X.375

$

$

Not available

65

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

Note: (Used Only On Model(s): 020,014,017,018).

$0.99

$

In Stock, Qty 20+

0

66

Ariens 02535300

CLAMP

Note: (Used Only On Model(s): 020,014,017,018).

$

$

Not available

67

Ariens 02524900

GASKET

Note: (Used Only On Model(s): 014,017,018).

$

$

Not available

67

Ariens 02518800

GASKET

Note: (Used Only On Model(s): 011,020).

$

$

Not available

68

Ariens 02538500

EXHAUST PIPE

Note: (Used Only On Model(s): 014,017,018).

$

$

Not available

68

Ariens 02538600

EXHAUST PIPE

Note: (Used Only On Model(s): 011,020).

$

$

Not available

69

Ariens 02538200

SUPPORT

$

$

Not available

70

Ariens 02538700

STRAP

$

$

Not available

71

Ariens 02524700

SHIELD

Note: (Used Only On Model(s): 014,017,018).

$

$

Not available

72

Ariens 02517400

SWITCH HOUSING

$

$

Not available

73

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

Note: (Used Only On Model(s): 011).

$

$

Not available

73

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

Note: (Used Only On Model(s): 020,014,017,018).

$

$

Not available

74

Ariens 07502600

GROMMET, .31 ID

Note: (Used Only On Model(s): 017,014,018).

$

$

Not available

74

Ariens 07502600

GROMMET, .31 ID

Note: (Used Only On Model(s): 011,020).

$

$

Not available

75

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

76

Ariens 02517500

CAM NO SCRAP

$

$

Not available

77

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

78

Ariens 02535100

SEAT BRACKET
(Superseded to 52503500)

Note: (Used Only On Model(s): 020,014,017,018).

$

$

Not available

79

Ariens 02535600

PARKING BRAKE ROD

$

$

Not available

80

Ariens 02517800

SEAT BRACE

Note: (Used Only On Model(s): 011).

$

$

Not available

81

Ariens 07503500

KNOB

$

$

Not available

86

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

87

Ariens 06907500

CLIP

$

$

Not available

88

Ariens 07403600

SCR-TAP 12-14X1.25 CROVH PL 1A

$

$

Not available

89

Ariens 02517400

SWITCH HOUSING

Note: (Used Only On Model(s): 014,017,018).

$

$

Not available

91

Ariens 05910400

BLT-HEX .25-20X.38 PL GR2
(Superseded to 05947600)

Note: (Used Only On Model(s): 014,017,018).

$1.99

$

Usually ships in 4-12 days

0

92

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

93

Ariens 02515800

SHIFT PANEL

Note: (Used Only On Model(s): 020,014,017,018).

$

$

Not available

94

Ariens 02517600

COVER

$

$

Not available

95

Ariens 02525200

BAFFLE

Note: (Used Only On Model(s): 011,020).

$

$

Not available

96

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.49

$

In Stock, Qty 20+

0

100

Ariens 06905700

CLIP

$

$

Not available

104

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

105

Ariens 02521400

CLAMP

Note: (Used Only On Model(s): 011,020).

$

$

Not available

106

Ariens 02525500

BRACKET

$

$

Not available

109

Ariens 08302100

SG-TENS .041X.35X2.11 WLD 8

$

$

Not available

110

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

Note: (Used Only On Model(s): 011,020).

$1.49

$

In Stock, Qty 20+

0

110

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

Note: (Used Only On Model(s): 014,017,018).

$1.49

$

In Stock, Qty 20+

0

111

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0
