924I (1695313) - Snapper 24" Snow Thrower, 9hp (2008) Auger Housing & Chute Group Parts Diagram

24" Snow Thrower, 9hp

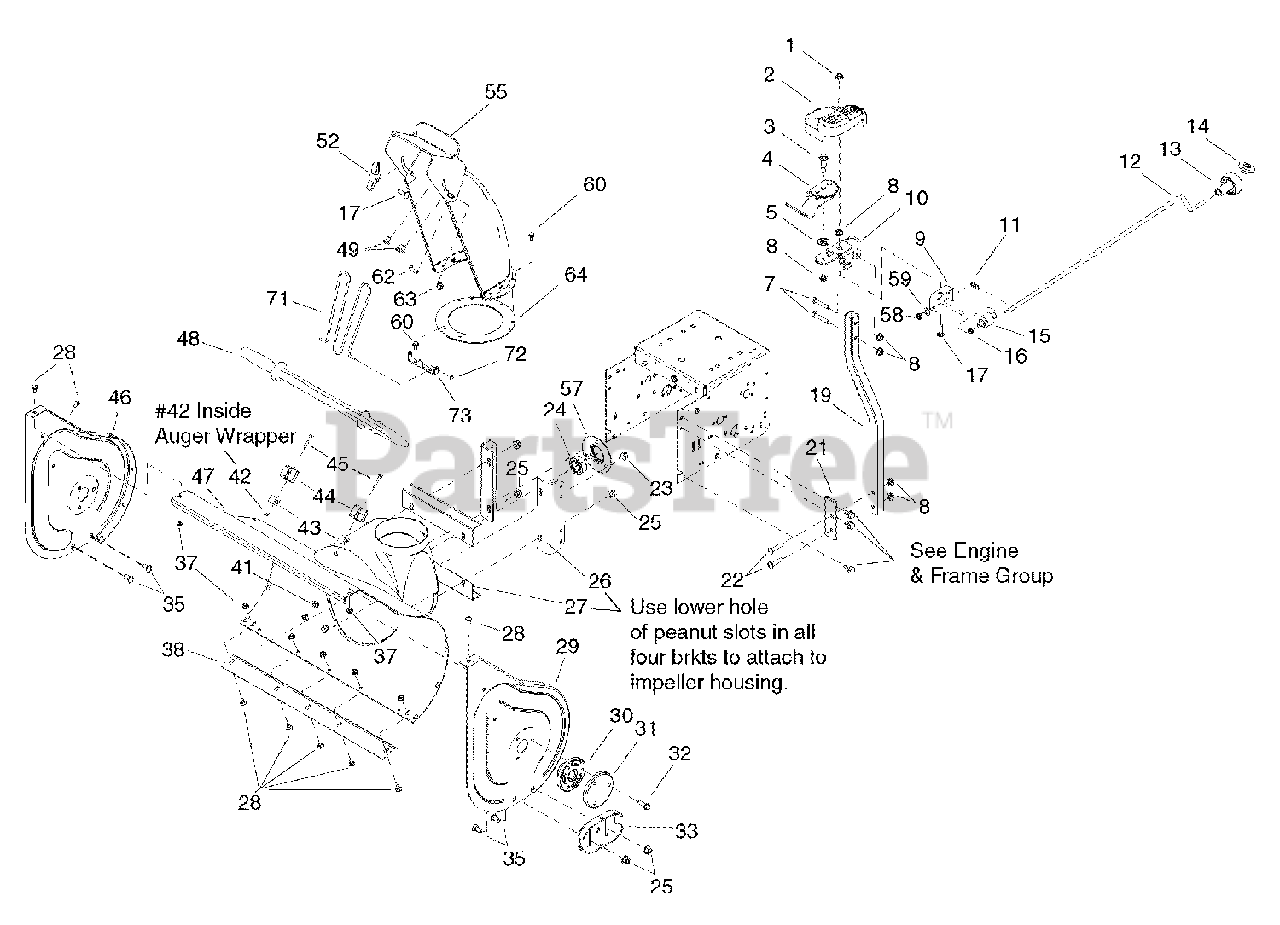

Auger Housing & Chute Group Parts Diagram

  • Title

1

Snapper 1935048

NUT, Hex Flange 5/16-18 Two Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 1734442

COVER, Gears
(Superseded to 1734442SM)

$7.99

$

In Stock, only 1 left!

0

3

Snapper 1732412

BOLT, Shoulder 5/16-18 G5
(Superseded to 1732412SM)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 1734774

GEAR & SUPPORT ASSEMBLY, Chute
(Superseded to 1734774YP)

$71.99

$

Usually ships in 2-12 days

0

5

Snapper 1733026

WASHER, Powdered Metal
(Superseded to 1733026SM)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 1922127

CAPSCREW, Hex Head 5/16-18 x 1-3/4 G51695314
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

9

Snapper 1734440

SUPPORT, Worm "U" 10GA
(Superseded to 1687474YP)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 1734423A

SUPPORT, Gear & Chute 10GA
(Superseded to 1734423ASM)

$19.99

$

Usually ships in 2-12 days

0

11

Snapper 722139

PIN, Hair Chute Gear
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 1734404

ROD, Chute Control E-Coat
(Superseded to 1734404SM)

$16.99

$

Usually ships in 2-12 days

0

13

Snapper 1714084

KNOB, Spinner
(Superseded to 1714084SM)

$12.99

$

Usually ships in 2-12 days

0

14

Snapper 1960093

NUT, Push Pal 3/8 Diameter Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

15

Snapper 1734439

WORM, Chute L.H.
(Superseded to 1734439SM)

$35.99

$

Usually ships in 2-12 days

0

16

Snapper 1667588

BUSHING
(Superseded to 1667588SM)

$5.99

$

In Stock, Qty 20+

0

17

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

19

Snapper 1734195

TUBE, Offset Intermediate

$

$

Currently unavailable

21

Snapper 1734201A

SUPPORT, Tube 10GA
(Superseded to 1734201ASM)

$23.99

$

Usually ships in 2-12 days

0

22

Snapper 1931337

CARRIAGE BOLT, 5/16-18 x 1-1/2 G5
(Superseded to 80003669)

$4.49

$

In Stock, only 4 left!

0

23

Snapper 1931648

SCREW, Hex Whiz Lock Flange 5/16-18 x 1/2
(Superseded to 1931648SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 2108202

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

25

Snapper 1960687

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 1734055D

BRACKET, Housing 12GA
(Superseded to 1734055DYP)

$7.49

$

Usually ships in 2-12 days

0

27

Snapper 1734063D

ANGLE, Fill Strip
(Superseded to 1734063DYP)

$9.99

$

Usually ships in 2-12 days

0

28

Snapper 1931315

CARRIAGE BOLT, 1/4-20 x 1/2 G5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 1726458D

PLATE, End L.H.
(Superseded to 1726458DSM)

$136.99

$

Usually ships in 2-12 days

0

30

Snapper 1726457

HOUSING, Auger Bearing
(Superseded to 1726457SM)

$

$

Not available

31

Snapper 1668639A

CAP, Bearing
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

32

Snapper 1960373

SCREW, Hex Washer Head Taptite 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 1727854A

SKID, Shoe Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

35

Snapper 1960711

CARRIAGE BOLT, 3/8-16 x 3/4 G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 1930641

NUT, Hex Flange 1/4-20 Whiz Lock Large
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7300098A

BLADE, Scraper 24"
(Superseded to 7600018SM)

$66.99

$

In Stock, only 3 left!

0

41

Snapper 1930659

RETAINER, Nut, 5/16-18
(Superseded to 1930659SM)

$5.99

$

Usually ships in 2-12 days

0

42

Snapper 1933896

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

43

Snapper 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

44

Snapper 722242

CLIP, Retainer
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

45

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 1726459D

PLATE, End R.H. 14GA
(Superseded to 1726459DSM)

$136.99

$

Usually ships in 2-12 days

0

47

Snapper 1734475D

WRAPPER ASSEMBLY, 24" Auger

$

$

Not available

48

Snapper 1733209

STICK, Cleanout w/Brush
(Superseded to 1736094YP)

$34.99

$

In Stock, only 3 left!

0

49

Snapper 7091542

SCREW, Phillips Head Taptite, Torx 5/16C x 1/2
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

52

Snapper 720727

WINGNUT, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

55

Snapper 1734227

CHUTE & DEFLECTOR ASSEMBLY
(Superseded to 1734227YP)

$78.99

$

Usually ships in 2-12 days

0

57

Snapper 1665982

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 16

0

58

Snapper 1960762

NUT, Hex Lock Jam ESNA Lite 3/8-24
(Superseded to 1960762SM)

$4.99

$

Usually ships in 2-12 days

0

59

Snapper 1734542

WASHER, Cup
(Superseded to 1734542SM)

$5.49

$

Usually ships in 2-12 days

0

60

Snapper 1925003

SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
(Superseded to 704130)

Note: (Quantity 7 CE/Export)

$3.99

$

In Stock, only 1 left!

0

62

Snapper 1960756

SCREW, Truss Head Torx 5/16-18 x 3/4
(Superseded to 1960756SM)

$4.49

$

Usually ships in 2-12 days

0

63

Snapper 1960686

NUT, Hex Flange 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

64

Snapper 1734215A

RING, Chute Base
(Superseded to 1734215ASM)

$23.99

$

Usually ships in 2-12 days

0

71

Snapper 1733475

GUARD, Chute
(Superseded to 1733475SM)

Note: (CE/Export)

$21.99

$

Usually ships in 2-12 days

0

72

Snapper 1960140

NUT, Push
(Superseded to 1960140SM)

Note: (CE/Export)

$3.49

$

Usually ships in 2-12 days

0

73

Snapper 1733476A

BRACKET, Chute Guard 12GA
(Superseded to 1733476ASM)

Note: (CE/Export)

$16.99

$

Usually ships in 2-12 days

0
