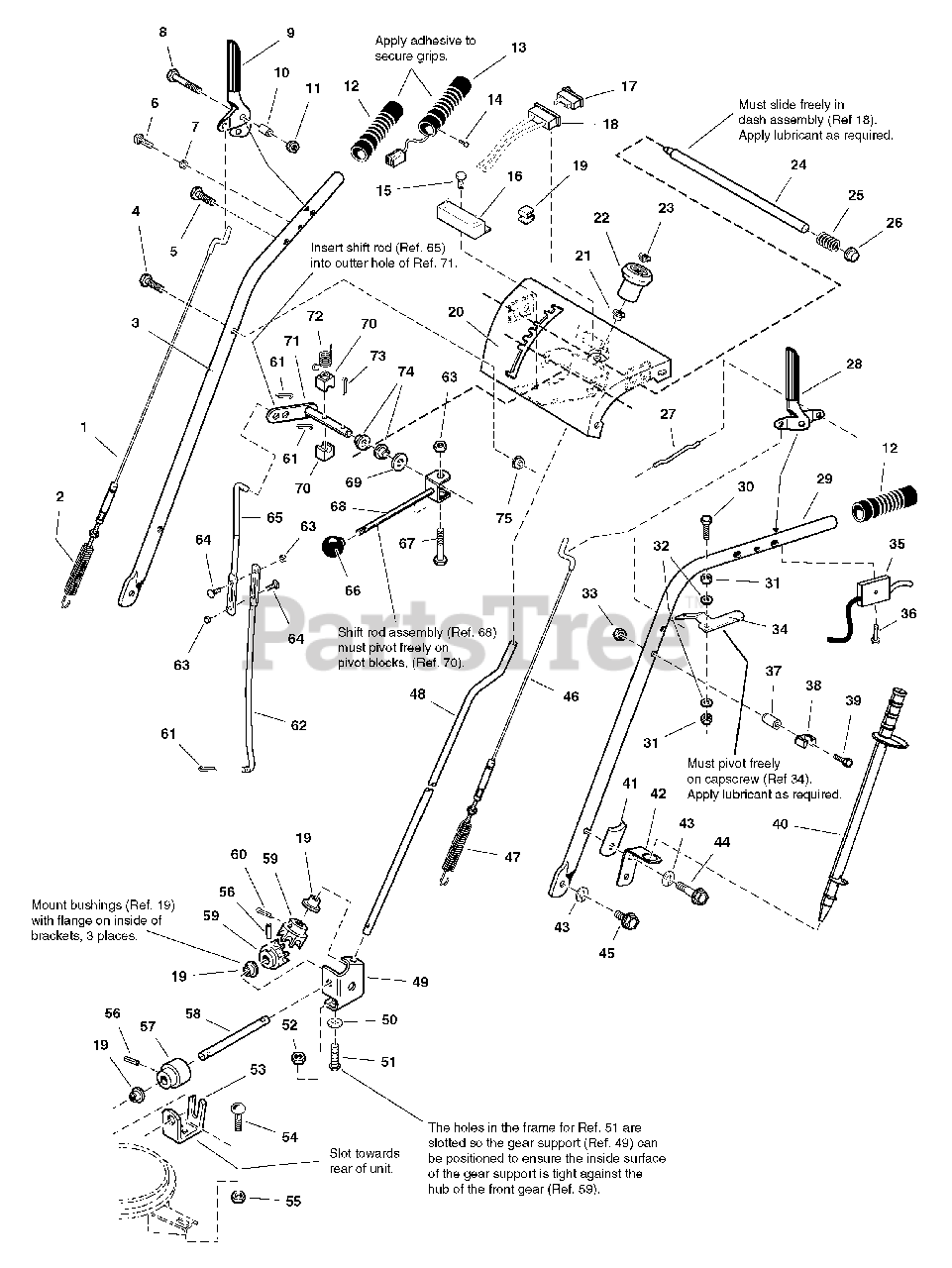

9247E (1694602) - Snapper 24" Snow Thrower, 9hp (2005) Handles and Controls Group Parts Diagram

24" Snow Thrower, 9hp

Handles and Controls Group Parts Diagram

  • Title

1

Snapper 1726833

CABLE AND SPRING ASSEMBLY, R.H. Auger
(Superseded to 1726833SM)

$19.99

$

Usually ships in 2-12 days

0

2

Snapper 1701996

SPRING, Torsion
(Superseded to 1701996SM)

$12.99

$

In Stock, Qty 5

0

3

Snapper 1727087A

HANDLE, Tube, R.H.
(Superseded to 1727087ASM)

$61.99

$

Usually ships in 2-12 days

0

4

Snapper 7091908

CAPSCREW, Hex Head, 5/16-18 x 1-3/4 G5
(Superseded to 7091908YP)

Note: Was 1922127

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7091540

CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5
(Superseded to 703906)

Note: Was 1921221

$4.99

$

In Stock, only 4 left!

0

6

Snapper 1960671

SCREW, Pan Head Torx, 1/4-20 x 3/4, Thread Cutting
(Superseded to 1960671SM)

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 1715654

SPACER, 1/4ID x 25/64OD x 11/64LG
(Superseded to 1715654SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 1922837

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

9

Snapper 1722638

HANDLE, Clutch R.H.
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

10

Snapper 1715655

SPACER
(Superseded to 1715655SM)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 1923358

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 1726317

GRIP
(Superseded to 1726317SM)

Note: see Note 1

$8.49

$

In Stock, only 1 left!

0

13

Snapper 1723965

HAND GRIP, Heated 1" Diameter
(Superseded to 1723965SM)

Note: see Note 2

$86.99

$

Usually ships in 2-12 days

0

14

Snapper 1726422

RIVET, Pop
(Superseded to 1726422SM)

Note: see Note 2

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 1923341

CAPSCREW, Hex Head 1/4-20 x 3/4 G5
(Superseded to 1923341SM)

Note: see Note 2

$4.49

$

In Stock, Qty 8

0

16

Snapper 1724037

RESISTOR BLOCK, 2 Male Terminal
(Superseded to 1724037SM)

Note: see Note 2

$39.99

$

Usually ships in 2-12 days

0

17

Snapper 1723967

SWITCH, Hand Warmer
(Superseded to 1723967SM)

Note: see Note 2

$38.99

$

Usually ships in 2-12 days

0

18

Snapper 1725409

HARNESS, Wiring
(Superseded to 1725409SM)

Note: see Note 2

$61.99

$

Usually ships in 2-12 days

0

19

Snapper 1715956

CLIP, Wire
(Superseded to 1715956SM)

Note: see Note 2

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 1726983A

DASH AND SUPPORT ASSEMBLY, Tubular
(Superseded to 1726983ASM)

$242.99

$

Usually ships in 2-12 days

0

21

Snapper 1667588

BUSHING, 47/125ID x 437/1000OD x 1/5LG
(Superseded to 1667588SM)

Note: see Note 1

$5.99

$

In Stock, Qty 20+

0

22

Snapper 1714084

KNOB, Spinner
(Superseded to 1714084SM)

Note: see Note 1

$12.99

$

In Stock, only 1 left!

0

23

Snapper 1960093

NUT, Push Pal, 3/8" Diameter Stud Capped
(Superseded to 703948)

Note: see Note 1

$4.49

$

In Stock, Qty 17

0

24

Snapper 1722633

ROD AND SPRING ASSEMBLY, w/Pin
(Superseded to 1722633SM)

$35.99

$

Usually ships in 2-12 days

0

25

Snapper 1722690

SPRING, Complete
(Superseded to 1722690SM)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 1960519

PUSH NUT, Stud Cap, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

27

Snapper 1722630

ROD, 4/25" Diameter, E-Coat
(Superseded to 1722630SM)

$7.49

$

Usually ships in 2-12 days

0

28

Snapper 1722667

HANDLE, Clutch L.H.
(Superseded to 1722667SM)

$37.99

$

In Stock, only 1 left!

0

29

Snapper 1727086A

HANDLE, Tube, L.H.
(Superseded to 1727086ASM)

$71.99

$

Usually ships in 2-12 days

0

30

Snapper 1960662

CAPSCREW, Hex Head, 1/4-20 x 2 G5
(Superseded to 1960662SM)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper 1920397

NUT, Hex Lock ESNA Light, 1/4-20NC-3B
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 1933896

NUT, Hex Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

34

Snapper 1722631A

LEVER, Pivot
(Superseded to 1722631ASM)

$8.49

$

Usually ships in 2-12 days

0

35

Snapper 1718791

CABLE AND HANDLE ASSEMBLY, Clutch
(Superseded to 1718791SM)

$70.99

$

In Stock, only 3 left!

0

36

Snapper 1725702

SCREW, Pan Head Torx, #10 x 1/2 Thread Cut
(Superseded to 1725702SM)

$5.49

$

Usually ships in 2-12 days

0

37

Snapper 1726995

SPACER, 1-1/4 LG Beveled End
(Superseded to 1726995SM)

$11.99

$

In Stock, only 2 left!

0

38

Snapper 1726728

CLIP, Snow Stick
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

39

Snapper 1960727

SCREW, Hex Flange Slot, #10-24 x 2-1/2
(Superseded to 1960727SM)

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 7075909

STICK, Snow Removal
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

41

Snapper 1720452

CLAMP, Saddle Snow Handle E-Coat
(Superseded to 1720452SM)

$12.99

$

In Stock, only 1 left!

0

42

Snapper 1726727A

BRACKET, Clean Out Tool
(Superseded to 1726727ASM)

$7.99

$

Usually ships in 2-12 days

0

43

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

44

Snapper 1921978

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

45

Snapper 1930591

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

46

Snapper 1726832

CABLE AND SPRING ASSEMBLY, L.H. Traction
(Superseded to 1726832SM)

$14.99

$

Usually ships in 2-12 days

0

47

Snapper 1707452

SPRING, Extension
(Superseded to 1707452SM)

$14.99

$

In Stock, only 4 left!

0

48

Snapper 1727088

ROD, 3/8" Diameter, 26"LG, E-Coat
(Superseded to 1727088SM)

Note: see Note 1

$30.99

$

In Stock, only 1 left!

0

49

Snapper 1718793A

SUPPORT, Gear, Black

Note: see Note 1

$

$

Currently unavailable

50

Snapper 1960518

NUT, Push for 1/4 Diameter Thread
(Superseded to 703826)

Note: see Note 1

$3.49

$

In Stock, Qty 20+

0

51

Snapper 1960252

CARRIAGE BOLT, 1/4-20 x 5/8 G5
(Superseded to 1960252SM)

Note: see Note 1

$3.99

$

In Stock, only 1 left!

0

52

Snapper 1960294

NUT, Hex Flange, 1/4-20, Whiz Lock Small
(Superseded to 703233)

Note: see Note 1

$4.49

$

In Stock, Qty 5

0

53

Snapper 1611911

SUPPORT, Worm
(Superseded to 1611911SM)

Note: see Note 1

$9.99

$

Usually ships in 2-12 days

0

54

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

Note: see Note 1

$3.49

$

In Stock, Qty 12

0

55

Snapper 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

56

Snapper 2916168

PIN, Spring 1/8 x 3/4
(Superseded to 2816168SM)

Note: see Note 1

$4.49

$

In Stock, Qty 15

0

57

Snapper 1668186

WORM, Chute, L.H.
(Superseded to 1668186SM)

Note: see Note 1

$41.99

$

In Stock, only 3 left!

0

58

Snapper 1725283

ROD, 3/8" Diameter, Chute Worm E-Coat
(Superseded to 1725283SM)

Note: see Note 1

$

$

Not available

59

Snapper 1718593

GEAR, Powdered Metal, Metafusion
(Superseded to 1718593SM)

Note: see Note 1

$14.99

$

In Stock, Qty 20+

0

60

Snapper 1918452

PIN, Cotter 1/4 x 1
(Superseded to 703795)

Note: see Note 1

$5.99

$

In Stock, only 1 left!

0

61

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

62

Snapper 1666255

ROD, 3/4" Diameter
(Superseded to 1666255SM)

$51.99

$

In Stock, only 4 left!

0

63

Snapper 1960685

NUT, Hex KEPS, 1/4-20, Conical Washer
(Superseded to 703061)

Note: 12387E and E12387 Uses Quantity of 4
