924550 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Cables And Controls Parts Diagram

24" Snow Blower, 8hp Tecumseh

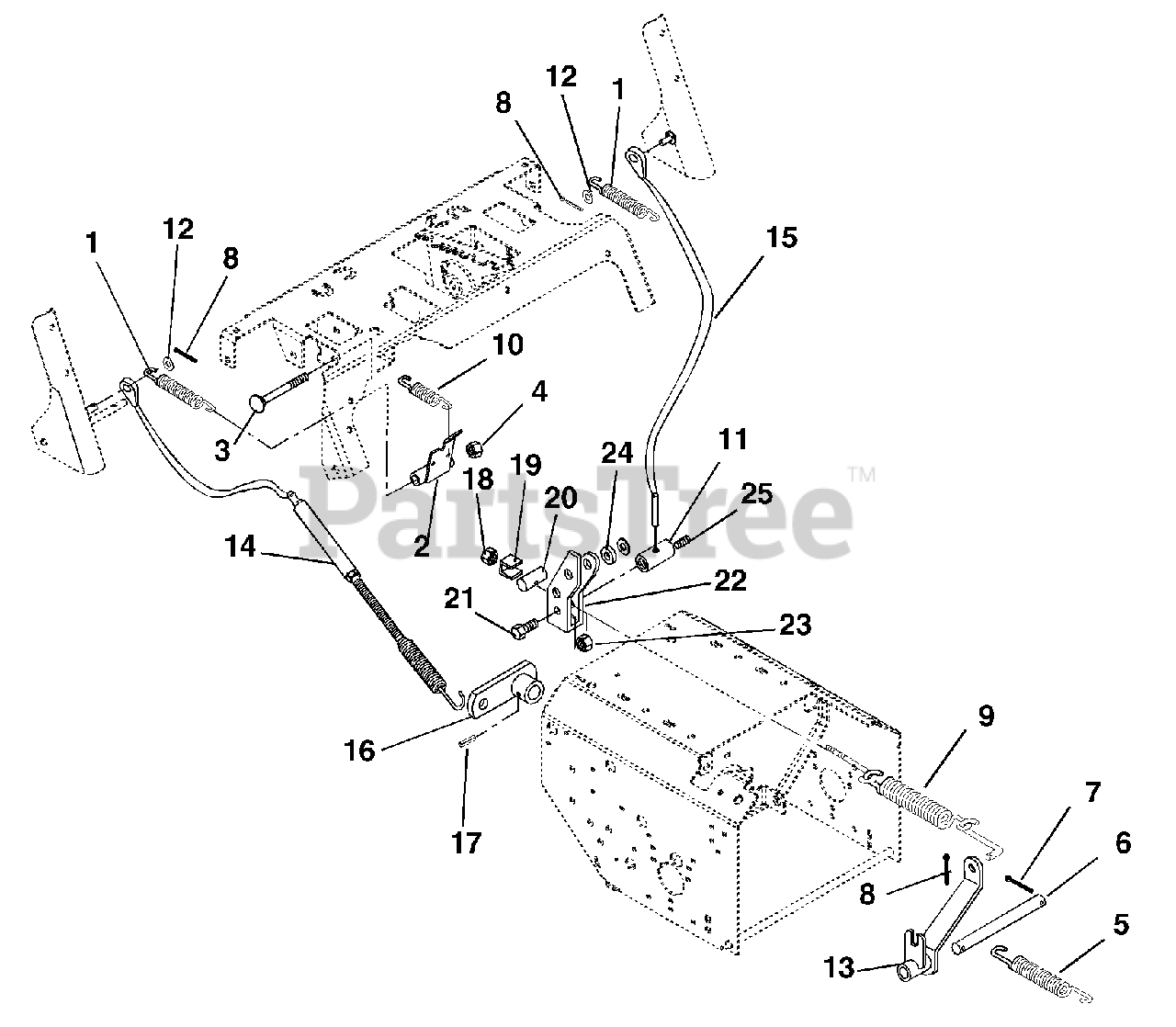

Cables And Controls Parts Diagram

  • Title
1

Ariens 08337100

SPRING-EXT .056X.50X3.76

$13.99

$

Usually ships in 4-12 days

0

2

Ariens 02492200

ARM, INTERLOCK

$

$

Not available

3

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$34.99

$

In Stock, Qty 5

0

6

Ariens 02406900

ROD, FORK PIVOT

$30.99

$

Usually ships in 4-12 days

0

7

Ariens 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

8

Ariens 06707400

@PIN-CTR .09X.50 EXTPRSQCT YWZ

$0.99

$

In Stock, only 1 left!

0

9

Ariens 52404700

SPRING ASSEMBLY

$57.99

$

Usually ships in 4-12 days

0

10

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 16

0

11

Ariens 02213500

ROD ADAPTER

$38.99

$

Usually ships in 4-12 days

0

12

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 02427200

FORK, CLUTCH

$62.99

$

Usually ships in 4-12 days

0

14

Ariens 06947500

CABLE, AUGER

$51.99

$

Usually ships in 4-12 days

0

15

Ariens 06947400

CABLE, TRACTION

$56.99

$

In Stock, only 3 left!

0

16

Ariens 02485551

LEVER, CLUTCH

$58.99

$

Usually ships in 4-12 days

0

17

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 9

0

18

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 01054200

ADAPTER SPACER

$

$

Not available

20

Ariens 02422700

ADAPTER

$11.99

$

Usually ships in 4-12 days

0

21

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 02422800

CLUTCH ENGAGEMENT YOKE
(Superseded to 02422851)

$28.99

$

Usually ships in 4-12 days

0

23

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 02408600

SPACER 1.00 X .64 X .38

$

$

Not available

25

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0
