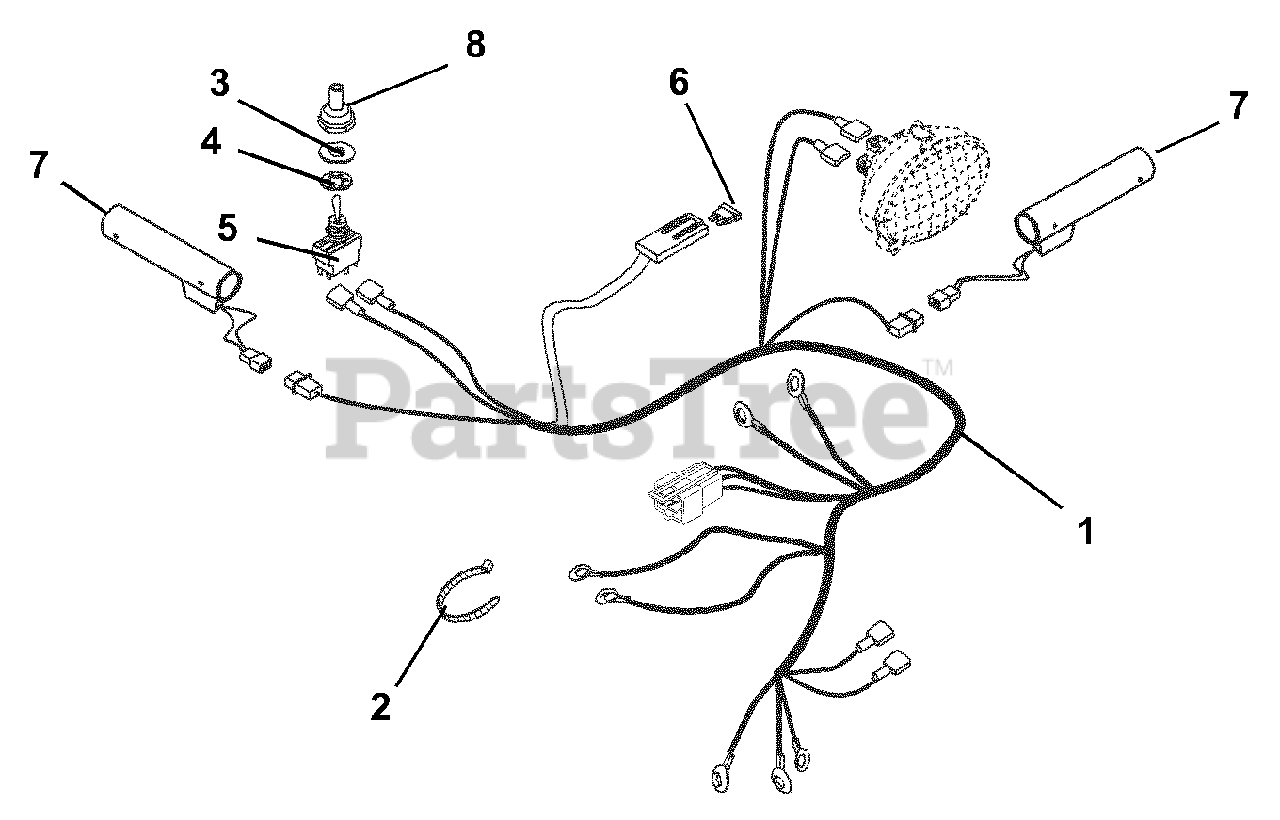

924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Electrical Parts Diagram

36" Power Brush, Tecumseh

Electrical Parts Diagram

  • Title
1

Gravely 00277600

Harness, Wiring-Light and Hand Warmer
(Superseded to 00277601)

$77.99

$

Usually ships in 4-12 days

0

2

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

3

Gravely 036523

Washer, Flat Steel .51 x .88 x .024
(Superseded to 06403800)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 06310900

Washer, Locking Internal .56 x .04

$2.49

$

In Stock, only 2 left!

0

5

Gravely 02485700

Switch, On/Off Hand Warmer

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 00524700

15 AMP Fuse

$

$

Not available

7

Gravely 07532900

Hand Warmer with Terminal
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$46.99

$

In Stock, only 2 left!

0

8

Gravely 09207600

Boot, Switch

Note: (Optional)

$45.99

$

Usually ships in 4-12 days

0
