924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Cables And Controls Parts Diagram

36" Power Brush, Tecumseh

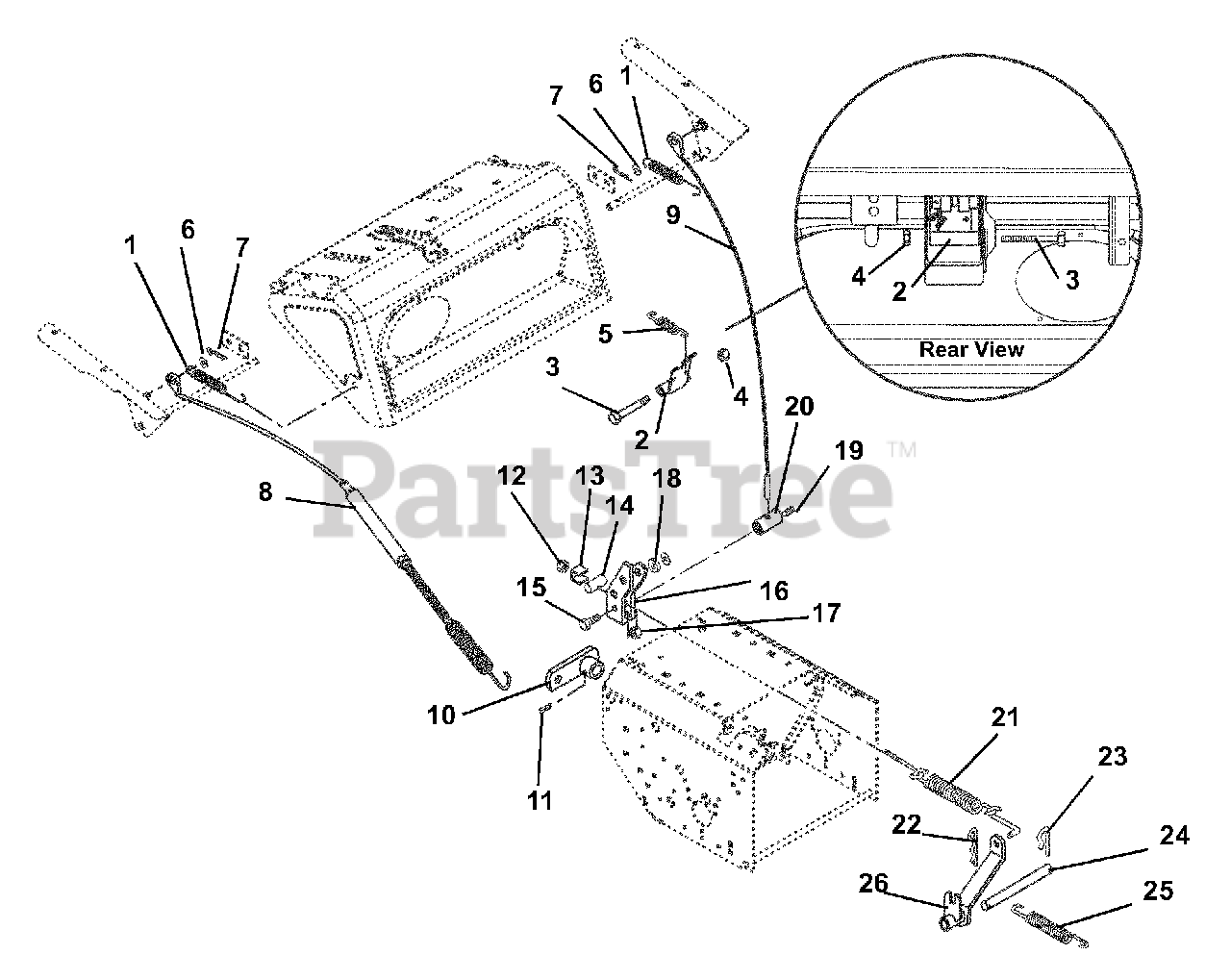

Cables And Controls Parts Diagram

  • Title
1

Gravely 08335400

Spring, Tension .056 x .50 x 3.76

$15.99

$

In Stock, Qty 9

0

2

Gravely 02492200

Arm, Interlock

$

$

Not available

3

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 08337000

Spring, Tension .05 x .44 x 38 x 1.45

$5.99

$

In Stock, Qty 16

0

6

Gravely 06437300

Washer, Flat Steel .28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06701900

Pin-Hair .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

8

Gravely 06947500

Cable, Auger

$51.99

$

Usually ships in 4-12 days

0

9

Gravely 06947400

Cable, Traction

$56.99

$

In Stock, only 3 left!

0

10

Gravely 02485551

Lever, Clutch

$58.99

$

Usually ships in 4-12 days

0

11

Gravely 05802600

Pin, Roll .16 x .88

$2.49

$

In Stock, Qty 9

0

12

Gravely 06530200

Nut, Locking Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 01054200

Spacer, Adapter

$

$

Not available

14

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 02422851

Yoke, Clutch Engagement

$28.99

$

Usually ships in 4-12 days

0

17

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 02408600

Spacer 1.00 x .64 x .38

$

$

Not available

19

Gravely 06005500

Screw, Set .31-18 x .38 Socket Head

$2.99

$

In Stock, Qty 13

0

20

Gravely 02213500

Rod Adapter

$38.99

$

Usually ships in 4-12 days

0

21

Gravely 52404700

Spring Assembly

$57.99

$

Usually ships in 4-12 days

0

22

Gravely 06701900

Pin, Hair Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

23

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

24

Gravely 02406900

Rod, Fork Pivot

$30.99

$

Usually ships in 4-12 days

0

25

Gravely 08309400

Spring, Tension .08 x .73 x 3.06 Weldment

$34.99

$

In Stock, Qty 5

0

26

Gravely 02427200

Clutch Fork

$62.99

$

Usually ships in 4-12 days

0
