924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Brush Drive Unit Parts Diagram

36" Power Brush, Tecumseh

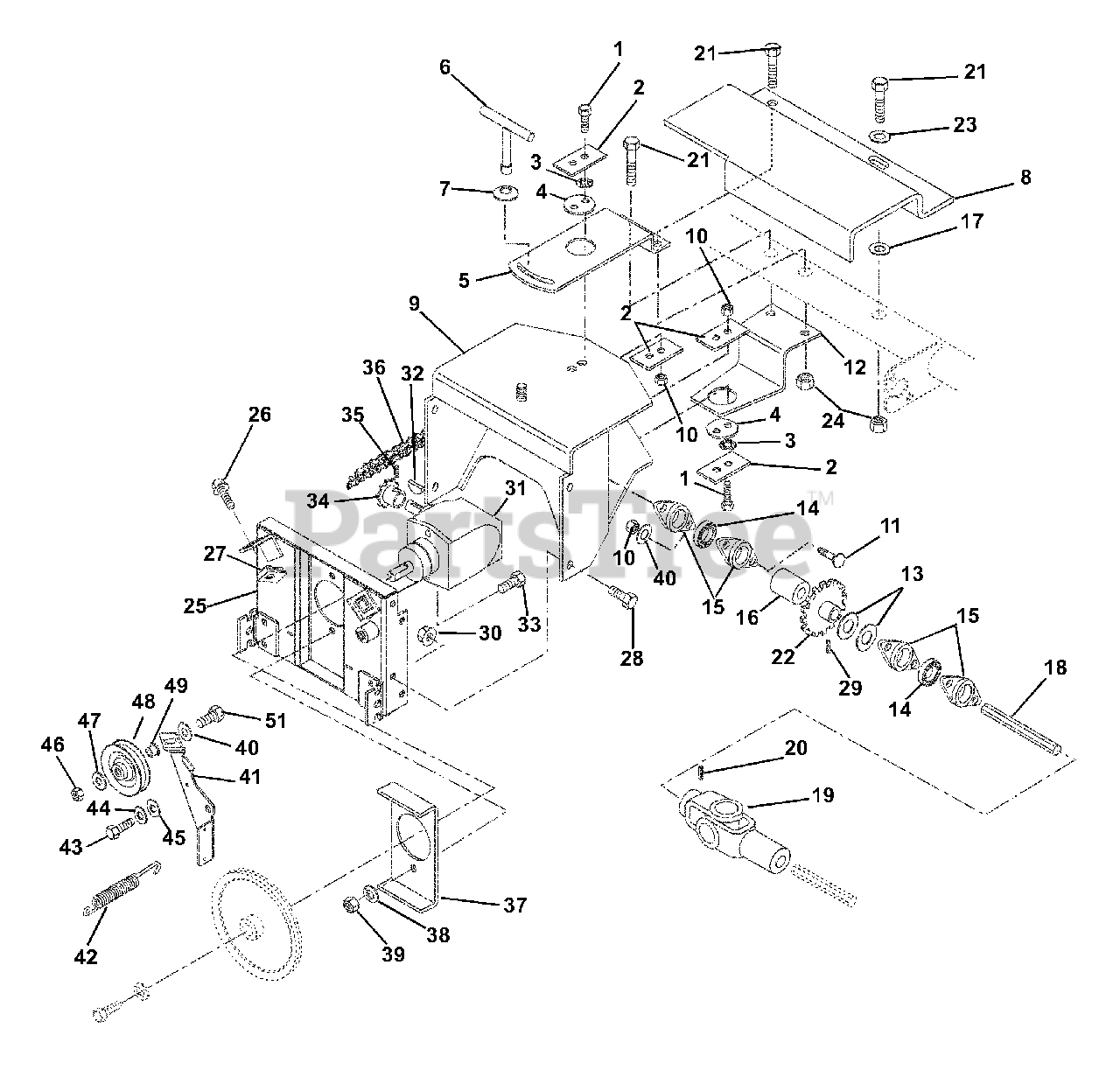

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

2

Gravely 02404800

Retainer

$17.99

$

In Stock, only 2 left!

0

3

Gravely 06307200

Washer, Locking Internal .313 x .030
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

4

Gravely 02404900

Pivot, Center

$20.99

$

In Stock, only 2 left!

0

5

Gravely 02471751

Plate, Top Mount

$86.99

$

Usually ships in 4-12 days

0

6

Gravely 02470900

T-Lock Handle

$59.99

$

Usually ships in 4-12 days

0

7

Gravely 00597000

Washer, Cupped Serrated .38
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 02470151

Guard, Shaft

$

$

Not available

9

Gravely 02405051

Frame, Adapter

$

$

Not available

10

Gravely 06529800

Nut, Locking Top .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 02471851

Plate, Bottom Mount

$77.99

$

Usually ships in 4-12 days

0

13

Gravely 039022

Washer, Flat Steel 1.015 x 1.500 x .125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 05409700

Bearing, Ball

$94.99

$

Usually ships in 4-12 days

0

15

Gravely 02429600

Flange, Bearing

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 02447600

Spacer 1.006 x 1.307 x .500

$24.99

$

Usually ships in 4-12 days

0

17

Gravely 06436800

Washer, Flat Steel .390 x .88 x .18

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 02429100

Shaft

$77.99

$

Usually ships in 4-12 days

0

19

Gravely 02495500

Universal Joint

$285.99

$

Usually ships in 4-12 days

0

20

Gravely 05803000

Pin, Roll .188 x 1.50

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05961100

Bolt, Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 01062000

Sprocket

$103.99

$

Usually ships in 4-12 days

0

23

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 00289851

Plate, Mounting Broom
(Superseded to 02498851)

$

$

Not available

26

Gravely 07028500

Bolt, Hex Flanged Whizloc Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 07002600

Nut, Retainer .38-16

$9.49

$

In Stock, Qty 16

0

28

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 036831

Pin, Roll .188 x 1.75
(Superseded to 05805600)

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 02499300

Gear Box Assembly

$408.99

$

Usually ships in 4-12 days

0

32

Gravely 106751

Key, Woodruff .188 x .75 x .313 SAE 9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 12

0

33

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 02429800

Sprocket

$

$

Not available

35

Gravely 06001100

Screw, Set .25-20 x .25 Socket Head Cup Point

$2.49

$

In Stock, only 2 left!

0

36

Gravely 02477700

Chain

$14.99

$

In Stock, Qty 8

0

37

Gravely 02429551

Plate, Stiffener

$

$

Not available

38

Gravely 06308800

Washer, Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 52418200

Arm, Auger/Brake-High with Lining

$57.99

$

Usually ships in 4-12 days

0

42

Gravely 08300001

Spring, Tension .06 x .492 x 5.25

$22.99

$

Usually ships in 4-12 days

0

43

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06307400

Washer, Locking .312 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 06437500

Washer, Flat Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

46

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 02457400

Idler
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

49

Gravely 01213100

Spacer, Bearing

$3.49

$

In Stock, only 4 left!

0

50

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0
