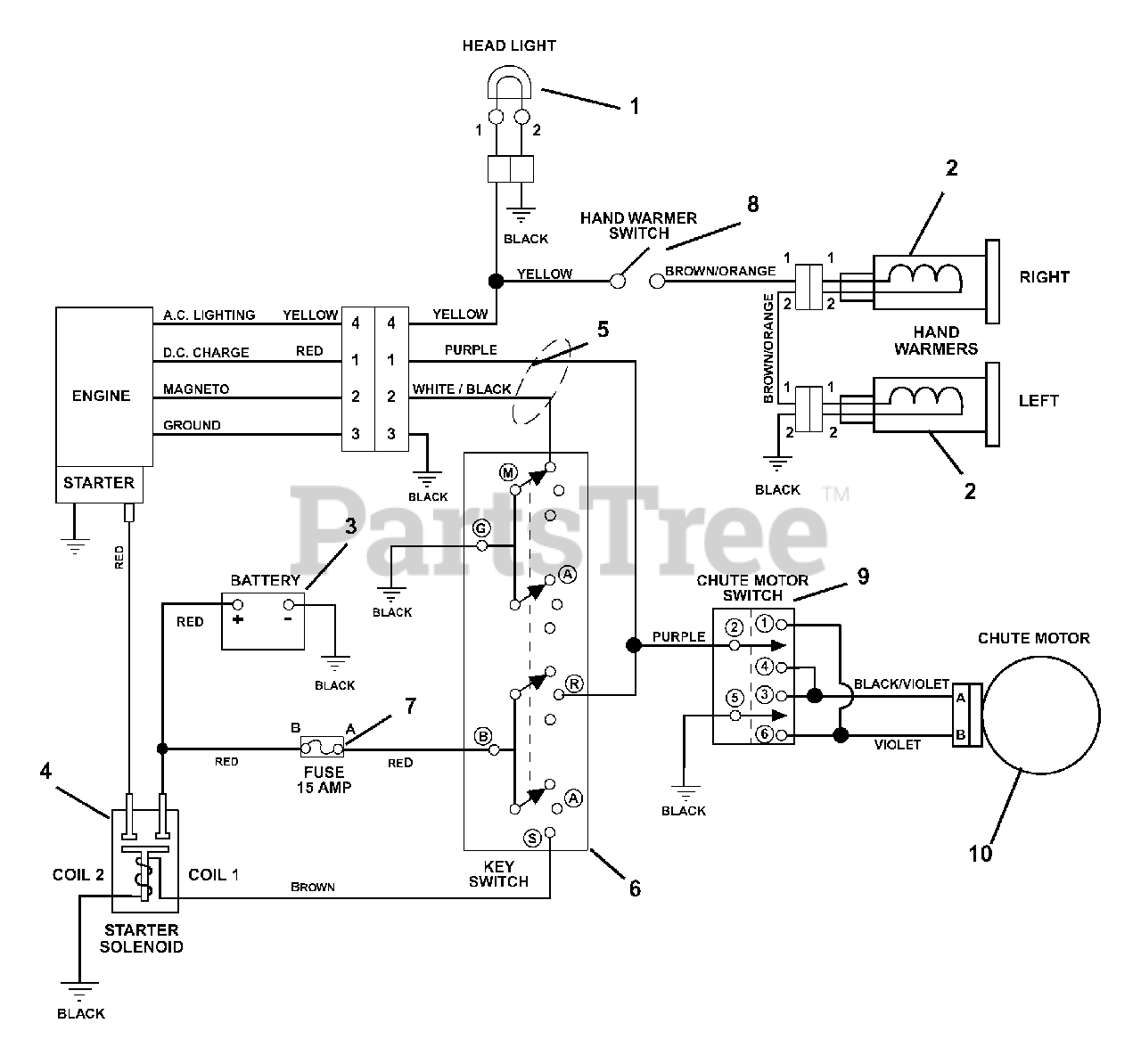

924517 (ST 1336 DLE) - Ariens 36" Snow Blower, 13hp Tecumseh (SN: 000101 & Above) Wiring Diagram Parts Diagram

36" Snow Blower, 13hp Tecumseh

Wiring Diagram Parts Diagram

  • Title
1

Ariens 02485000

HEADLAMP, OVAL W/ 1156 BULB
(Superseded to 52423200)

$52.99

$

Usually ships in 4-12 days

0

2

Ariens 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

$46.99

$

In Stock, only 2 left!

0

3

Battery Recommend 240 Minimum CCA at 0° F. Size U1R or U1L

$

$

Not available

4

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

5

Ariens 00277800

HARNESS, WIRE-LT,HW,12V,CHUTE
(Superseded to 00277801)

$

$

Not available

6

Ariens 52709300

SWITCH ASSEMBLY

$56.99

$

In Stock, Qty 6

0

7

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

8

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 02485600

SWITCH, CHUTE ROTATION

$51.99

$

In Stock, only 2 left!

0

10

Ariens 52422000

MOTOR, ELECTRIC CHUTE
(Superseded to 52423300)

$

$

Not available
