924517 (ST 1336 DLE) - Ariens 36" Snow Blower, 13hp Tecumseh (SN: 000101 & Above) Discharge Chute - Electric Parts Diagram

36" Snow Blower, 13hp Tecumseh

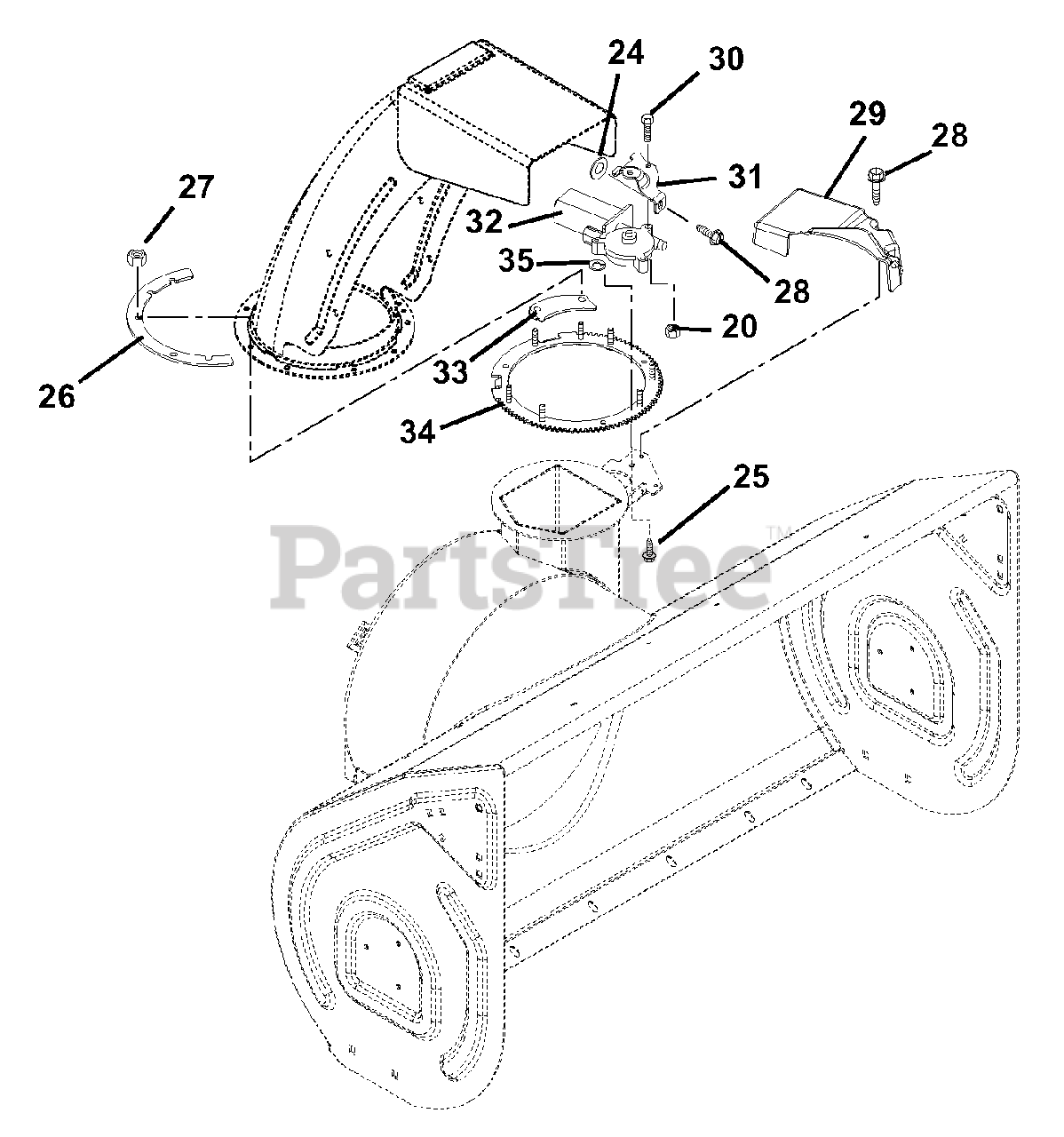

Discharge Chute - Electric Parts Diagram

  • Title

20

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (517)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (517)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

Note: (517)

$1.49

$

In Stock, Qty 12

0

26

Ariens 02486959

RING, COVER

Note: (517)

$31.99

$

Usually ships in 4-12 days

0

27

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: (517)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

Note: (517)

$2.49

$

In Stock, Qty 11

0

29

Ariens 02487100

COVER, MOTOR

Note: (517)

$

$

Not available

30

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

Note: (517)

$1.99

$

In Stock, Qty 5

0

31

Ariens 02488251

BRACKET, ELECTRIC MOTOR

Note: (517)

$51.99

$

Usually ships in 4-12 days

0

32

Ariens 52422000

MOTOR, ELECTRIC CHUTE
(Superseded to 52423300)

Note: (517)

$

$

Not available

33

Ariens 02487000

CLAMP, CHUTE

Note: (517)

$12.99

$

In Stock, Qty 7

0

34

Ariens 02486800

GEAR, CHUTE

Note: (517)

$93.99

$

Usually ships in 4-12 days

0

35

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (517)

$0.99

$

In Stock, Qty 20+

0
