924516 (ST 1332 DLE) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 & Above) Speed Selector And Frame Parts Diagram

32" Snow Blower, 13hp Tecumseh

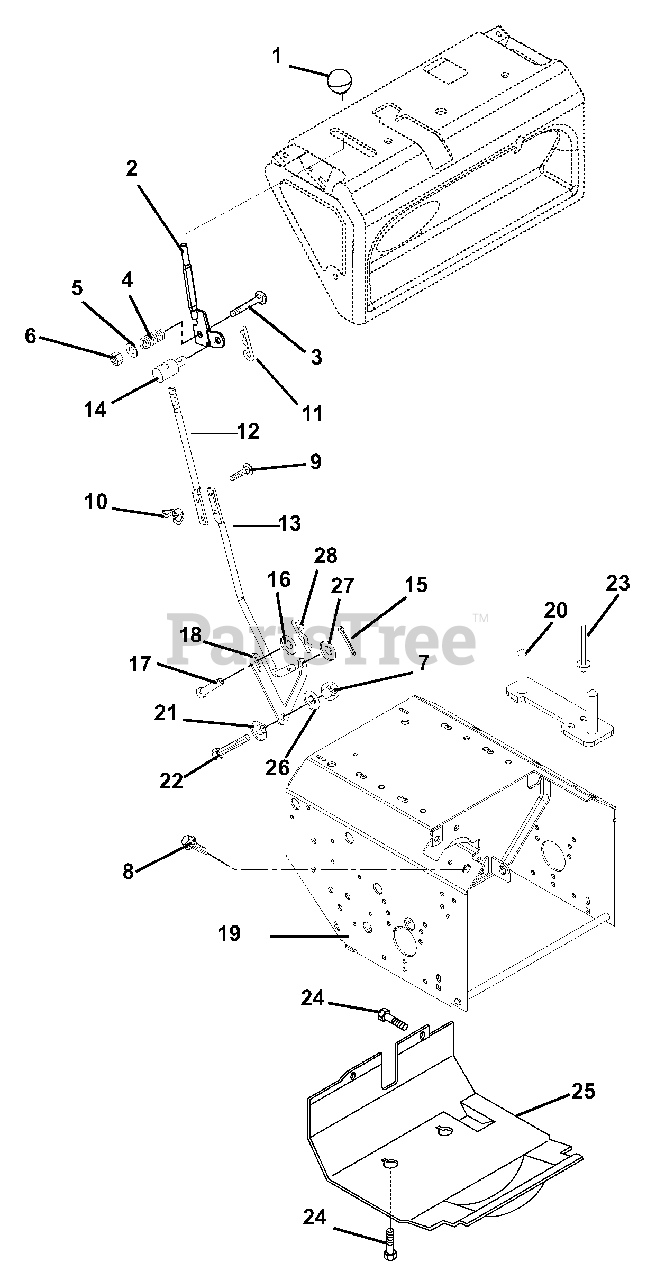

Speed Selector And Frame Parts Diagram

  • Title
1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 7

0

2

Ariens 03247900

WMT, SHIFT LEVER

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

4

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

5

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

10

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

11

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 02492800

ROD, SHIFT-UPPER

$39.99

$

Usually ships in 4-12 days

0

13

Ariens 02487700

ROD, SHIFT-LOWER

$

$

Not available

14

Ariens 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

15

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

16

Ariens 06436500

WSHR-FL-STL .382X.812X.023YWZC

$2.49

$

In Stock, only 2 left!

0

17

Ariens 01215100

CLEVIS PIN

$

$

Not available

18

Ariens 02498700

ARM, SHIFT

$21.99

$

Usually ships in 4-12 days

0

19

Ariens 02498559

FRAME, MAIN-WELDMENT

$438.99

$

Usually ships in 4-12 days

0

20

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$

$

Not available

21

Ariens 05534600

BSHG-FLG .325X.500X.327X.875

$

$

Not available

22

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

24

Ariens 07415900

SCR-TAP .31-18X.375 HWH TR YZ
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 02477159

COVER, BOTTOM
(Superseded to 02443059)

$90.99

$

Usually ships in 4-12 days

0

26

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0
