924507 (PB 936) - Ariens 36" Power Brush, 9hp Tecumseh (SN: 000800 & Above) Brush Drive Unit Parts Diagram

36" Power Brush, 9hp Tecumseh

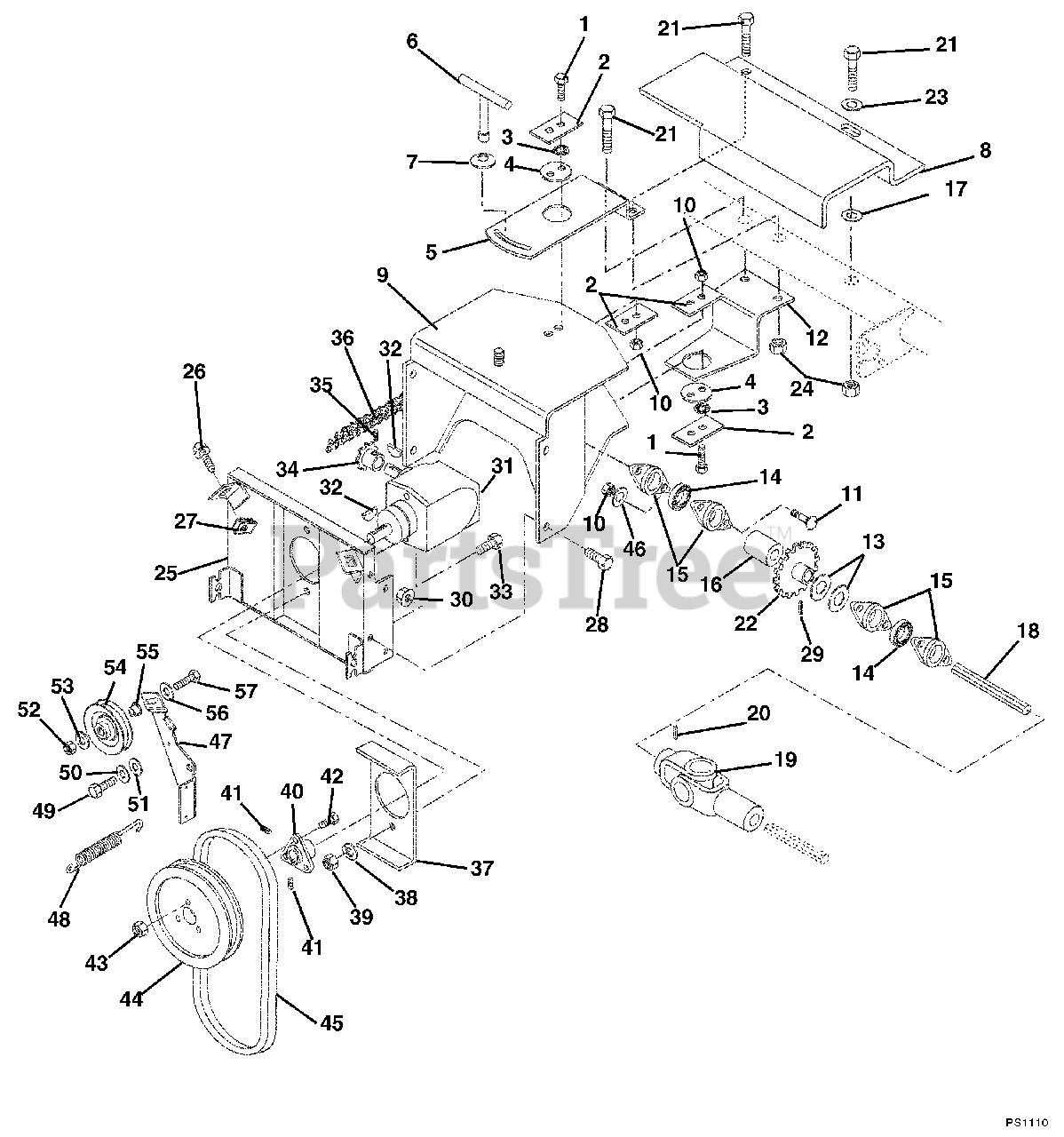

Brush Drive Unit Parts Diagram

  • Title

1

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

2

Ariens 02404800

RETAINER

$17.99

$

In Stock, only 2 left!

0

3

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

4

Ariens 02404900

PIVOT CENTER

$20.99

$

In Stock, only 2 left!

0

5

Ariens 02471751

PLATE, TOP MOUNT

$86.99

$

Usually ships in 4-12 days

0

6

Ariens 02470900

T-LOCK HANDLE

$59.99

$

Usually ships in 4-12 days

0

7

Ariens 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

8

Ariens 02470151

GUARD, SHAFT

$

$

Not available

9

Ariens 02405051

FRAME, ADAPTOR

$

$

Not available

10

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 02471851

PLATE, BOTTOM MOUNT

$77.99

$

Usually ships in 4-12 days

0

13

Ariens 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 05409700

BRG-BALL .884HEXX52MMX1.07

$94.99

$

Usually ships in 4-12 days

0

15

Ariens 02429600

BEARING FLANGE

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 02447600

SPACER 1.006X1.307X.500

$24.99

$

Usually ships in 4-12 days

0

17

Ariens 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 02429100

SHAFT

$77.99

$

Usually ships in 4-12 days

0

19

Ariens 02495500

JOINT, UNIVERSAL

$285.99

$

Usually ships in 4-12 days

0

20

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

21

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 01062000

SPROCKET

$103.99

$

Usually ships in 4-12 days

0

23

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 02498851

PLATE, MOUNTING-BROOM

$

$

Not available

26

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.49

$

In Stock, Qty 16

0

28

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05805600

PIN-ROLL .188X1.75

$1.99

$

Usually ships in 4-12 days

0

30

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 02400400

GEAR BOX ASSEMBLY

$571.99

$

Usually ships in 4-12 days

0

32

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

33

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 02429800

SPROCKET

$

$

Not available

35

Ariens 06001100

SCR-SET .25-20X.38 SKHCUPNL OH

$2.49

$

In Stock, only 2 left!

0

36

Ariens 01207800

CHAIN
(Superseded to 02477700)

$14.99

$

In Stock, Qty 7

0

37

Ariens 02429551

PLATE, STIFFENER

$

$

Not available

38

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 50202100

HUB ASSEMBLY

$85.99

$

In Stock, only 3 left!

0

41

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 15

0

42

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

43

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$51.99

$

In Stock, Qty 5

0

45

Ariens 07210800

V-BELT, 4L-RAW EDGE

$46.99

$

In Stock, Qty 20+

0

Ariens 07238400

V-BELT, HA-RAW EDGE

$33.99

$

In Stock, only 3 left!

0

46

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 52418200

ARM, AUGER/BRAKE-HIGH W/LINING

$57.99

$

Usually ships in 4-12 days

0

48

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

49

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

52

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

53

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

55

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

56

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0
