924505 (ST 1332) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 - 003249) Gear Case - Cast Iron Parts Diagram

32" Snow Blower, 13hp Tecumseh

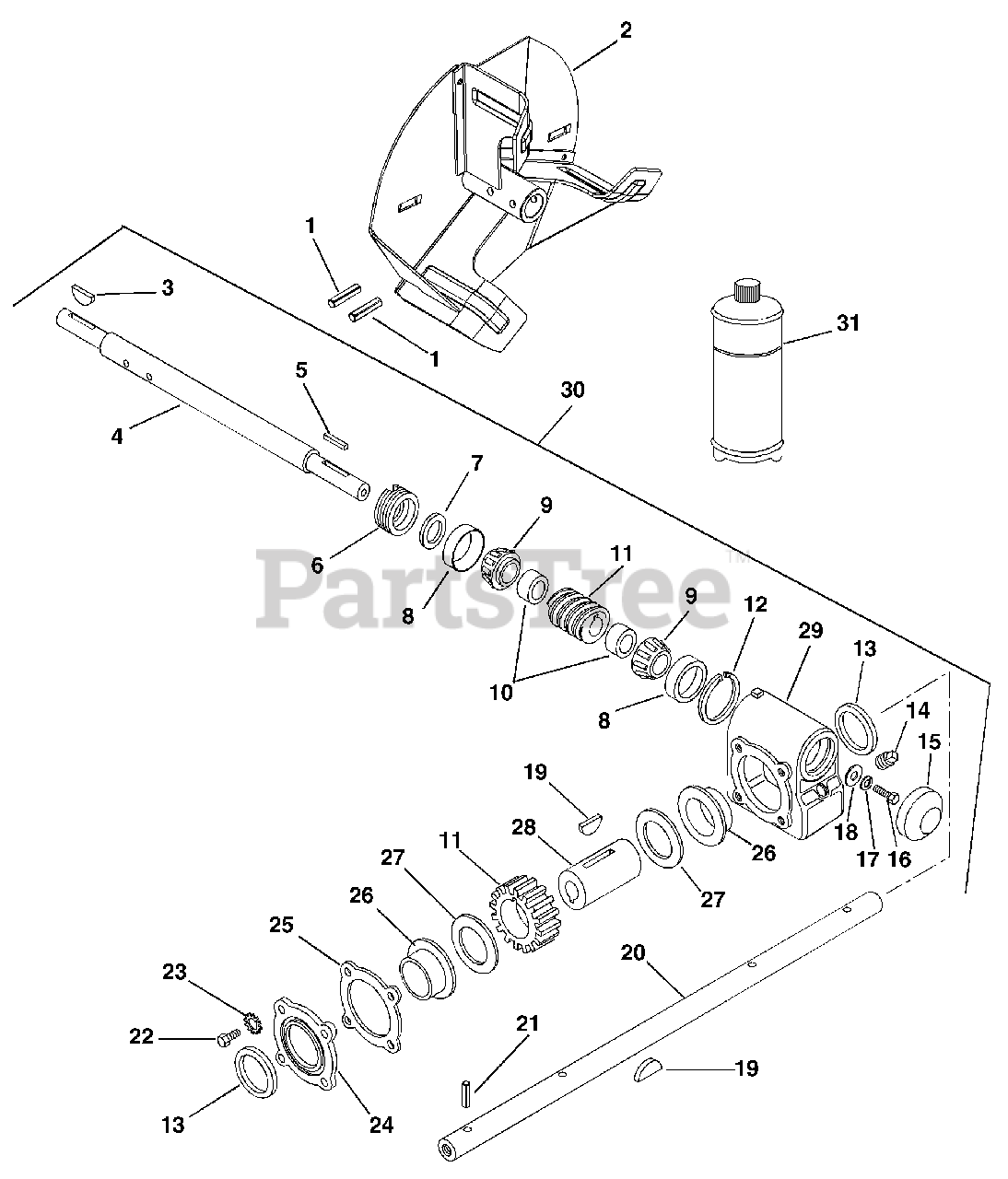

Gear Case - Cast Iron Parts Diagram

  • Title

1

Ariens 05801500

PIN-ROLL .313X1.75

$2.49

$

In Stock, Qty 6

0

2

Ariens 02476951

IMPELLER - 1 ID X 14 OD

Note: (Model 506)

$

$

Not available

2

Ariens 00643151

IMPELLER - 1.00 ID X 12" OD

Note: (Models 117, 300, 508, 505)

$199.99

$

Usually ships in 4-12 days

0

3

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

4

Ariens 02437500

SHAFT, WORM - 1.00 DIA.

Note: (Model 506)

$203.99

$

Usually ships in 4-12 days

0

4

Ariens 02406200

SHAFT, WORM - 1.00 DIA.

Note: (Models 117, 300, 508, 505)

$258.99

$

Usually ships in 4-12 days

0

5

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

6

Ariens 02401500

ADJUSTMENT PLUG - 1" SHAFT

$92.99

$

Usually ships in 4-12 days

0

7

Ariens 05606100

SEAL 1.000X1.312X.150

$11.99

$

In Stock, Qty 20+

0

8

Ariens 05404400

BRG-CUP 1.781X.475

$10.99

$

In Stock, Qty 20+

0

9

Ariens 05404500

BRG-CONE .750X.61

$23.99

$

In Stock, Qty 11

0

10

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

11

Ariens 52400900

WORM & GEAR SERVICE ASSEMBLY

$176.99

$

Usually ships in 4-12 days

0

12

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, Qty 11

0

13

Ariens 05607000

SEAL 1.625X2.125X.250

$9.99

$

In Stock, Qty 20+

0

14

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 1 left!

0

16

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

19

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

20

Ariens 02472100

SHAFT, 24" RAKE - 1.00 DIA.

Note: (Models 117, 300)

$199.99

$

Usually ships in 4-12 days

0

20

Ariens 02459600

SHAFT, 28" RAKE - 1.00 DIA.

Note: (Model 508)

$68.99

$

Usually ships in 4-12 days

0

20

Ariens 02406500

SHAFT, 32" RAKE - 1.00 DIA.

Note: (Model 505)

$218.99

$

Usually ships in 4-12 days

0

20

Ariens 03519500

SHAFT, 36" RAKE - 1.00 DIA.

Note: (Model 506)

$

$

Not available

21

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

22

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

24

Ariens 02401300

GEAR CASE COVER

$136.99

$

Usually ships in 4-12 days

0

25

Ariens 00200800

GASKET

$3.99

$

In Stock, Qty 20+

0

26

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$14.99

$

In Stock, only 2 left!

0

27

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

28

Ariens 02406400

GEAR CASE SHAFT

$180.99

$

Usually ships in 4-12 days

0

29

Ariens 02400200

GEAR CASE - CAST IRON

$

$

Not available

30

Ariens 52408000

GEAR CASE, CAST IRON

Note: (Models 117, 300, 505, 508)

$821.99

$

Usually ships in 4-12 days

0

30

Ariens 52403500

GEAR CASE - CAST IRON

Note: (Model 506)

$985.99

$

Usually ships in 4-12 days

0

31

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (5 OZ. CAPACITY)

$18.99

$

In Stock, Qty 20+

0
