924503 (ST 1336) - Ariens 36" Snow Blower, 13hp Tecumseh (SN: 000101 & Above) Headlight Parts Diagram

36" Snow Blower, 13hp Tecumseh

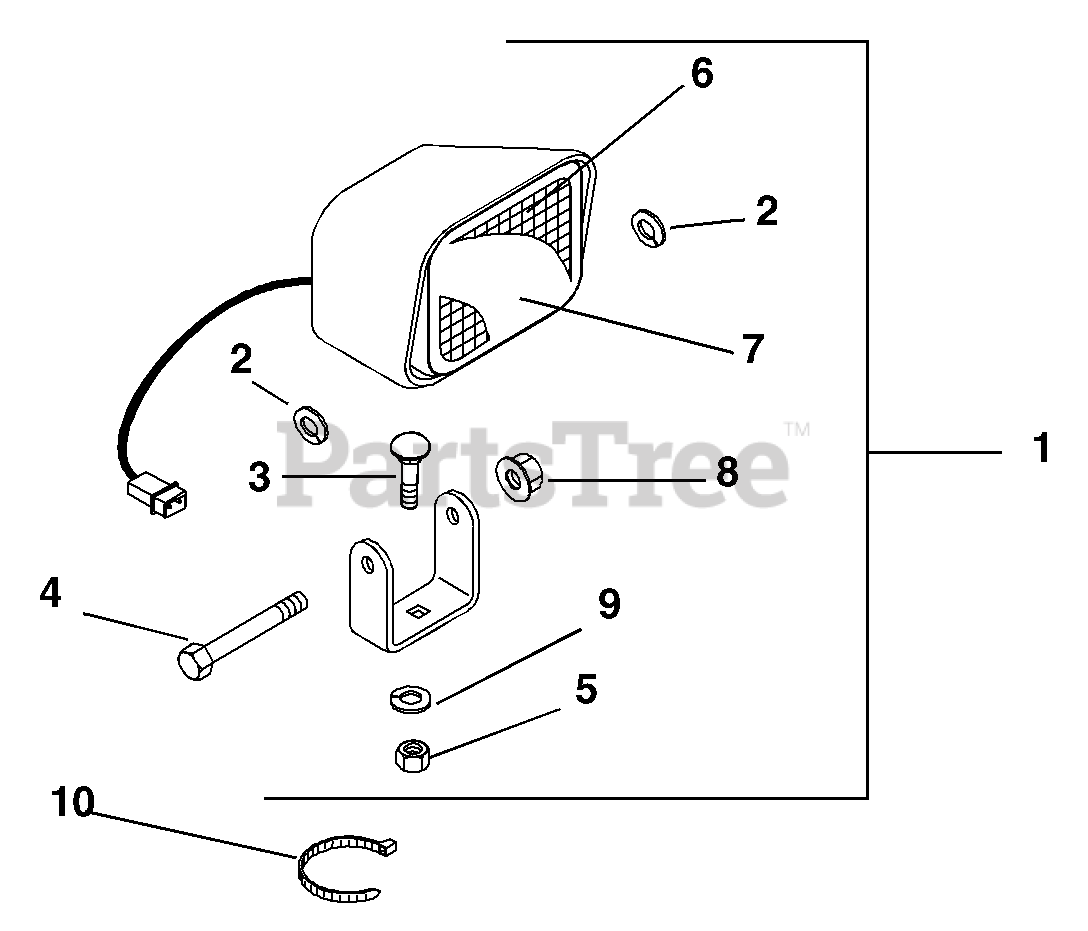

Headlight Parts Diagram

  • Title
1

Ariens 02485900

HEADLIGHT
(Superseded to 02463600)

Note: (Contains 2-9)

$83.99

$

Usually ships in 4-12 days

0

2

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

3

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

6

Ariens 02464900

LENSE-FLOOD

$

$

Not available

$23.99

$

In Stock, only 1 left!

0

8

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available
