924334 (ST 1028) - Ariens 28" Snow Blower, 11hp Tecumseh (SN: 000101 & Above) Wiring Diagram Parts Diagram

28" Snow Blower, 11hp Tecumseh

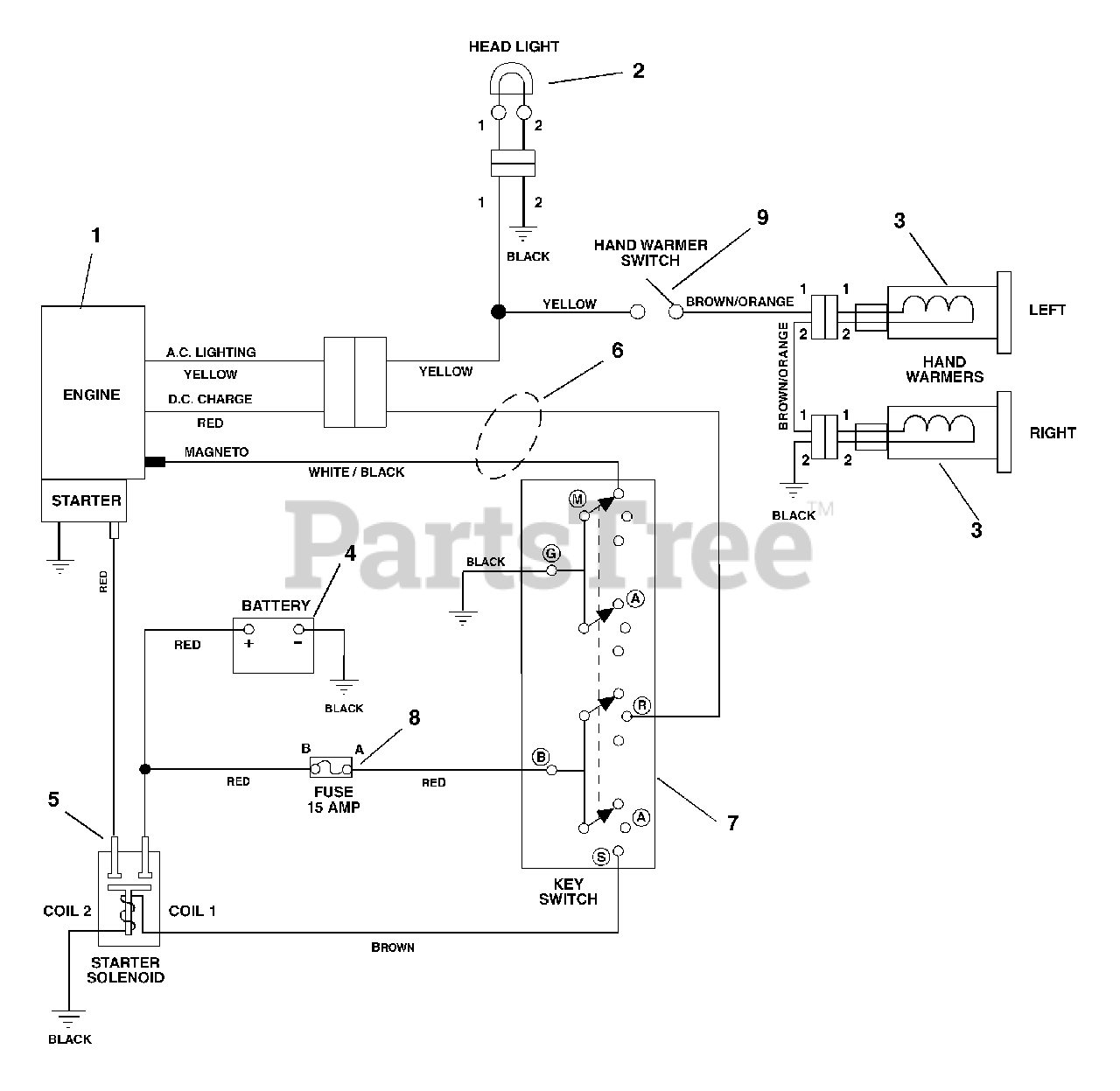

Wiring Diagram Parts Diagram

  • Title
1

Ariens 08260800

ENGINE, 10HP OHV TEC.-12 VOLT

$

$

Not available

Ariens 08261000

ENGINE, 11HP OHV TEC.-12 VOLT

$

$

Not available

2

Ariens 02485900

HEADLIGHT
(Superseded to 02463600)

$83.99

$

Usually ships in 4-12 days

0

3

Ariens 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

$46.99

$

In Stock, only 2 left!

0

4

Battery

Note: Recommend 340 to 350 CCA at 0° F. Size U1R or U1L

$

$

Not available

5

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Ariens 02488900

WIRE HARNESS 12V, HG&L

$

$

Not available

7

Ariens 52707300

SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 5

0

8

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

9

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0
