924334 (ST 1028) - Ariens 28" Snow Blower, 11hp Tecumseh (SN: 000101 & Above) Auger And Battery Parts Diagram

28" Snow Blower, 11hp Tecumseh

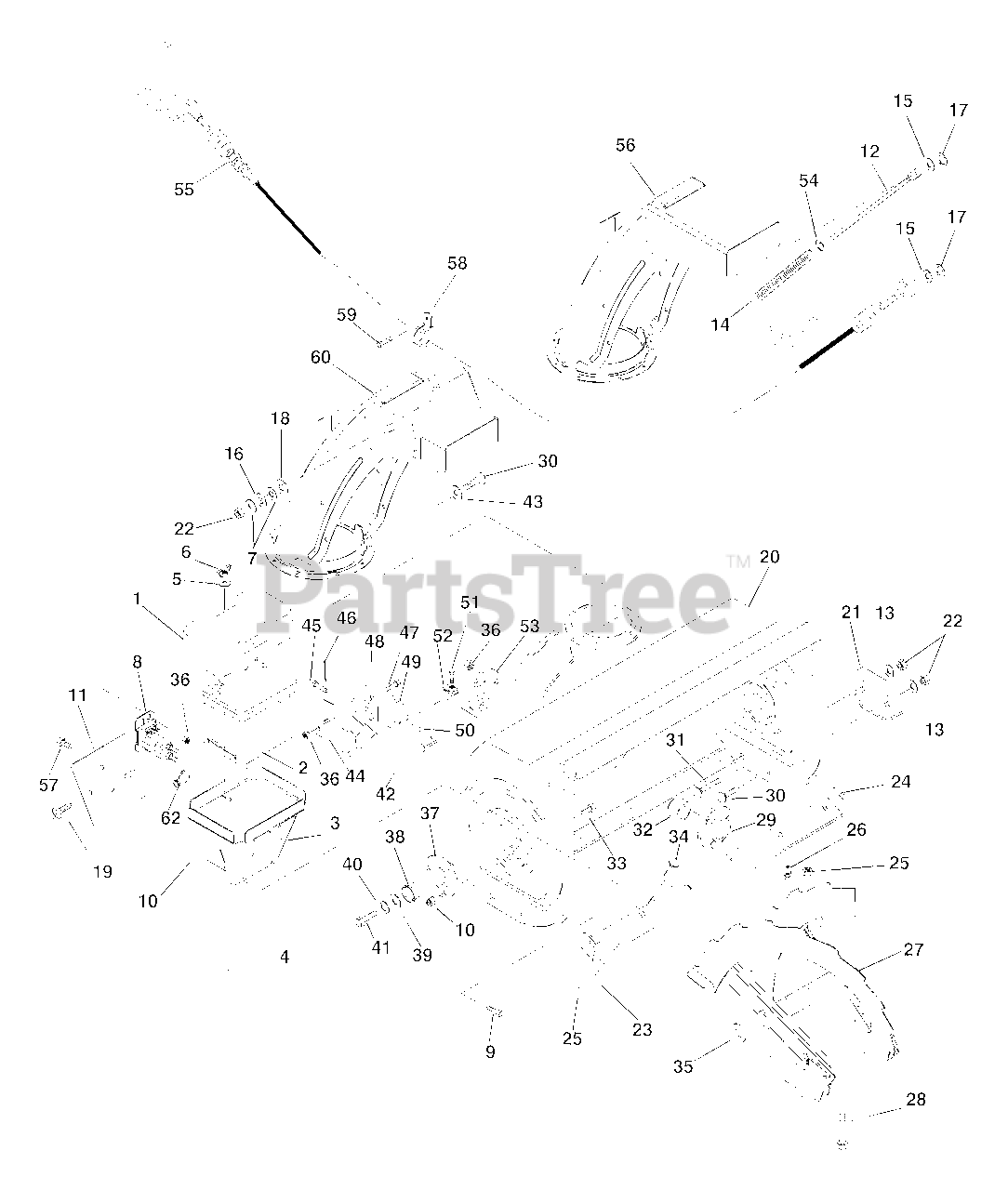

Auger And Battery Parts Diagram

  • Title

1

Ariens 09032300

COVER, BATTERY
(Superseded to 04912900)

Note: (333, 334, 502, 503)

$11.99

$

Usually ships in 4-12 days

0

2

Battery

Note: Recommend 340 to 350 CCA at 0° F. Size U1R or U1L (333, 334, 502, 503)

$

$

Not available

3

Ariens 02484559

TRAY, BATTERY - (36")

Note: (503)

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 02488659

TRAY, BATTERY
(Superseded to 52422200)

Note: (333, 334, 502)

$122.99

$

Usually ships in 4-12 days

0

4

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

Note: (333, 334, 502, 503)

$4.49

$

In Stock, only 2 left!

0

5

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (333, 334, 502, 503)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

Note: (333, 334, 502, 503)

$4.99

$

In Stock, Qty 19

0

7

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (333, 334, 502, 503)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 03679000

SOLENOID
(Superseded to 59223400)

Note: (333, 334, 502, 503)

$60.99

$

In Stock, Qty 20+

0

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (333, 334, 502, 503)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 02484459

COVER, SOLENOID

Note: (333, 334, 502, 503)

$15.99

$

In Stock, only 1 left!

0

12

Ariens 02479800

ROD, CHUTE

Note: (119, 502, 503)

$28.99

$

In Stock, only 2 left!

0

13

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 08335200

SPRING, COMP. .08 X .40 X 7.15

Note: (119, 502, 503)

$20.99

$

In Stock, only 4 left!

0

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (119, 502, 503)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 01320200

WAVE WASHER .390X.655X.110

Note: (120, 333, 334)

$3.49

$

In Stock, Qty 7

0

17

Ariens 05718500

RG-RTNG-EXT .218X.035 TYPE E

Note: (119, 502, 503)

$3.99

$

In Stock, Qty 12

0

18

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

Note: (120, 333, 334)

$0.99

$

In Stock, Qty 11

0

19

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (333, 334, 502, 503)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 52414200

HOUSING, 28" BLOWER

Note: (119)

$

$

Not available

20

Ariens 52414300

HOUSING, 24" BLOWER

Note: (120)

$678.99

$

Usually ships in 4-12 days

0

20

Ariens 52414400

HOUSING, 24" BLOWER

Note: (333)

$

$

Not available

20

Ariens 52414500

HOUSING, 28" BLOWER

Note: (334)

$

$

Not available

20

Ariens 52414600

HOUSING, 32" BLOWER

Note: (502)

$

$

Not available

20

Ariens 52414700

HOUSING, 36" BLOWER

Note: (503)

$

$

Not available

21

Ariens 02483059

RUNNER, SKID SHOE-1/2" FLANGE

Note: (120, 333, 334, 502, 503)

$37.99

$

In Stock, Qty 7

0

21

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

Note: (119)

$19.99

$

In Stock, Qty 20+

0

22

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (119, 502, 503)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (120, 333, 334)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (119, 120, 333, 334)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (502)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (503)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 02479159

SCRAPER, BLADE 28"

Note: (119)

$40.99

$

In Stock, Qty 9

0

24

Ariens 01016400

SCRAPER BLADE 24"
(Superseded to 01016459)

Note: (120, 333)

$43.99

$

In Stock, Qty 20+

0

24

Ariens 00620159

BLADE, SCRAPPER - 28"

Note: (334)

$56.99

$

Usually ships in 4-12 days

0

24

Ariens 00620859

BLADE, 32" SCRAPPER

Note: (502)

$68.99

$

In Stock, only 4 left!

0

24

Ariens 03519259

BLADE, SCRAPPER - 36"

Note: (503)

$62.99

$

In Stock, only 1 left!

0

25

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (119, 120, 333, 334)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (502)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (503)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

27

Ariens 52410700

RAKE, LEFT-28"(1"ID X 15.75OD)

Note: (334)

$

$

Not available

27

Ariens 52410800

RAKE, RIGHT-28"(1ID X 15.75OD)

Note: (334)

$439.99

$

Usually ships in 4-12 days

0

27

Ariens 52413600

RAKE, R.H.-24"(1 ID X 15.75OD)

Note: (120, 333)

$244.99

$

Usually ships in 4-12 days

0

27

Ariens 52413500

RAKE, L.H.-24"(1 ID X 15.75OD)

Note: (120, 333)

$244.99

$

Usually ships in 4-12 days

0

27

Ariens 52411800

RAKE, LEFT-28"(1"ID X 14.75OD)

Note: (119)

$451.99

$

Usually ships in 4-12 days

0

27

Ariens 52411900

RAKE, RIGHT-28"(1ID X 14.75OD)

Note: (119)

$328.99

$

Usually ships in 4-12 days

0

27

Ariens 52412200

RAKE, LEFT-32"(1"ID X 15.75OD)

Note: (502)

$373.99

$

Usually ships in 4-12 days

0

27

Ariens 52412300

RAKE, RIGHT-32"(1ID X 15.75OD)

Note: (502)

$373.99

$

Usually ships in 4-12 days

0

27

Ariens 52412500

RAKE, LEFT-36"(1"ID X 15.75OD)

Note: (503)

$

$

Not available

27

Ariens 52412600

RAKE, RIGHT-36"(1ID X 15.75OD)

Note: (503)

$

$

Not available

28

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 25)

$4.99

$

In Stock, Qty 20+

0

29

Ariens 00301700

BEARING FLANGE

Note: (119,120, 333, 334, 502)

$17.99

$

In Stock, Qty 17

0

29

Ariens 03086200

BEARING FLANGE

Note: (503)

$22.99

$

Usually ships in 4-12 days

0

30

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

Note: (119, 502, 503)

$2.49

$

In Stock, Qty 20+

0

30

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

Note: (120, 333, 334)

$2.49

$

In Stock, Qty 20+

0

31

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 05418200

BRG-BALL1.0X2.0X.56

Note: (503)

$30.99

$

In Stock, Qty 12

0

32

Ariens 05406300

BRG-BALL .750X1.750X.50

Note: (119, 120, 333, 334, 502)

$25.99

$

In Stock, Qty 20+

0

33

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, Qty 20+

0

34

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (119, 120, 333, 334, 502)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (502)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (503)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 02437451

BEARING SUPPORT
(Superseded to 05063300)

$29.99

$

In Stock, only 2 left!

0

38

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 20+

0

39

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

40

Ariens 06306600

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

41

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

42

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

43

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

Note: (120, 333, 334)

$2.49

$

In Stock, only 2 left!

0

44

Ariens 02440551

ARM EXTENSION

Note: (119)

$16.99

$

Usually ships in 4-12 days

0

45

Ariens 02448100

PIN-CLEV .371X1.16 YWZC

$3.49

$

Usually ships in 4-12 days

0

46

Ariens 06707500

@PIN-CTR .06X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 3 left!

0

47

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (119)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 52404800

BRAKE ARM ASSEMBLY

Note: (Contains Items 49, 50)

$28.99

$

In Stock, only 2 left!

0

49

Ariens 02217800

BRAKE LINING

$9.49

$

In Stock, only 1 left!

0

50

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 15

0

51

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.49

$

In Stock, Qty 16

0

53

Ariens 01014200

BEARING FLANGE

Note: (119, 120, 333, 334, 502)

$5.99

$

In Stock, Qty 20+

0

53

Ariens 03086100

BEARING FLANGE

Note: (503)

$17.99

$

In Stock, only 1 left!

0

54

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (119, 502, 503)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 06945400

CABLE, DEFLECTOR CONTROL

Note: (119, 502, 503)

$103.99

$

In Stock, only 3 left!

0

56

Ariens 52411000

CHUTE, DISCHARGE W/REMOTE

Note: (119, 502, 503)

$

$

Not available

57

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 06908200

CLAMP, CUSHIONED STEEL

Note: (119, 502, 503)

$5.99

$

Usually ships in 4-12 days

0

59

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (119, 502, 503)

$1.49

$

In Stock, Qty 20+

0

60

Ariens 52410900

CHUTE, DISCHARGE W/O REMOTE

Note: (120, 333, 334)

$

$

Not available

61

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

62

Ariens 07533200

BOOT, EYELET TERMINAL

Note: (333, 334, 502, 503)

$3.49

$

In Stock, only 3 left!

0
