924327 (ST 1028 SLE) - Ariens 28" Snow Blower, 10hp Tecumseh (SN: 000101 & Above) Wheels And Axle (Part 1) Parts Diagram

28" Snow Blower, 10hp Tecumseh

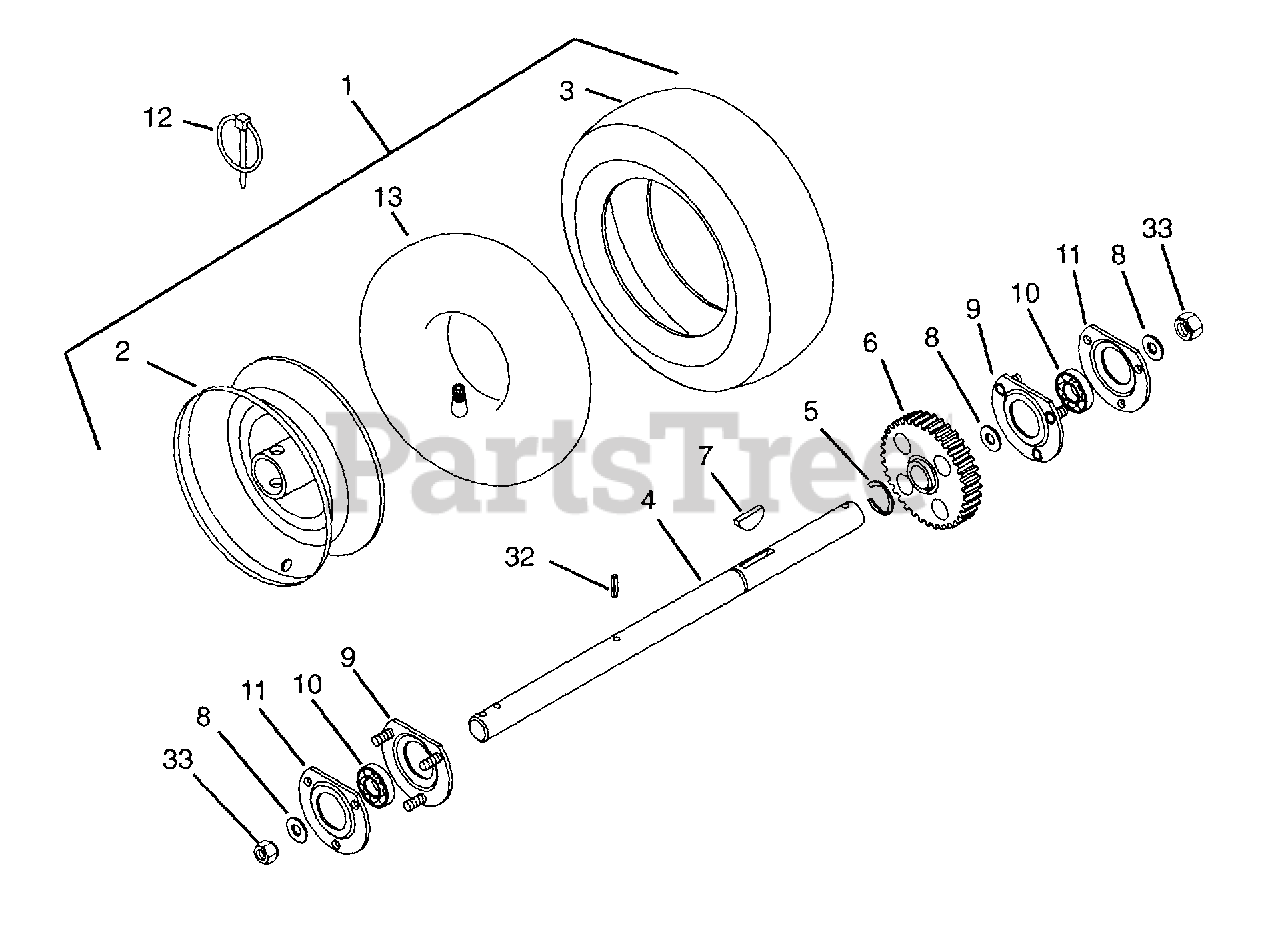

Wheels And Axle (Part 1) Parts Diagram

  • Title
1

Ariens 07150200

TIRE/WHEEL ASSEMBLY 4.80X8

Note: For model (108)

$

$

Not available

Ariens 07150300

TIRE/WHEEL ASSEMBLY 16X6.50-8

Note: For models (109, 327)

$125.99

$

Usually ships in 4-12 days

0

2

Ariens 07150400

WHL 4.80-8

Note: For model (108)

$

$

Not available

Ariens 07150500

WHL 6.50X8
(Superseded to 07150300)

Note: For models (109, 327)

$125.99

$

Usually ships in 4-12 days

0

3

Ariens 07121800

TIRE 4.80-8 NHS

Note: For models (108, 110, 111, 328)

$74.99

$

Usually ships in 4-12 days

0

Ariens 07121600

TIRE 16X6.50-8 SNO-HOG TREAD
(Superseded to 07124000)

Note: For models (109, 112, 113, 327, 329, 330, 500)

$

$

Not available

4

Ariens 02481200

SHAFT, AXLE
(Superseded to 02483200)

Note: For models (108, 109, 327)

$91.99

$

Usually ships in 4-12 days

0

5

Ariens 05718400

RG-RTNG-EXT. .875X.050

Note: For models (108, 109, 327)

$

$

Not available

6

Ariens 02439600

GEAR, SPUR

Note: For models (108, 109, 327)

$84.99

$

In Stock, only 1 left!

0

7

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

Note: For models (108, 109, 327)

$3.99

$

In Stock, only 2 left!

0

8

Ariens 06436900

WSHR-FL-STL .880X1.250X.062YWZ

Note: For models (108, 109, 327)

$2.49

$

In Stock, Qty 11

0

9

Ariens 00301700

BEARING FLANGE

Note: For models (108, 109, 327)

$17.99

$

In Stock, Qty 17

0

10

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

Usually ships in 4-12 days

0

11

Ariens 01014200

BEARING FLANGE

Note: For models (108, 109, 327)

$5.99

$

In Stock, Qty 20+

0

12

Ariens 07053700

PIN-LOK .31X1.75

Note: For models (108, 109, 327)

$2.49

$

In Stock, Qty 20+

0

13

Ariens 07103700

TUBE

Note: For models (108, 110, 111, 328)

$14.99

$

In Stock, only 1 left!

0

Ariens 07108700

TUBE

Note: For models (112, 113, 329, 330, 500)

$34.99

$

Usually ships in 4-12 days

0

32

Ariens 05803000

PIN-ROLL .188X1.50

Note: For models (110-113, 328-330, 500)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
