924319 (ST 924 E) - Ariens 24" Snow Blower, 9hp Tecumseh (SN: 000101 & Above) Gear Case - Aluminum Parts Diagram

24" Snow Blower, 9hp Tecumseh

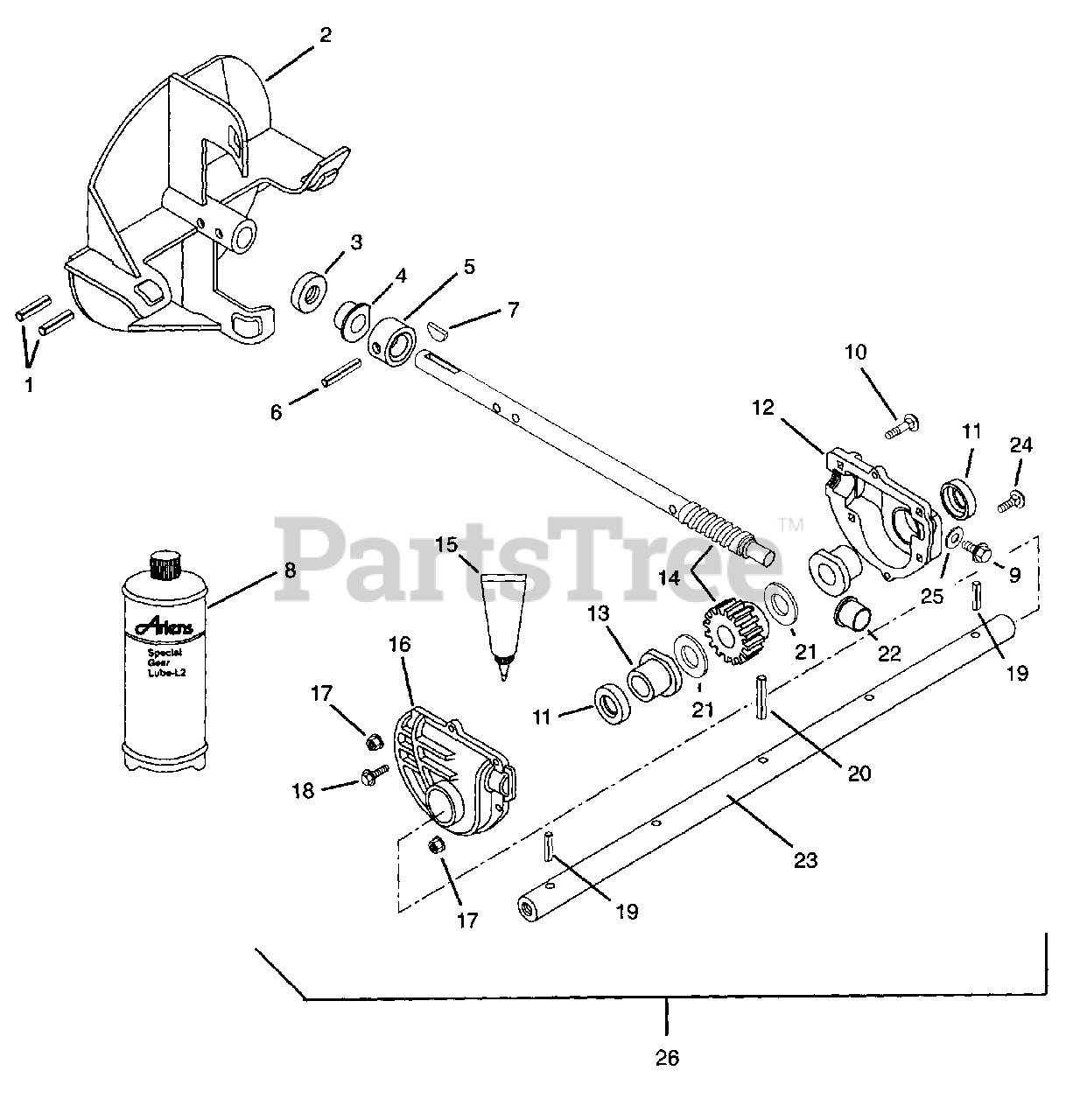

Gear Case - Aluminum Parts Diagram

  • Title

1

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

2

Ariens 02423700

FAN - 12"
(Superseded to 02423751)

$258.99

$

In Stock, only 1 left!

0

3

Ariens 05618900

SEAL-OIL .750X1.375X.250

$11.99

$

In Stock, Qty 20+

0

4

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 17

0

5

Ariens 03210300

THRUST COLLAR

$62.99

$

Usually ships in 4-12 days

0

6

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 5

0

7

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

8

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (2 oz capacity)

$18.99

$

In Stock, Qty 20+

0

9

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06219700

@BLT-RDHDSQNK .25-20X1.25 G5YZ

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 05618800

SEAL-OIL 1.000X1.375X.250

$11.99

$

In Stock, Qty 20+

0

12

Ariens 02470600

CASE, GEAR-LH-LARGE BORE-ALUM.
(Superseded to 52003300)

$105.99

$

In Stock, only 1 left!

0

13

Ariens 05530100

BSHG-FLG 1.00X1.12

$6.99

$

In Stock, Qty 5

0

14

Ariens 52402600

WORM SHAFT & GEAR ASSY

$

$

Not available

15

Ariens 00925700

LOCTITE GASKET 518--850CC CRTG

$

$

Not available

16

Ariens 02470700

CASE, GEAR-RH-LARGE BORE-ALUM.
(Superseded to 52003300)

$105.99

$

In Stock, only 1 left!

0

17

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

19

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05806900

PIN-GRV .313X1.44 TP C

$5.99

$

In Stock, Qty 5

0

21

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

22

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, Qty 9

0

23

Ariens 02438300

SHAFT, RAKE - 24"

$

$

Not available

24

Ariens 06214400

BLT-RDHDSQSHK .25-20X.88 GR5YW
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

25

Ariens 06442500

WSHR-FIBER .437X.656X.032

$0.99

$

In Stock, Qty 8

0

26

Ariens 52408100

GEAR CASE-LRG BORE-ALUM.- 24"
(Superseded to 52423000)

Note: (Contains Items 3-6,9-18, 20-25)

$581.99

$

Usually ships in 4-12 days

0
