924314 (ST 1228) - Ariens 28" Snow Blower, 12hp Tecumseh (SN: 000101 & Above) Auger And Impeller Parts Diagram

28" Snow Blower, 12hp Tecumseh

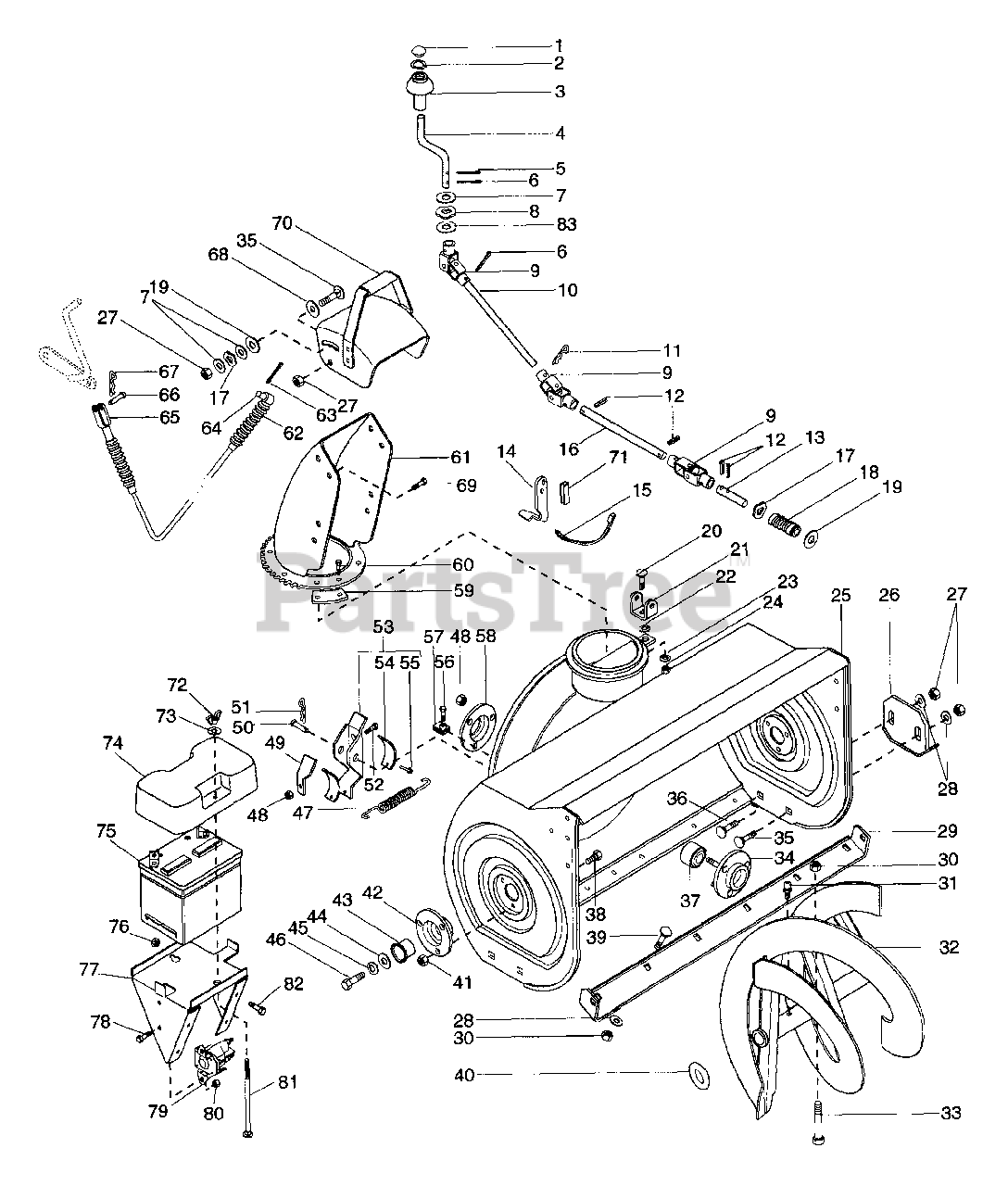

Auger And Impeller Parts Diagram

  • Title

1

Ariens 07516700

HOLE PLUG

$1.49

$

In Stock, Qty 16

0

2

Ariens 05711300

RG-RTNG-EXT .375X.010

$0.99

$

In Stock, only 3 left!

0

3

Ariens 07508300

KNOB

$13.99

$

In Stock, Qty 7

0

4

Ariens 02464400

CHUTE CRANK

$

$

Not available

5

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

6

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

7

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 02902400

SPRING WASHER

$18.99

$

Usually ships in 4-12 days

0

9

Ariens 52405000

UNIVERSAL JOINT ASSEMBLY
(Superseded to 02470400)

$129.99

$

Usually ships in 4-12 days

0

10

Ariens 02464100

CHUTE CRANK ROD

$

$

Not available

11

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

13

Ariens 01049400

WORM SHAFT

Note: (924082,093,311)

$43.99

$

In Stock, only 1 left!

0

13

Ariens 02451400

WORM SHAFT

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$

$

Not available

14

Ariens 02443400

CHUTE CRANK BRACKET
(Superseded to 02473551)

$

$

Not available

15

Ariens 06917000

CABLE TIE LG 8-7/8

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$

$

Not available

16

Ariens 02434600

ROD

$45.99

$

Usually ships in 4-12 days

0

17

Ariens 01026000

WAVE WASHER .406X.750X.063FH

Note: (924082,093,311)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 01320200

WAVE WASHER .390X.655X.110

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$3.49

$

In Stock, Qty 7

0

18

Ariens 02450000

WORM GEAR L.H.

$45.99

$

Usually ships in 4-12 days

0

19

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

20

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 02212300

WORM CLEVIS

$15.99

$

Usually ships in 4-12 days

0

22

Ariens 06303500

WSHR-LK-EXT .375X.035 PL
(Superseded to 06308700)

$1.99

$

Usually ships in 4-12 days

0

23

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.99

$

In Stock, only 2 left!

0

24

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

25

Ariens 52403700

BLOWER HOUSING W/DECALS 24
(Superseded to 52410000)

Note: (924082,093,311)

$

$

Not available

25

Ariens 52403800

BLOWER HOUSING W/DECALS 32
(Superseded to 52409700)

Note: (924084,087)

$657.99

$

In Stock, only 1 left!

0

25

Ariens 52404300

BLOWER HOUSING W/DECALS 36
(Superseded to 52410200)

Note: (924085,092,316)

$

$

Not available

25

Ariens 52406500

BLOWER HOUSING W/DECALS 28
(Superseded to 52409500)

Note: (924086,091,312,313,314)

$

$

Not available

26

Ariens 02459900

RUNNER
(Superseded to 02483859)

Note: (924082,093,311)

$19.99

$

In Stock, Qty 20+

0

26

Ariens 03075559

RUNNER - SKID SHOE

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$38.99

$

In Stock, only 4 left!

0

27

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 01016400

SCRAPER BLADE 24"
(Superseded to 01016459)

Note: (924082,093,311)

$43.99

$

In Stock, Qty 20+

0

29

Ariens 02437300

SCRAPER BLADE 32"

Note: (924084,087,315)

$68.99

$

In Stock, Qty 5

0

29

Ariens 02459200

SCRAPER BLADE 28"
(Superseded to 02459259)

Note: (924086,091,312,313)

$68.99

$

In Stock, only 4 left!

0

29

Ariens 03519200

SCRAPER BLADE 36"
(Superseded to 03519259)

Note: (924085,092,316)

$62.99

$

In Stock, only 1 left!

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

32

Ariens 52401300

RAKE, RIGHT-32"(1ID X 15.75OD)
(Superseded to 52412300)

Note: (924084,087)

$373.99

$

Usually ships in 4-12 days

0

32

Ariens 52401400

RAKE, LEFT-32"(1"ID X 15.75OD)
(Superseded to 52412200)

Note: (924084,087)

$373.99

$

Usually ships in 4-12 days

0

32

Ariens 52403900

RAKE, RIGHT-24"(1ID X 14.75OD)
(Superseded to 52411600)

Note: (924082,093,311)

$394.99

$

In Stock, only 1 left!

0

32

Ariens 52404000

RAKE, LEFT-24"(1"ID X 14.75OD)
(Superseded to 52411500)

Note: (924082,093,311)

$310.99

$

Usually ships in 4-12 days

0

32

Ariens 52406300

RAKE, RIGHT-28"(1ID X 15.75OD)
(Superseded to 52410800)

Note: (924086,091,312,313)

$439.99

$

Usually ships in 4-12 days

0

32

Ariens 52406400

RAKE, LEFT-28"(1"ID X 15.75OD)
(Superseded to 52410700)

Note: (924086,091,312,313)

$

$

Not available

32

Ariens 53503400

RAKE, RIGHT-36"(1ID X 15.75OD)
(Superseded to 52412600)

Note: (924085,092,316)

$

$

Not available

32

Ariens 53503500

RAKE, LEFT-36"(1"ID X 15.75OD)
(Superseded to 52412500)

Note: (924085,092,316)

$

$

Not available

33

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$4.99

$

In Stock, Qty 20+

0

34

Ariens 00301700

BEARING FLANGE

Note: (924082,093,311)

$17.99

$

In Stock, Qty 16

0

34

Ariens 03086200

BEARING FLANGE

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$22.99

$

Usually ships in 4-12 days

0

35

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

36

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 05418200

BRG-BALL1.0X2.0X.56

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$30.99

$

In Stock, Qty 12

0

37

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 20+

0

38

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

39

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$29.99

$

In Stock, only 2 left!

0

43

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 20+

0

44

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

45

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

46

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

47

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

48

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 02440500

ARM EXTENSION
(Superseded to 02440551)

Note: (924082,093,311)

$16.99

$

Usually ships in 4-12 days

0

50

Ariens 02448100

PIN-CLEV .371X1.16 YWZC

$3.49

$

Usually ships in 4-12 days

0

51

Ariens 06703900

PIN-COTR .062X.75 PL
(Superseded to 06707500)

$0.99

$

In Stock, only 3 left!

0

52

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

Note: (924082,093,311)

$1.99

$

In Stock, only 1 left!

0

53

Ariens 52404800

BRAKE ARM ASSEMBLY

$28.99

$

In Stock, only 2 left!

0

54

Ariens 02217800

BRAKE LINING

$9.49

$

In Stock, only 1 left!

0

55

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 15

0

56

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.49

$

In Stock, Qty 16

0

58

Ariens 01014200

BEARING FLANGE

Note: (924082,093,311)

$5.99

$

In Stock, Qty 20+

0

58

Ariens 03086100

BEARING FLANGE

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$17.99

$

In Stock, only 1 left!

0

59

Ariens 02463500

CHUTE CLAMP

$

$

Not available

60

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

61

Ariens 02449959

DISCHARGE CHUTE - HIGH

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$216.99

$

Usually ships in 4-12 days

0

61

Ariens 02454800

DISCHARGE CHUTE

Note: (924082,093,311)

$

$

Not available

62

Ariens 06919700

CONTROL CABLE
(Superseded to 06937700)

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$117.99

$

In Stock, only 2 left!

0

63

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

64

Ariens 06917500

PIVOT

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$37.99

$

Usually ships in 4-12 days

0

65

Ariens 02401200

CLEVIS

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$

$

Not available

66

Ariens 02401400

CLEVIS PIN

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$

$

Not available

67

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

68

Ariens 06410400

WSHR-FL-STL .520X.810X.033
(Superseded to 06439600)

Note: (924082,093,311)

$2.49

$

Usually ships in 4-12 days

0

69

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

70

Ariens 52406100

CHUTE DEFLECTOR W/DECAL

Note: (924082,093,311)

$149.99

$

Usually ships in 4-12 days

0

70

Ariens 53114400

DEFLECTOR W/DECAL

Note: (924084,085,086,087,091,092,312,313,314,315,316)

$

$

Not available

71

Ariens 02401700

TRIM

$

$

Not available

72

Ariens 06501200

NUT-WING .250-20 YWZC

Note: (91,92,314,316)

$2.49

$

Usually ships in 4-12 days

0

73

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

Note: (91,92,314,316)

$0.99

$

In Stock, Qty 20+

0

74

Ariens 09032300

COVER, BATTERY
(Superseded to 04912900)

Note: (91,92,314,316)

$11.99

$

Usually ships in 4-12 days

0

75

Ariens 03055700

BATTERY
(Superseded to 53123300)

Note: (91,92,314,316)

$

$

Not available

76

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (91,92,314,316)

$0.99

$

In Stock, Qty 20+

0

77

Ariens 02403159

TRAY, BATTERY

Note: (924087,091,092,314,315,316)

$28.99

$

Usually ships in 4-12 days

0

78

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

Note: (924087,091,092,314,315,316)

$1.99

$

In Stock, only 1 left!

0

79

Ariens 03551000

SOLENOID

Note: (924087,091,92)

$34.99

$

In Stock, Qty 14

0

80

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (924087, 091, 092, 314, 315, 316)

$0.99

$

In Stock, Qty 20+

0

81

Ariens 06218700

BLT-RDHDSQNK .25-20X7.00
(Superseded to 06220400)

Note: (924087,091,092,314,315,316)

$4.49

$

In Stock, only 2 left!

0

82

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

Note: (924087,091,092,314,315,316)

$0.99

$

In Stock, Qty 20+

0

83

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0
