924300 (ST 1024) - Ariens 24" Snow Blower, 10hp Tecumseh (SN: 000101 & Above) Wiring Diagram Parts Diagram

24" Snow Blower, 10hp Tecumseh

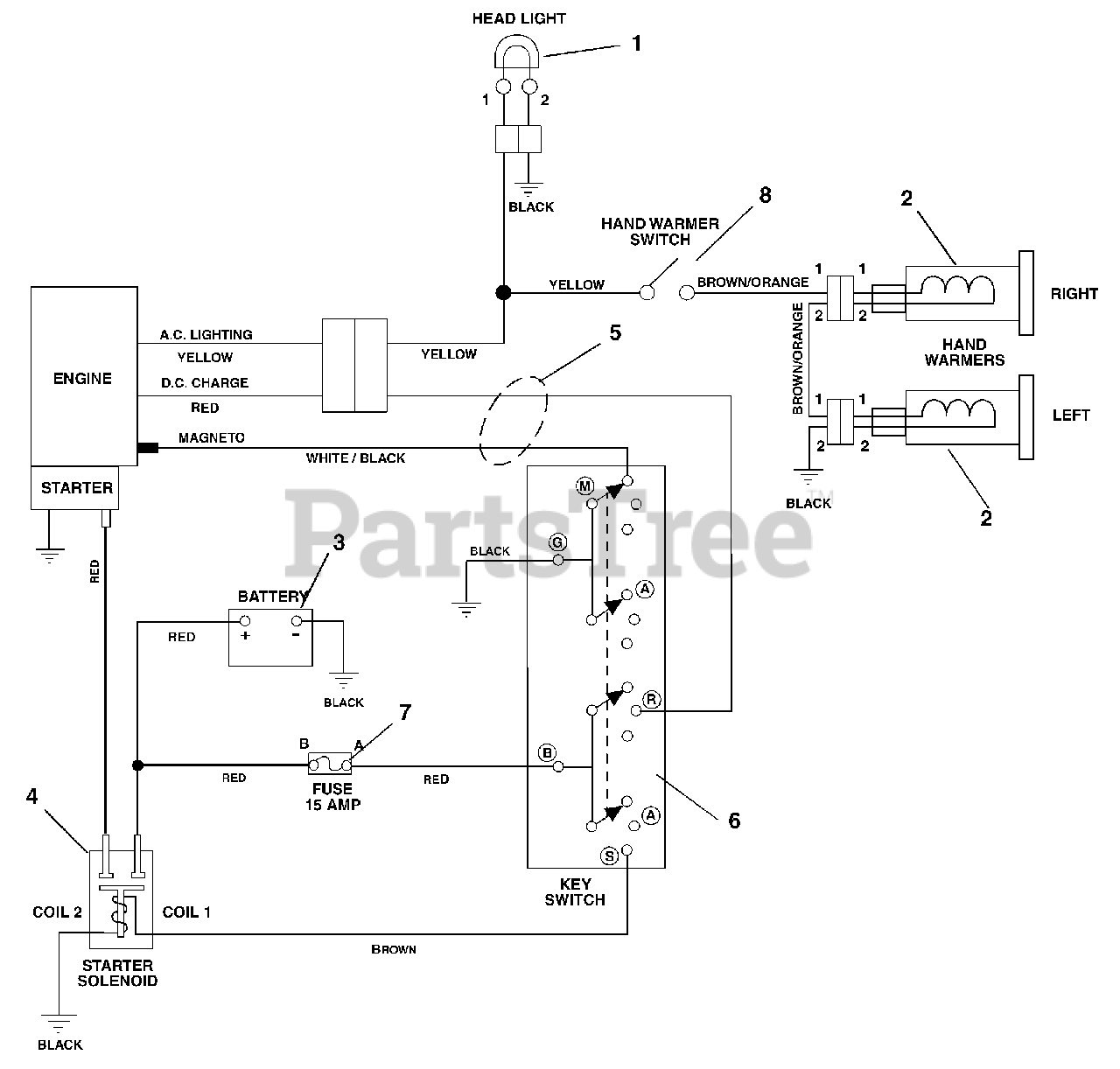

Wiring Diagram Parts Diagram

  • Title
1

Ariens 02485000

HEADLAMP, OVAL W/ 1156 BULB
(Superseded to 52423200)

$52.99

$

Usually ships in 4-12 days

0

2

Ariens 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$46.99

$

In Stock, only 2 left!

0

3

Battery

Note: Recommend 340 to 350 CCA at 0°F. Size U1R or U1L

$

$

Not available

4

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

5

Ariens 02494300

HARNESS, WIRING-LT,HG,12V

$

$

Not available

6

Ariens 52709300

SWITCH ASSEMBLY

$56.99

$

In Stock, Qty 5

0

7

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

8

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0
