924126 (ST 11526 DLE) - Ariens 26" Snow Blower, 11.5hp Tecumseh (SN: 000101 & Above) Wheels And Axle Parts Diagram

26" Snow Blower, 11.5hp Tecumseh

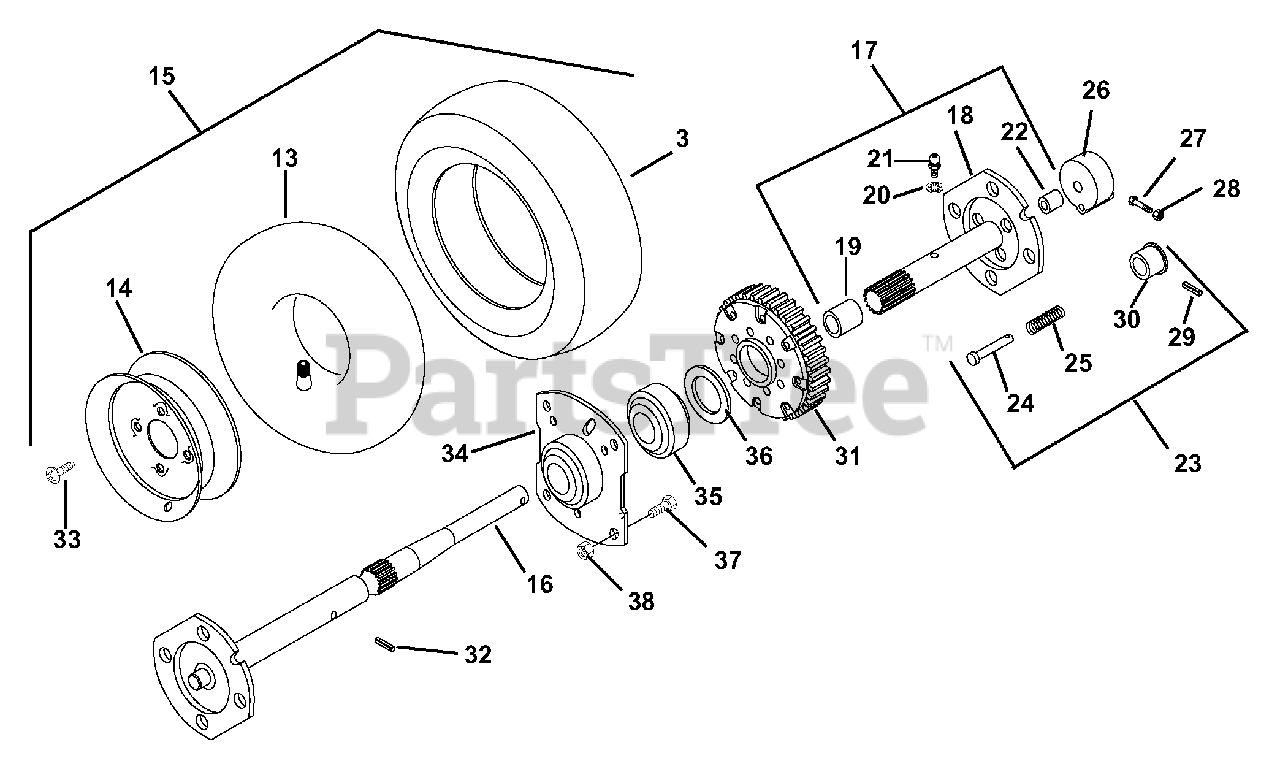

Wheels And Axle Parts Diagram

  • Title

3

Ariens 07121800

TIRE 4.80-8 NHS

Note: (124, 125,126, 127, 335, 337, 336)

$74.99

$

Usually ships in 4-12 days

0

3

Ariens 07121600

TIRE 16X6.50-8 SNO-HOG TREAD
(Superseded to 07124000)

Note: (128, 338, 516, 517, 518)

$

$

Not available

13

Ariens 07103700

TUBE

Note: (125, 124, 126, 127, 335, 336, 337)

$14.99

$

In Stock, only 1 left!

0

13

Ariens 07108700

TUBE

Note: (128, 338, 516, 517, 518)

$34.99

$

Usually ships in 4-12 days

0

14

Ariens 07100020

WHEEL, 4.80-8 SILVER

Note: (124, 126, 127, 335, 336, 337)

$

$

Not available

14

Ariens 07100021

WHEEL, 6.50-8 SILVER

Note: (516, 517, 518)

$

$

Not available

15

Ariens 07100017

T/WHL ASSY 16X4.80-8 SNO SILVR

Note: (124, 126, 127, 335, 337, 336)

$136.99

$

Usually ships in 4-12 days

0

15

Ariens 07100018

T/WHL ASSY 16X6.50-8 SNO SILVR

Note: (516, 517, 518)

$

$

Not available

16

Ariens 00296551

AXLE, RH

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$277.99

$

Usually ships in 4-12 days

0

17

Ariens 52419700

AXLE, LH-ASSEMBLY

Note: (Contains Items 18-22); (124, 126, 127, 335, 336, 337, 516, 517, 518)

$206.99

$

Usually ships in 4-12 days

0

18

Ariens 00296651

AXLE, LH

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$129.99

$

Usually ships in 4-12 days

0

19

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$17.99

$

In Stock, only 1 left!

0

20

Ariens 06307000

WSHR-LK .250X.047 LT YWZC

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

22

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$13.99

$

In Stock, Qty 9

0

23

Ariens 52405900

LOCKOUT HUB ASSEMBLY

Note: (Contains Items 24-25, 29, 30); (124, 126, 127, 335, 336, 337, 516, 517, 518

$135.99

$

In Stock, only 1 left!

0

24

Ariens 01037400

PIN

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$

$

Not available

25

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$

$

Not available

26

Ariens 01037200

LOCKOUT HUB

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$85.99

$

Usually ships in 4-12 days

0

27

Ariens 05948100

BLT-HEX .25-20X2.0 PL GR8 YWZC

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$0.99

$

In Stock, Qty 5

0

29

Ariens 05803200

PIN-ROLL .093X1.00

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$0.99

$

Usually ships in 4-12 days

0

30

Ariens 01037500

KNOB

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$53.99

$

Usually ships in 4-12 days

0

31

Ariens 52405300

DIFFERENTIAL ASSEMBLY

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$610.99

$

Usually ships in 4-12 days

0

32

Ariens 05803000

PIN-ROLL .188X1.50

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$0.99

$

In Stock, Qty 18

0

32

Ariens 05803000

PIN-ROLL .188X1.50

Note: (125, 128, 338)

$0.99

$

In Stock, Qty 18

0

33

Ariens 07416900

SCR-TAP .500-20X.62 HH YWZC
(Superseded to 07001825)

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$13.99

$

In Stock, only 3 left!

0

34

Ariens 02457859

BEARING RETAINER

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$

$

Not available

35

Ariens 05417700

BRG-BALL 1.13X2.19X.63

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$27.99

$

In Stock, Qty 11

0

36

Ariens 06437400

WSHR-FL-STL 1.140X1.718X.134YZ

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$5.99

$

Usually ships in 4-12 days

0

37

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$3.99

$

In Stock, Qty 20+

0

38

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: (124, 126, 127, 335, 336, 337, 516, 517, 518)

$0.99

$

In Stock, Qty 20+

0
