924125 (ST 11528 LE) - Ariens 28" Snow Blower, 11.5hp Tecumseh (SN: 000101 & Above) Gear Case - Aluminum Parts Diagram

28" Snow Blower, 11.5hp Tecumseh

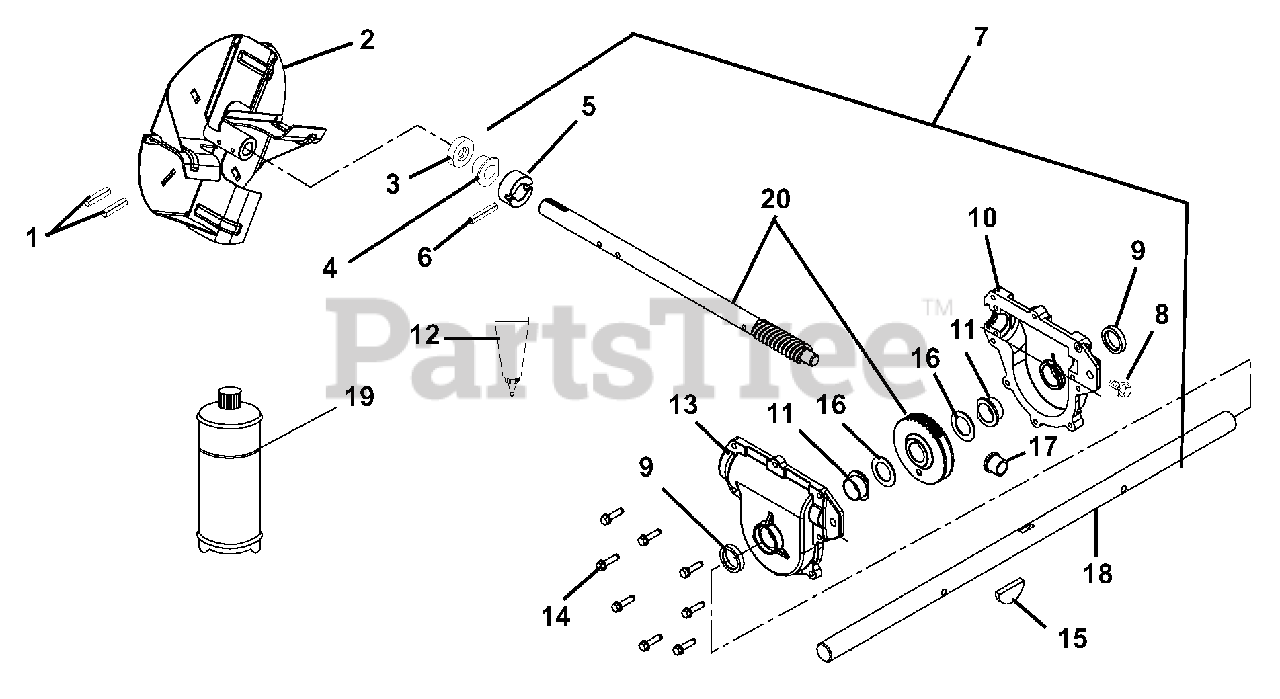

Gear Case - Aluminum Parts Diagram

  • Title
1

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00258251

IMPELLER-14" 4 BLADE

$232.99

$

Usually ships in 4-12 days

0

3

Ariens 05600001

SEAL-OIL .875X1.375X.25 RBR OD

$5.99

$

In Stock, Qty 20+

0

4

Ariens 05500008

BSHG-FLG .876 X 1.500 X .750

$10.99

$

In Stock, Qty 12

0

5

Ariens 00255100

THRUST COLLAR, .875" ID

$6.49

$

In Stock, Qty 11

0

6

Ariens 05806800

PIN-GRV .250X1.50 TP E

$3.49

$

In Stock, Qty 11

0

7

Ariens 52419400

GEAR CASE, ALUM-LARGE 28"

Note: (Contains Items 3-6, 8-19) (924125)

$373.99

$

Usually ships in 4-12 days

0

7

Ariens 52419500

GEAR CASE, ALUM-LARGE 32"

Note: (Contains Items 3-6, 8-19) (924128, 338)

$339.99

$

Usually ships in 4-12 days

0

8

Ariens 07417000

SCR-TAP .38-16X.75 ROLOK YZ WX
(Superseded to 07400201)

$3.49

$

In Stock, only 1 left!

0

9

Ariens 05618800

SEAL-OIL 1.000X1.375X.250

$11.99

$

In Stock, Qty 20+

0

10

Ariens 00254100

GEARCASE, ALUMINUM, LH
(Superseded to 52104900)

$86.99

$

Usually ships in 4-12 days

0

11

Ariens 05520500

BSHG-FLG 1.003X1.5X.625

$9.99

$

In Stock, Qty 16

0

12

Ariens 00925700

LOCTITE GASKET 518--850CC CRTG

$

$

Not available

13

Ariens 00254000

GEARCASE, ALUMINUM, RH

$96.99

$

Usually ships in 4-12 days

0

14

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

16

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

17

Ariens 05500007

BSHG-FLG .629 X 1.000 X .750

$10.99

$

In Stock, only 3 left!

0

18

Ariens 00276100

SHAFT, RAKE-32"

Note: (924128, 338)

$140.99

$

Usually ships in 4-12 days

0

18

Ariens 00275000

SHAFT, RAKE-28"

Note: (924125)

$137.99

$

Usually ships in 4-12 days

0

19

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (9 oz. capacity)

$18.99

$

In Stock, Qty 20+

0

20

Ariens 52419600

ASSY, WORM SHAFT & GEAR

$162.99

$

In Stock, only 1 left!

0
